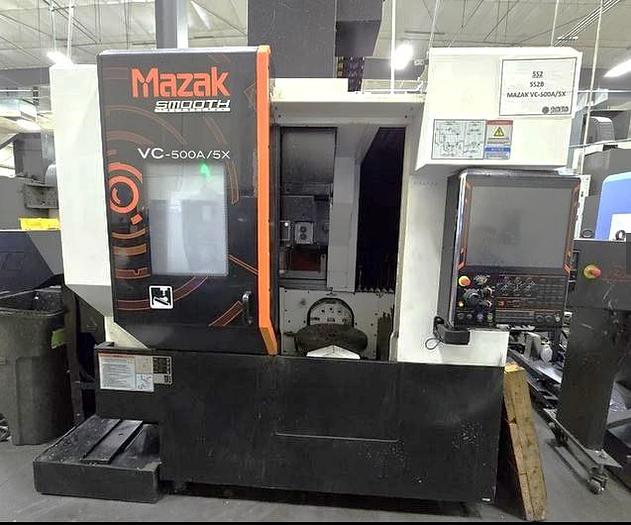

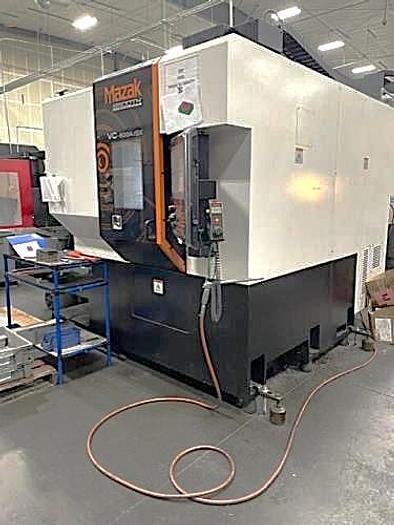

2019 Mazak VC-500A-5X

2019 Mazak VC-500A-5X

$99,500 (USD)

Kansas

orCall (863) 439-6066

Description

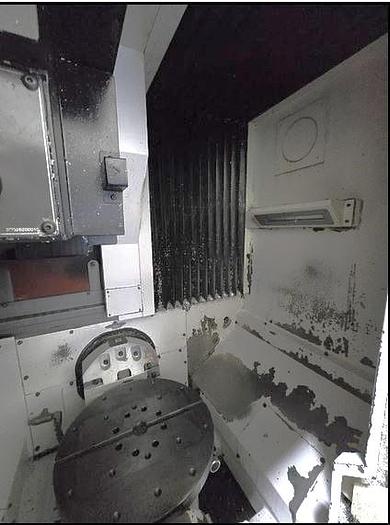

Trunnion Style 5th Axis Table

Rotating 4th Axis Table

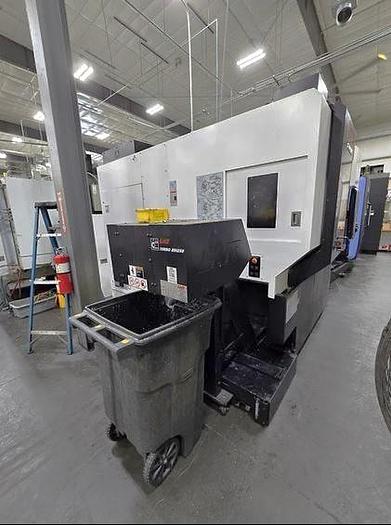

Chip Conveyor - LNS Turbo MH250

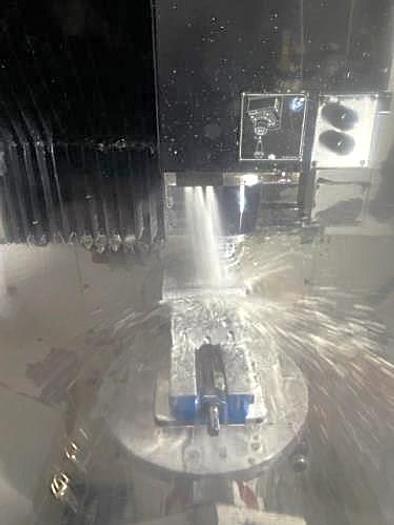

Coolant Through the Spindle

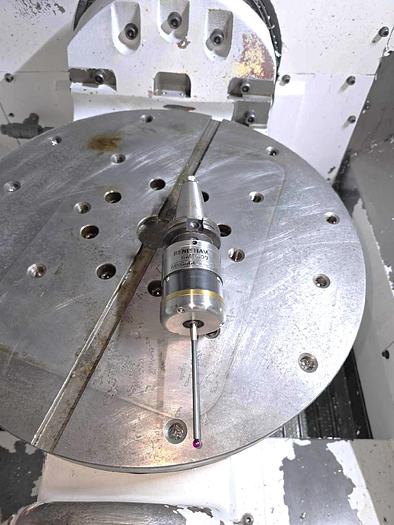

Mazak Monitoring System B - Part Probing with Renishaw RMP600 Probe

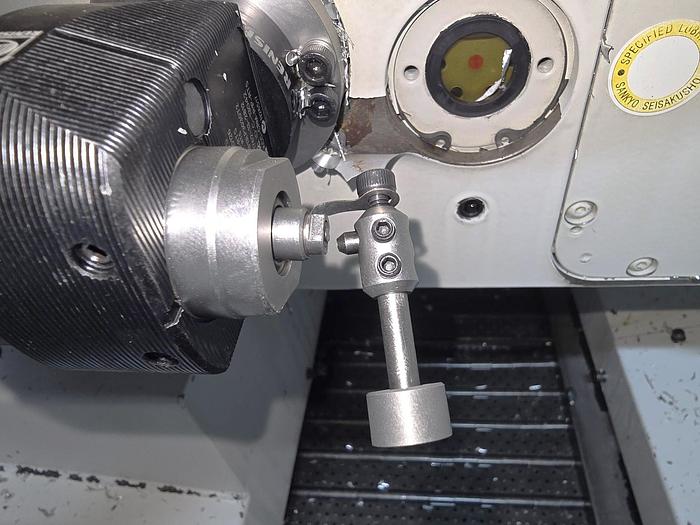

Automatic Tool Length Measurement - Tool Probing (will replace stylus)

USB Port Interface

Card Interface

RS 232 Port Interface

Rigid Tapping

Head Oil Chiller Cools Both Head and Table

Roller Gear Cam Drive for Rotary/Tilt Table for Rigidity and Positioning Accuracy for B Axis

Direct Drive Motor for C Axis

All Available Manuals

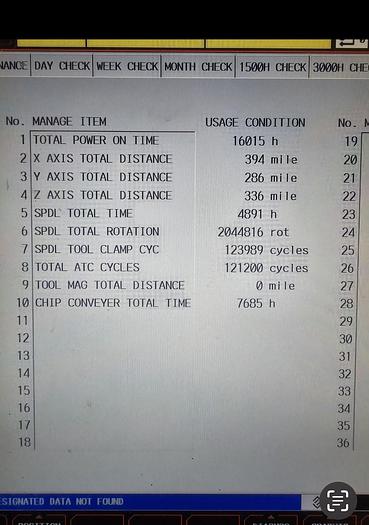

**Machine Power On Time 16,015 Hours**

**Total Spindle Time 4,891 Hours**

Specifications

ManufacturerMazak
ModelVC-500A-5X
Year2019
ConditionUsed
Stock Number119436

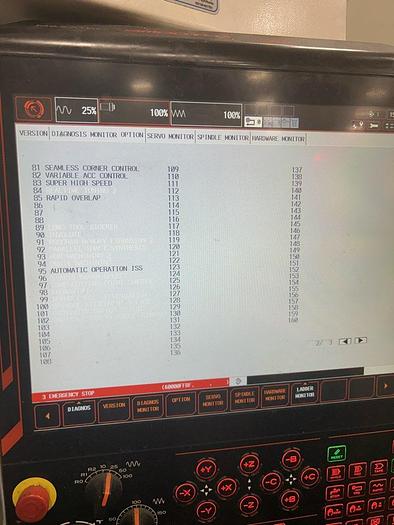

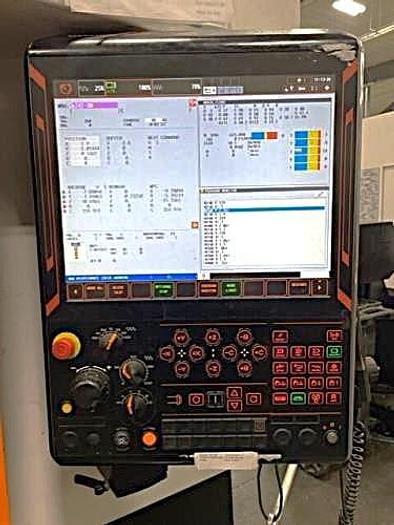

Machine ControlMazatrol SmoothX Control
Table Size19.68" Diameter
Maximum Workpiece Diameter / Height19.68" / 12"
Maximum Table Load440 lbs
X-Axis Travel19.88"
Y-Axis Travel19.88"
Z-Axis Travel20.07"
B-Axis Tilt Movement+110 Degrees to -110 Degrees
C-Axis Rotation360 Degrees
Spindle Speed12,000 RPM
Spindle TaperCAT 40 Big Plus
Spindle Motor25 HP
Tool Magazine Capacity30 Station Tool Changer
Maximum Tool Diameter / Length / Weight3.15"/ 10.23" / NA
Rapid Traverse Rates1181 IPM
Machine Dimensions LxWxH117.5"x78.7"x125"
Machine Weight10,000 lbs.
