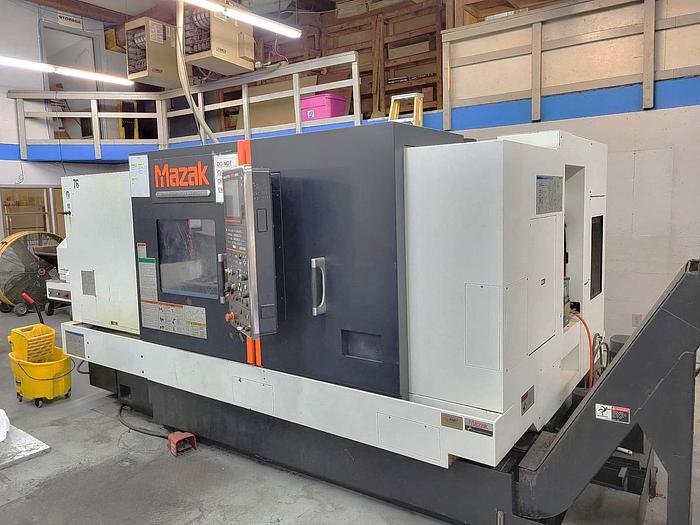

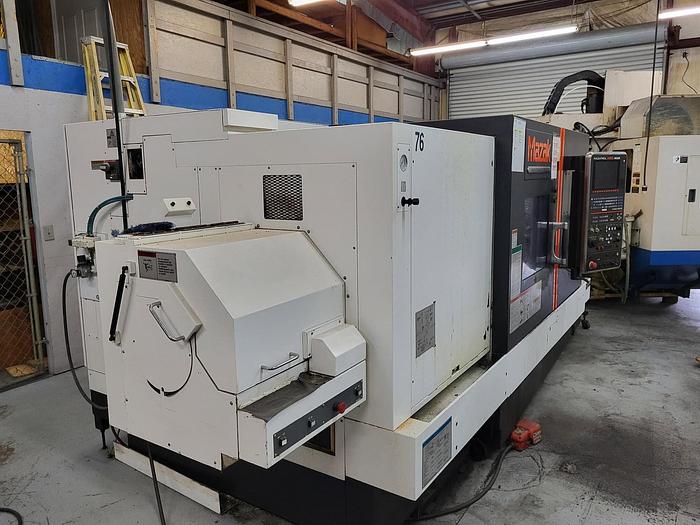

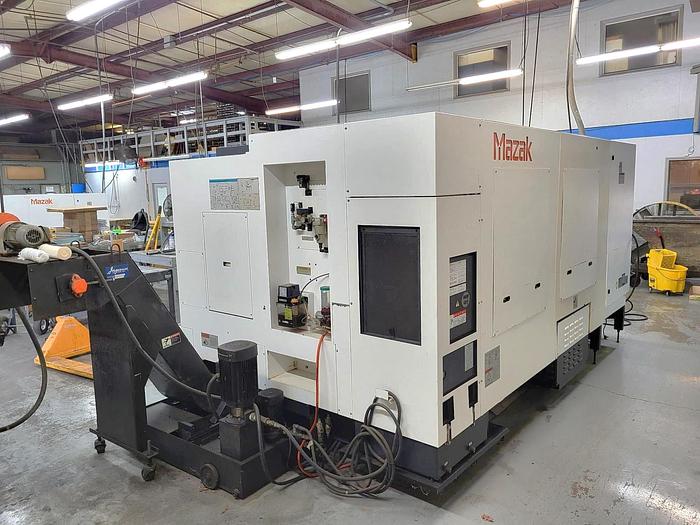

2012 Mazak Nexus QTN 450-II/1000
No longer available
2012 Mazak Nexus QTN 450-II/1000
$99,500 (USD)
Location:Georgia
Description
21" 3 Jaw Air Chuck

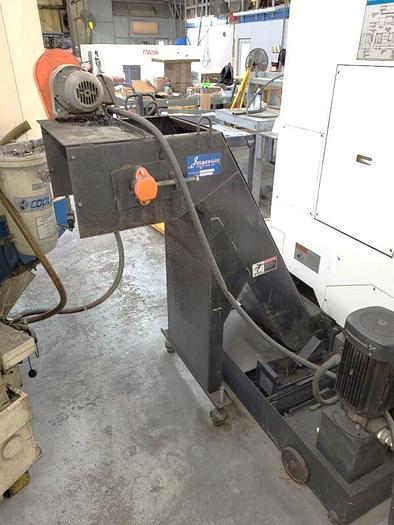

Chip Conveyor

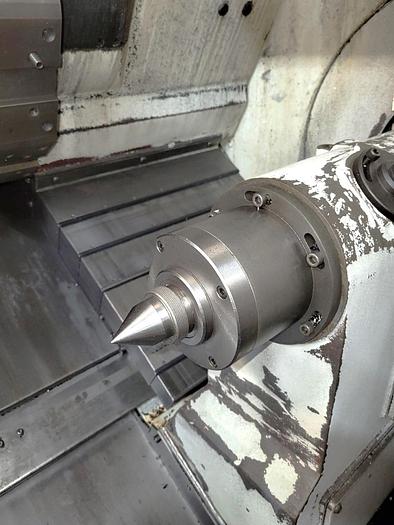

Programmable Tailstock
Tool Presetter
EIA/ISO Programming 12.1" Color LCD USB Interface (2 Ports) LAN Port Interface
RS 232 Port Interface User Macro Multi Tap Transformer
Tool Path Storage
Coolant System with Tank & Pump Windows XP Operation System All Available Manuals All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-II/1000 |
| Year | 2012 |
| Condition | Used |

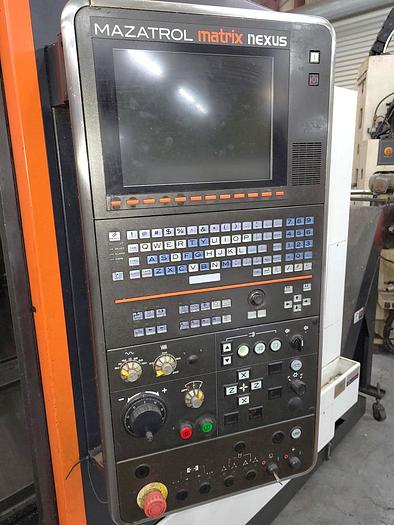

| Control | Mazatrol Matrix Nexus |

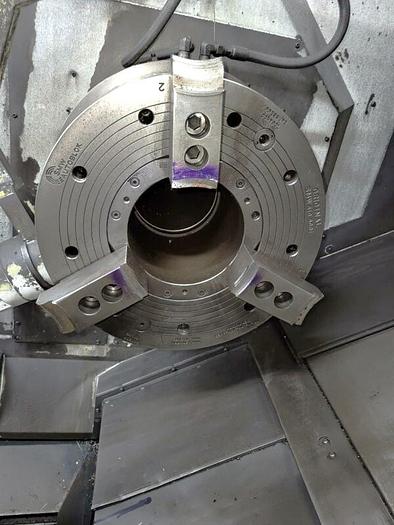

| Chuck Size | 21" SMW Autoblok 3 Jaw Air Chuck |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 40.3" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 42.13" |
| Spindle Nose / Spindle Bore | A2-15" / 7.1" |
| Spindle Speeds | 2,000 RPM - Geared |
| Spindle Motor | 50 HP |

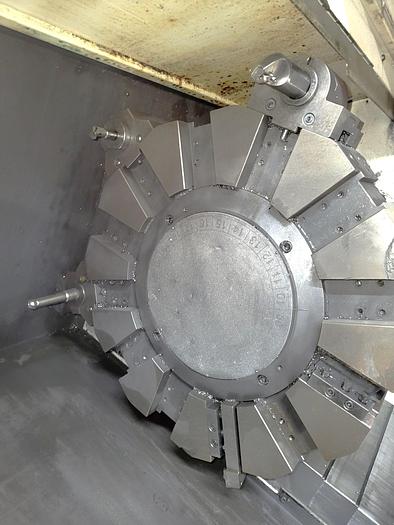

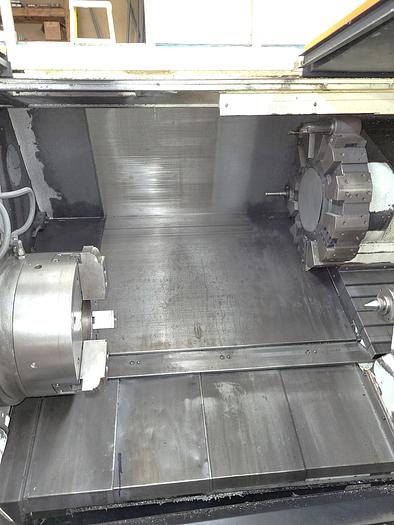

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 40.375" / MT #5 |
| Machine Dimensions | 178"x99"x84" |
| Machine Weight | 21,283 lbs. |
