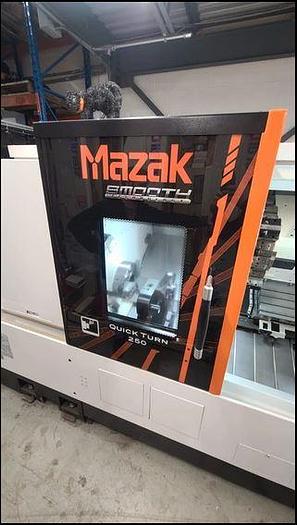

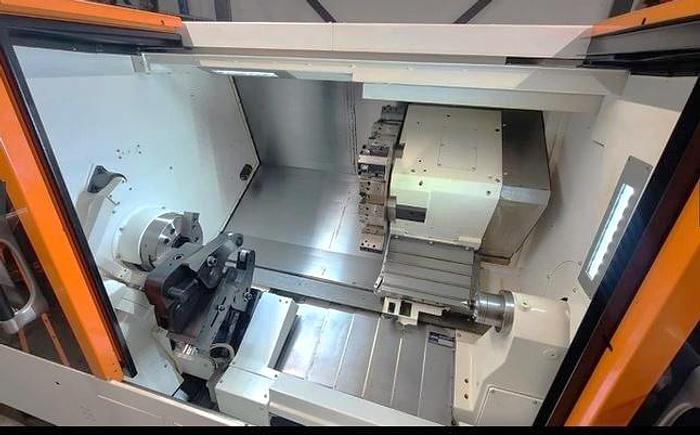

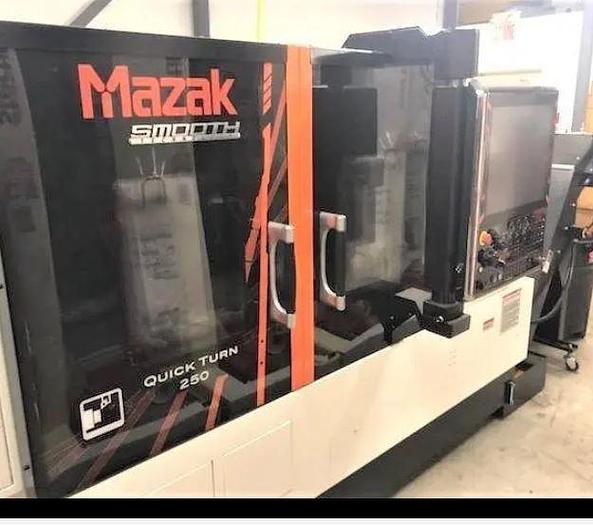

2020 Mazak QT 250/1000
2020 Mazak QT 250/1000
Contact us for price
Location:Montana
Description
LONG BED Version with 40" Centers
10" 3 Jaw Hydraulic Chuck

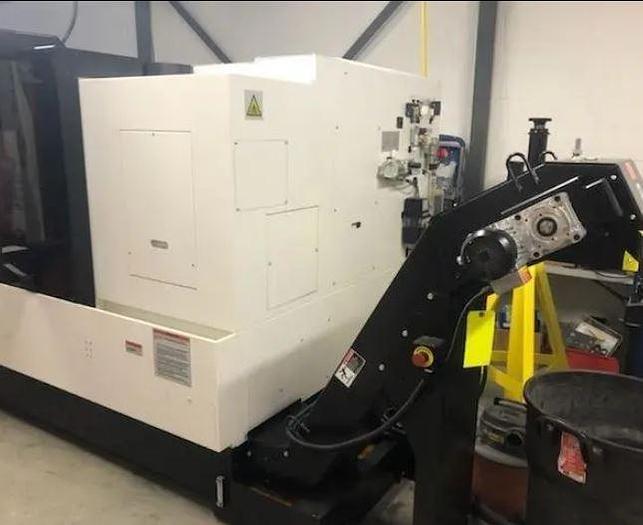

Chip Conveyor

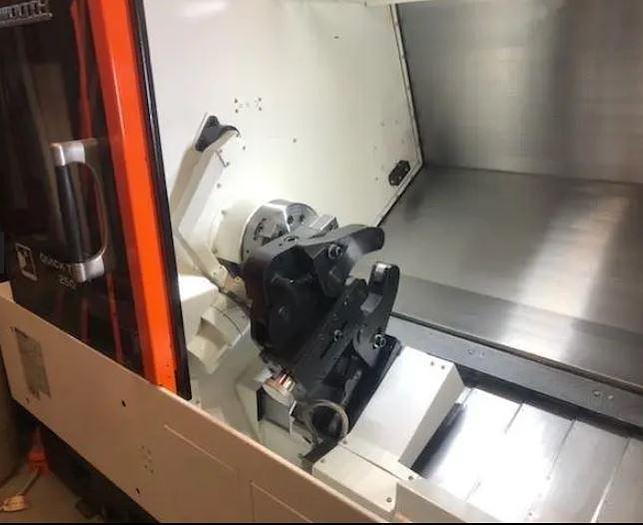

LNS Manual 3 Point Steady Rest with .75" - 8" Capacity
Automatic Tool Eye
Programmable Tailstock
High Pressure Coolant
EIA/ISO Input Function
Re-Threading Function
Mazak Steady Rest Prep
External Data Input/Output
Pitch Error Compensation Input 1
Tilted Work Plane
Absolute Positioning System
Inch/Metric Conversion
8 MB Program Storage
USB Port Inteface
LAN Port Interface
PCM CIA Interface (2 slots)
RS232 Port Interface
Hydraulic Pressure Interlock
Chuck Open/Close Confirmation

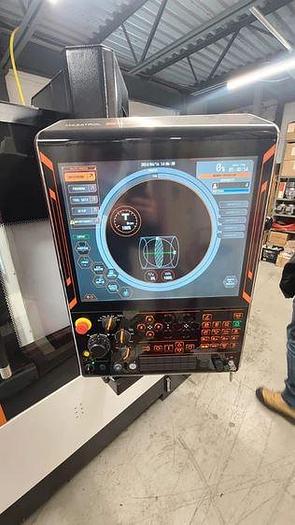

19" Color LCD Monitor
Operator Door Interlock
Tool Path Solid Model Multi-Tap Transformer Coolant Tank with Pump All Available Manuals
All Available Tooling
**Auto Operation Hours 5,617**
**Total Cutting Hours 3,675**
Specifications
| Manufacturer | Mazak |
| Model | QT 250/1000 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119429 |
| Control | Mazatrol SmoothC Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 24.04" |
| Maximum Cutting Diameter | 13.78" |
| Maximum Machining Length | 39.10" |
| X-Axis Travel | 8.75" |
| Z-Axis Travel | 40.75" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.58" / 3.03" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 35 HP |

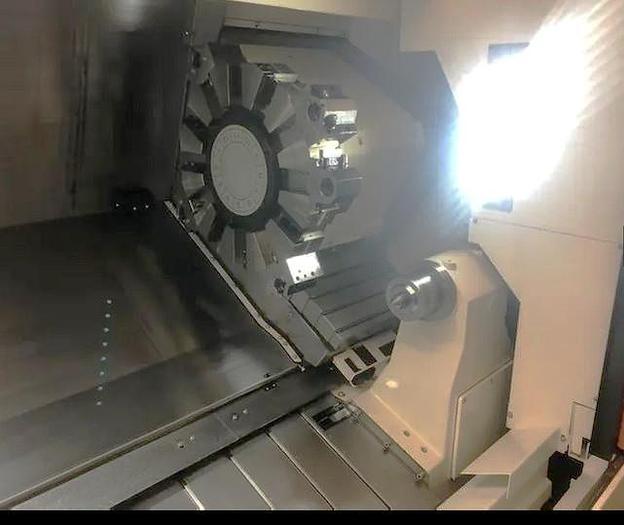

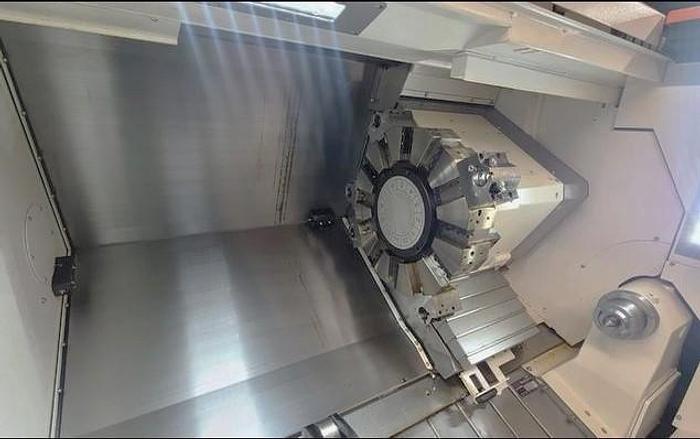

| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 1181 / 1299 IPM |
| Tailstock Body Travel / Center | 42.13" / MT#4 |
| Machine Dimensions LxWxH | Not Available |
| Machine Weight | 13,800 lbs. |
