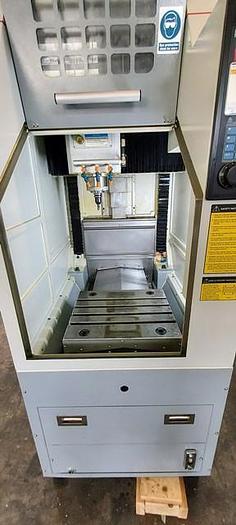

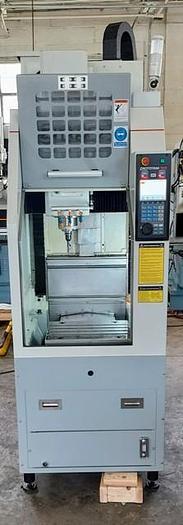

2019 Southwestern Industries Trak 2OP-M11

No longer available

2019 Southwestern Industries Trak 2OP-M11

Location:Michigan

Description

8 Station Tool Changer

Indexer Interface

Minimal Floor Space

Conversational Programming

G Code Compatible

(4) Ball Lock Receivers in Table

3 Axis Simultaneous

Electronic Handwheel

Limit Switches

Coolant Tank with Pump

Work Lamp

Auto Lube Pump

Networking

(2) USB Port Interfaces

RS 232 Port Interface

Wired 220V / 3 Phase

All Available Manuals

Show All

Specifications

ManufacturerSouthwestern Industries Trak
Model2OP-M11
Year2019
ConditionUsed
Stock Number119428
Machine ControlProtoTrak TMX Control
Table Size18" x 15"
Maximum Table Load500 lbs
X-axis travel14"
Y-Axis Travel18" (12" of Machining Travel)
Z-Axis Travel17"
Spindle TaperBT #30
Spindle Speed6,000 RPM
Spindle Motor3 HP
Distance Spindle Nose to Table Top2.75" - 20.25"
Tool Magazine Capacity8 Station Tool Changer
Rapid Traverse Rates X, Y / Z600 IPM / 600 IPM
Minimum Height to Fit Through Doorway92"
Machine Dimensions LxWxH30.5" x 52" x 101"
Machine Weight3,175 lbs.
