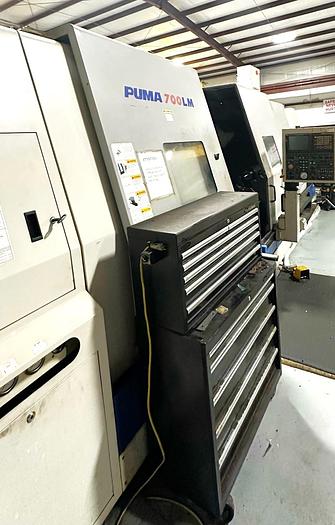

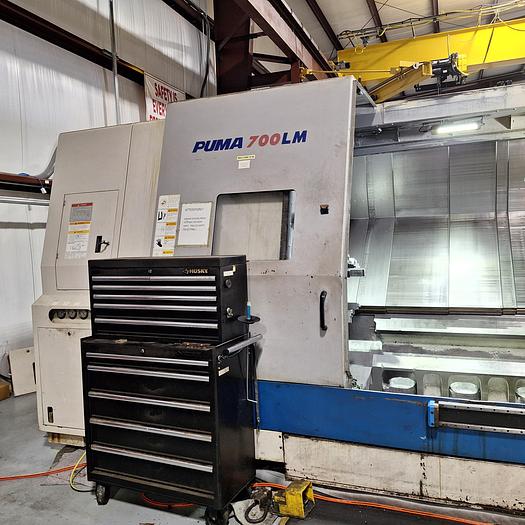

2005 Daewoo Puma 700LM with Milling
2005 Daewoo Puma 700LM with Milling
Contact us for price
Location:Alabama
orCall (863) 439-6066
Description
Milling Capability
C Axis Spindle Rotation

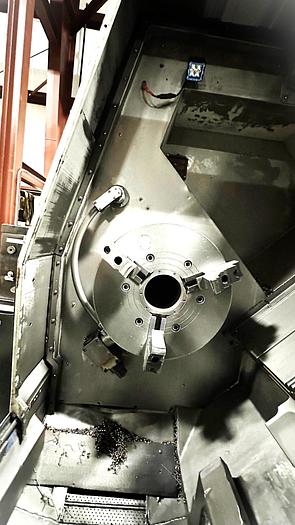

24" 3 Jaw Hydraulic Chuck
Tool Presetter
Chip Conveyor

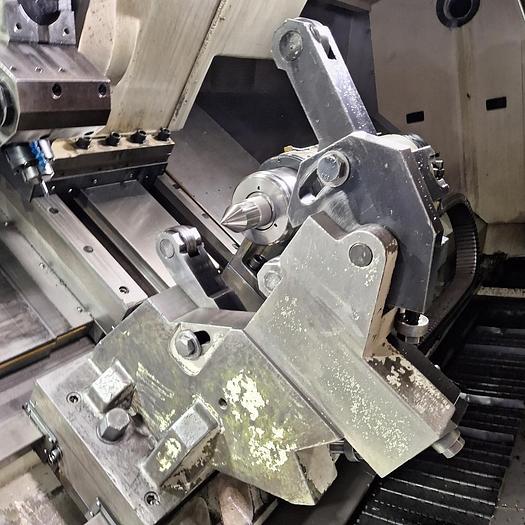

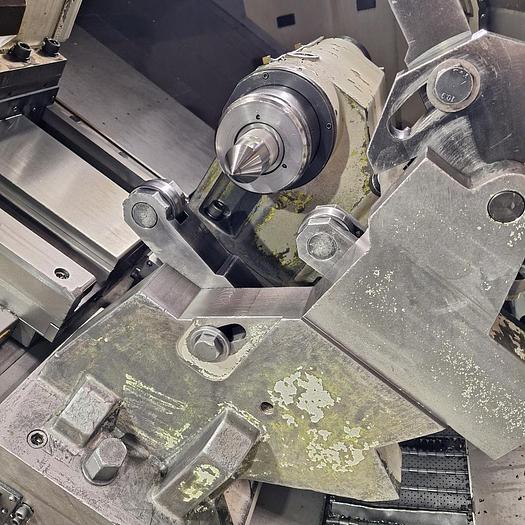

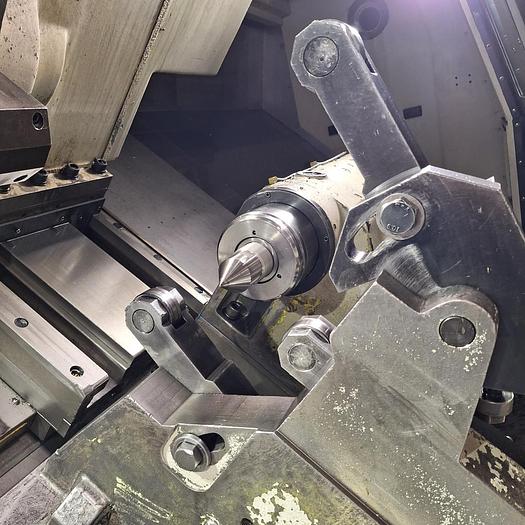

Tailstock Drag Type with Hydraulic Quill

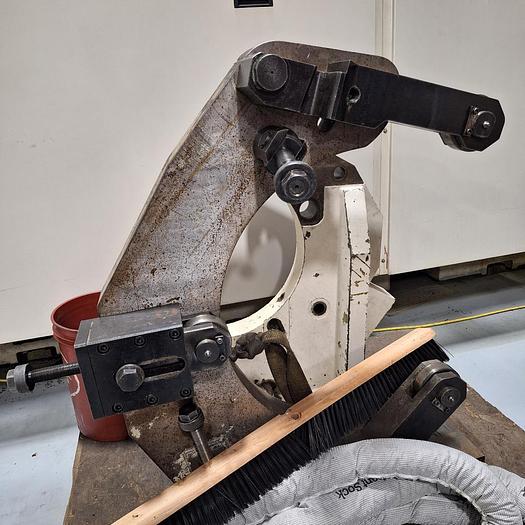

Manual Steady Rest
Mist Collector
RS 232 Port Interface
Wired 200/220 Electrics
All Available Manuals
All Available Tooling includes (3) Live Tool Holders

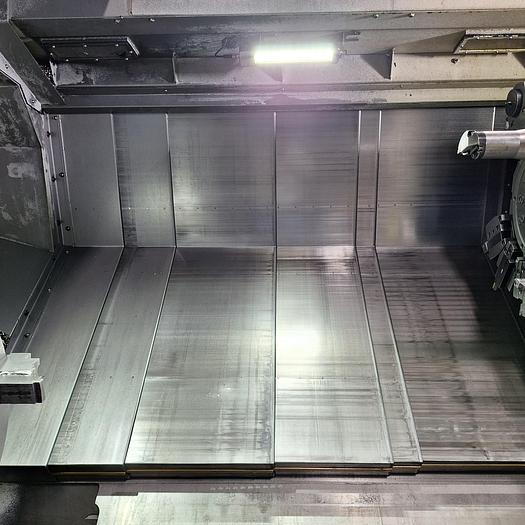

Recently replaced Hydraulic unit & Way Covers
**Run Time Hours 13,547**
**New Machine Is Expected To Be Delivered In August, Machine Will Be Releasable At That Time**
Specifications
| Manufacturer | Daewoo |
| Model | Puma 700LM with Milling |
| Year | 2005 |
| Condition | Used |
| Stock Number | 119421 |

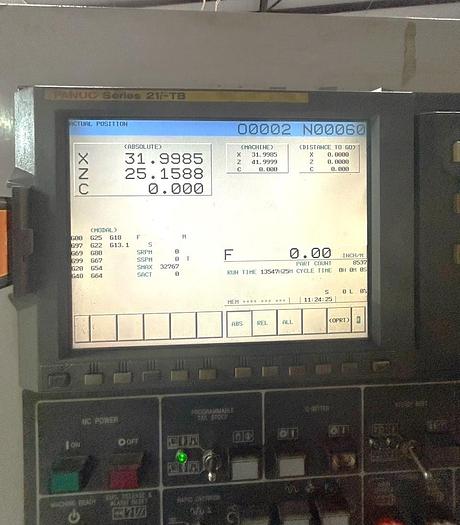

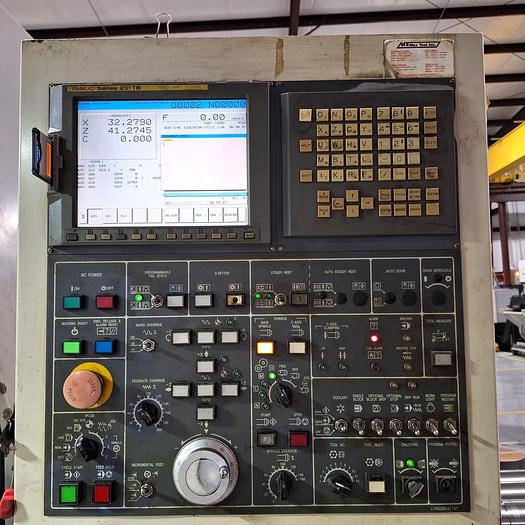

| Machine Control | Fanuc 21i-TB Control |
| Chuck size | 24" Hydraulic Chuck w/ 6.5" Hole |
| Maximum swing | 40.58" |
| Maximum turning diameter | 35.4" |
| Maximum turning length | 126" |
| Distance between centers | 122" |
| Bar capacity | 6.46" |
| X axis travel | 24" |
| Z axis travel | 120" |
| Spindle nose / spindle bore | A1-15" / 7.13" |
| Spindle speed | 3 - 1500 RPM (3 Ranges) |
| Spindle motor (30 min / cont) | 60 HP / 50 HP |

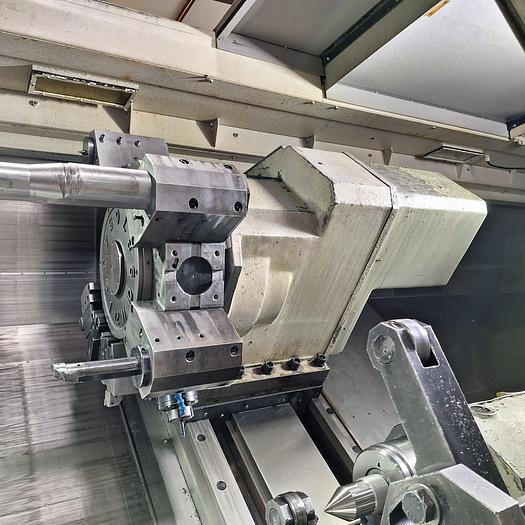

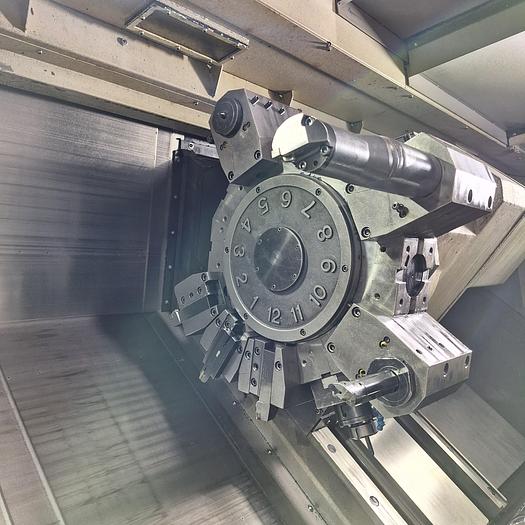

| Turret type | 12 Position Turret |
| Rotary tool speed | 10 - 1,500 RPM |
| Rotary tool motor | 15 HP |
| Rapid traverse rates x, z | 472 IPM / 393 IPM |
| Tailstock quill travel | 5.9" |
| Machine dimensions | 336" x 96" x 102" |
| Machine weight | 47,300 lbs. |
