2016 Doosan VC-630 5-Axis Trunnion Style Machine with High Pressure Coolant Thru Spindle, Probing
No longer available
2016 Doosan VC-630 5-Axis Trunnion Style Machine with High Pressure Coolant Thru Spindle, Probing
Location:Texas
Description

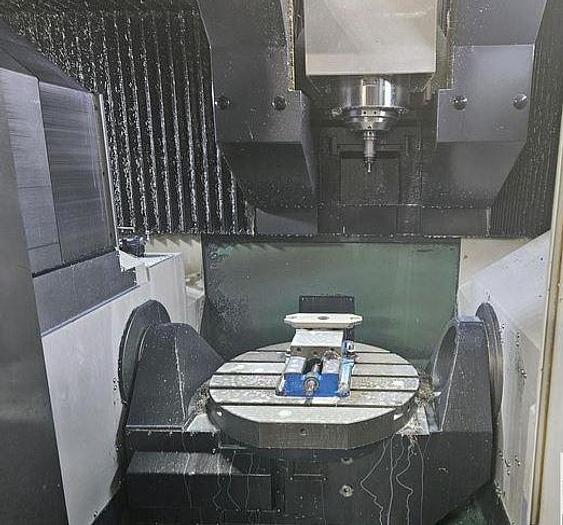

Trunnion Style 5th Axis Turn/Tilt Table
Coolant Through the Spindle - High Pressure 1,000 PSI
Renishaw Probing
Chip Conveyor
High Speed Machining
DSQ High Speed / High Precision Contour
81 Station Side Mounted Tool Changer
Easy Operation Package
Rigid Tapping

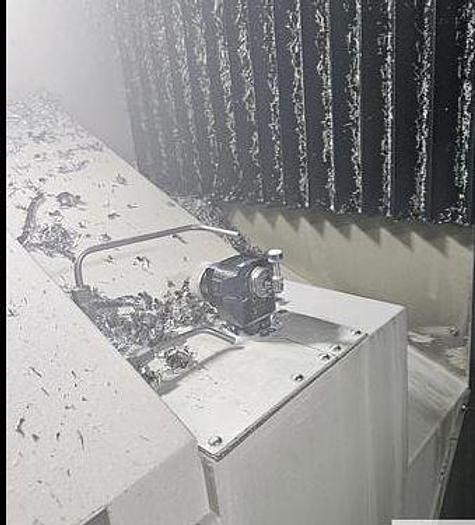

95 Gallon Coolant Tank & Pump
All Available Manuals
**Only 1,052 run time hours**
Specifications
| Manufacturer | Doosan |
| Model | VC-630 5-Axis |
| Year | 2016 |
| Condition | Used |
| Stock Number | 119418 |
| Table size | 24.8" |
| Maximum Weight on Table | 1,102 lbs |
| X-Axis Travel | 25.6" |
| Y-Axis Travel | 30.1" |
| Z-Axis Travel | 20.5" |
| A-Axis Travel | +30 Degrees / - 120 Degrees |
| C-Axis Rotation | 360 Degrees |
| Spindle Speed | 20,000 RPM |
| Spindle taper | HSK 63 |
| Spindle Motor | 30 HP |
| Tool Magazine Capacity | 81 Station Side Mounted Tool Changer |
| Rapid Traverse Rates X, Y / Z | 1,575 IPM, 1,575 IPM / 1,417 IPM |
| Machine Dimensions LxWxH | 180"x130"x126" |
| Machine Weight | 29,762 lbs |
