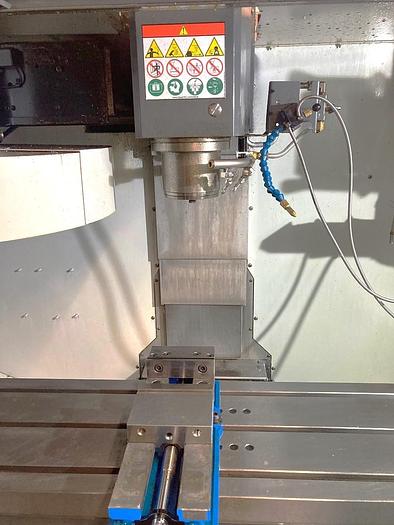

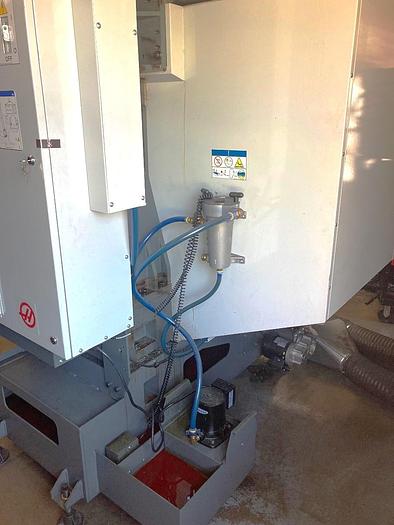

2020 Haas Mini Mill 2
No longer available
2020 Haas Mini Mill 2
$34,950 (USD)
Location:Illinois
Description
10 Station Tool Changer
Auger Style Chip Conveyor
Rigid Tapping
Coolant System with Tank & Pump
1 MB Programming Memory
15" Color LCD Monitor
Memory Lock Keyswitch
USB Port Interface
RS 232 Port Interface

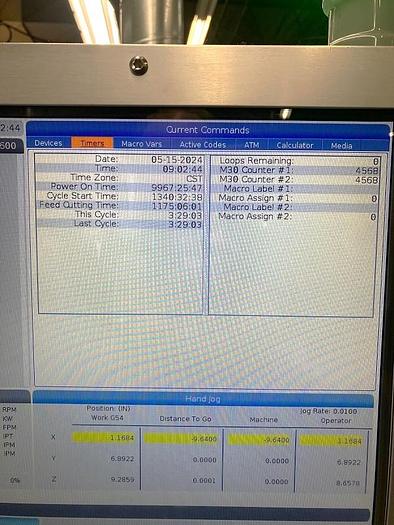

**Power On Hours 9,967**
**Cycle Start Hours 1,340**
**Feed Cutting Hours 1,175**
Specifications
| Manufacturer | Haas |
| Model | Mini Mill 2 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119406 |
| Machine Control | Haas CNC Control |
| Table Size | 40" x 14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 7.5 HP |
| Rapid Traverse Rates | 600 IPM |
| Tool Magazine Capacity | 10 Station Tool Changer |
| Distance Spindle Nose to Table Top | 4" - 18" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 5,100 lbs |
