2012 Okuma LT2000EX 2STMY
2012 Okuma LT2000EX 2STMY
$137,500 (USD)
Location:New York, NY
Description
Full C Axis Spindle Rotation .001 Degree
Live Milling/Drilling Capability
Dual Spindle Design
Dual Turret Design

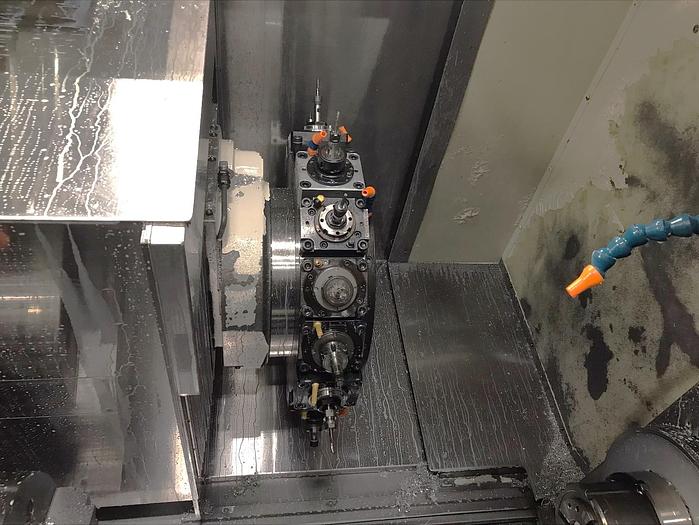

Y-Axis on Upper Turret
Auto Parts Catcher
Chip Conveyor

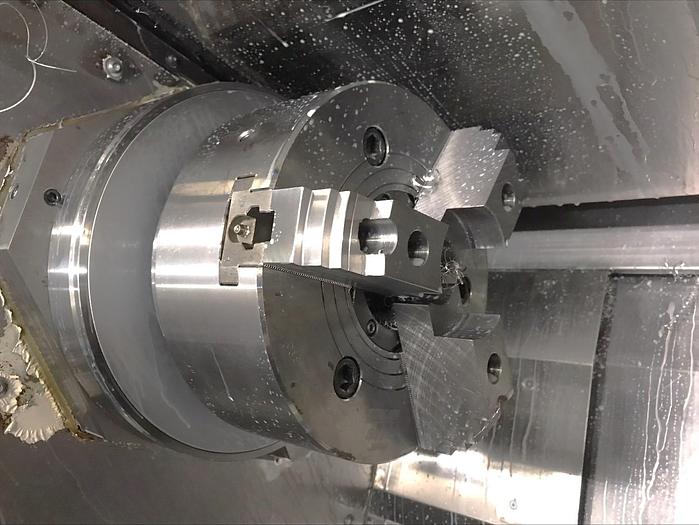

10" 3 Jaw Hydraulic Chuck on Main Spindle
Royal S-26 Collet Nose for Main Spindle

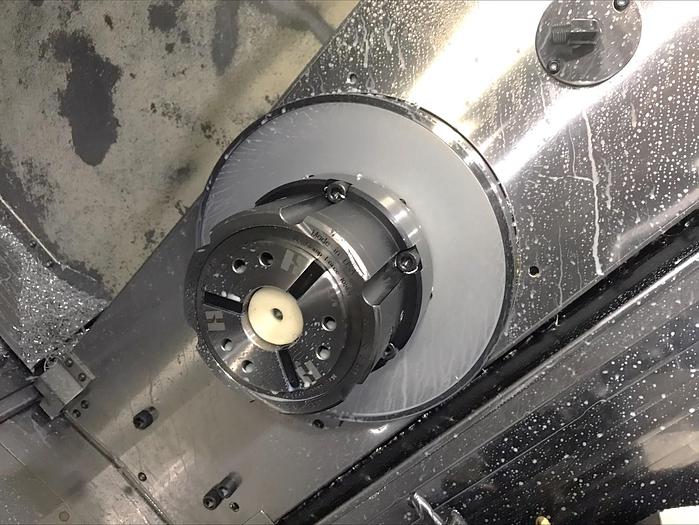

Royal QG-65 Collet Nose for Subspindle
Royal 16C Collet Nose for Subspindle
Spindle Cooler
High Coolant
Spindle Orientation
Custom API
Mac Man
Load Monitor
Tool Life Management
3D Animation
Profile Generation
Plane Conversion
Rigid Tapping
Helical Cuttting
Slant Y-Axis Upper NC Turret
Heavy Tooling
3 Color Machine Status Condition Lights
Card Interface
RS 232 Port Interface

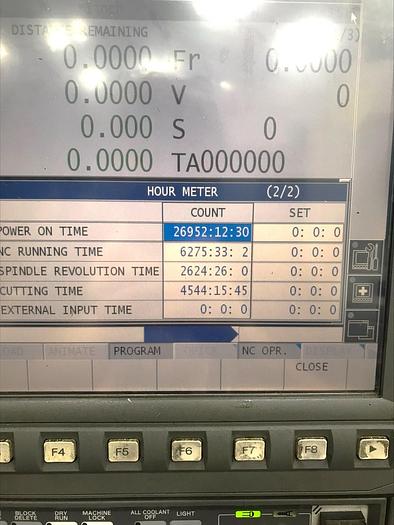

**NC Running Time 6,275**
**Cutting Time 4,544**
Tooling Includes:
(4) Radial Holders
(9) Axial Holders
**One owner machine, manufactured new in August of 2012, primarily cut aluminum**
Specifications
| Manufacturer | Okuma |
| Model | LT2000EX 2STMY |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119404 |
| Machine Control | Okuma OSP P200L HI-G Control |
| Maximum Swing over Bed | 15.75" |
| Maximum Turning Diameter | 8.27" |
| Maximum Turning Length | 15.12" |
| Maximum Distance Between Centers | 37.8" |
| X1 / X2 Axis Travel | 8.07" / 8.07" |
| Y-Axis Travel | 3.74" |
| Z1 / Z2 Axis Travel | 27.56" |
| C-Axis Rotation C1, C2 | .001, .001 |
| W-Axis Travel (Subspindle) | 29.92" |
| Spindle Nose 1, 2 | A2-6", A2-6" |
| Spindle Bores | 2.44" |
| Bar Capacity Both Spindles | 2.047" |
| Spindle Motor Both Spindles | 15 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 7.5 HP |
| Rapid Traverse Rates X-Axis | 1181 IPM |
| Rapid Travers Rates Z-Axis | 1575 IPM |
| Rapid Traverse Rate Y-Axis | 1260 IPM |

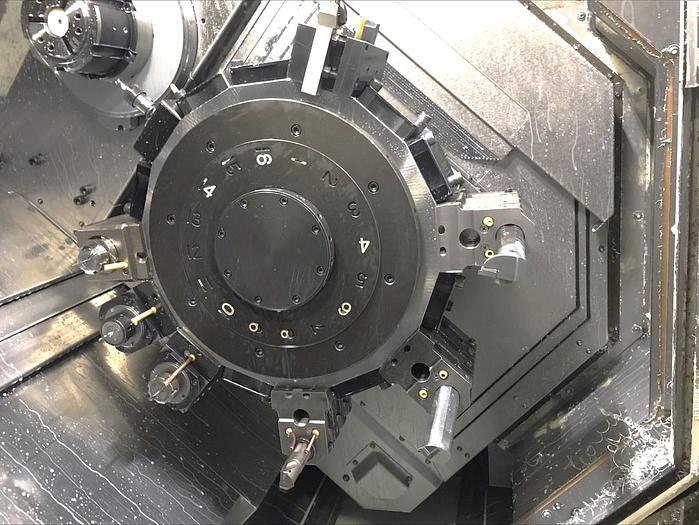

| Turrets | (2) 12 Station Turrets - M-V12 Type |
| Machine Weight | 21,560 lbs |
