2015 Haas TM-2P
No longer available
2015 Haas TM-2P
Location:Ohio
Description
Full Enclosure Sheet Metal Covers 10 Station Toolchanger Haas Wireless Intuitive Probing System (WIPS) with Tool and Part Probes
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System
Rigid Tapping
20 Gallon Coolant System with Tank & Pump Work Light Vector Drive Spindle Brushless Servos All Axis' Direct Belt Drive RS 232 Port Interface

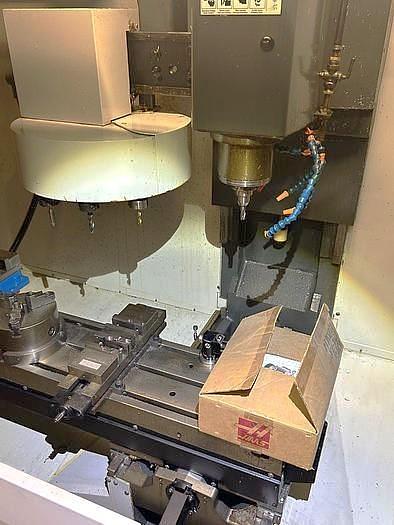

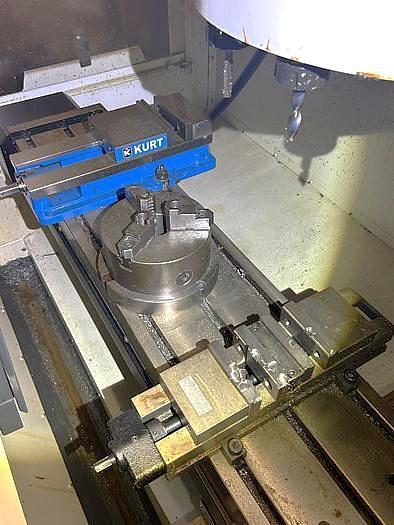

(2) Vises and Chuck on Table as Seen
Can be used with either single phase 240V or three phase 208V power

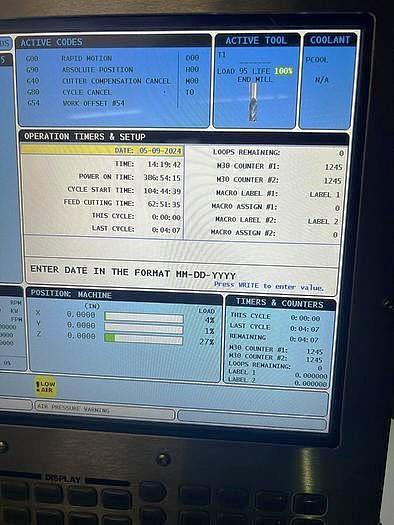

**Power On Hours 386**
**ONLY 62 Feed Cutting Hours**
Specifications
| Manufacturer | Haas |
| Model | TM-2P |
| Year | 2015 |
| Condition | Used |

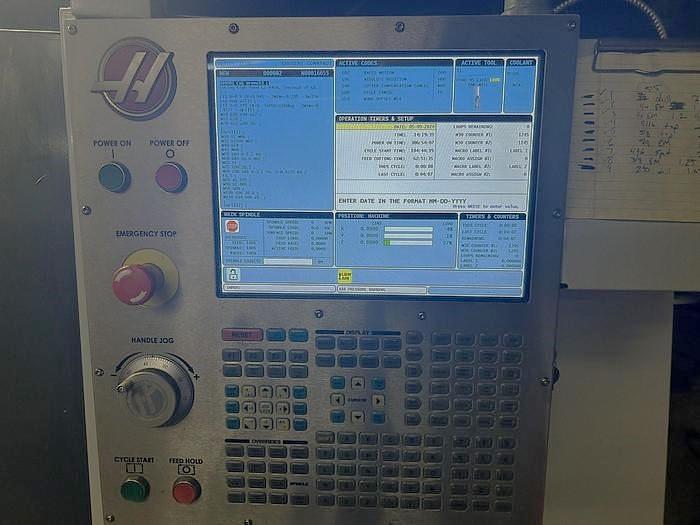

| Machine Control | Haas CNC Control |
| Table Size | 57.75"x10.5" |
| Maximum Table Load | 350 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 16" |
| Distance Spindle Nose to Table Top | 4"-20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 0 - 6,000 RPM |
| Spindle Motor | 7.5 HP |
| Tool Magazine Capacity | 10 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.5"/NA/12 lbs |
| Tool Change Time Chip to Chip | 5.7 Seconds |
| Rapid Traverse Rates | 400 IPM |
| Machine Dimensions LxWxH | 100"x64"x86" |
| Machine Weight | 4,000 lbs |
