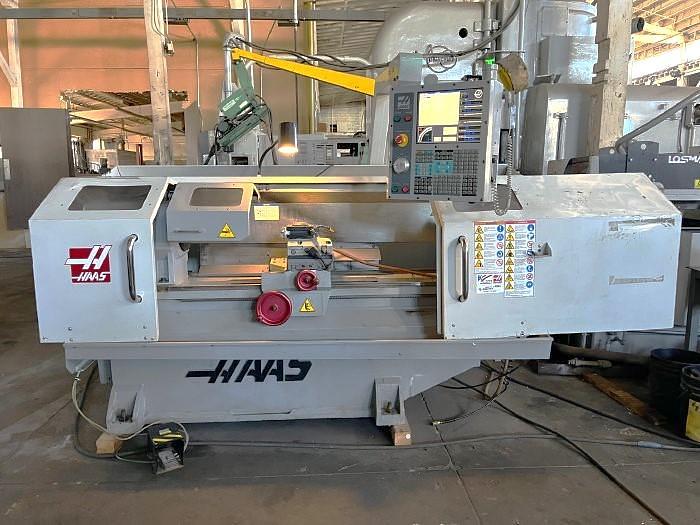

2008 Haas TL-2 w/ 3" Big Bore, 4 Station Indexable Turret, Tailstock, Hand Wheels, Runs Single or Three Phase Power
No longer available
2008 Haas TL-2 w/ 3" Big Bore, 4 Station Indexable Turret, Tailstock, Hand Wheels, Runs Single or Three Phase Power
$26,950 (USD)
Location:California
Description
5C Collet Nose

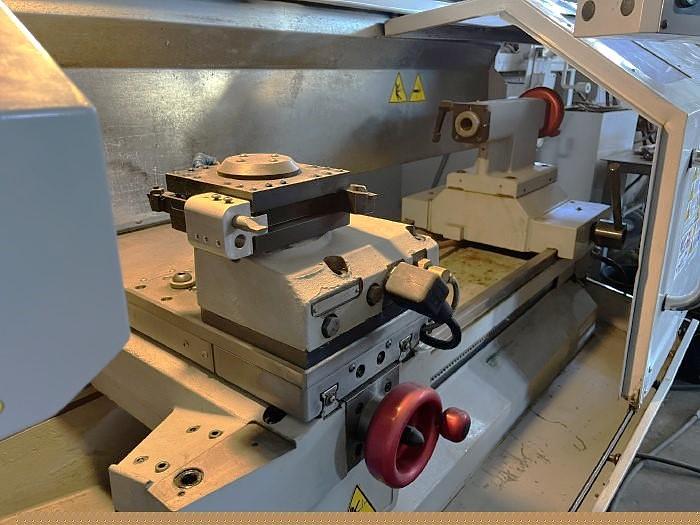

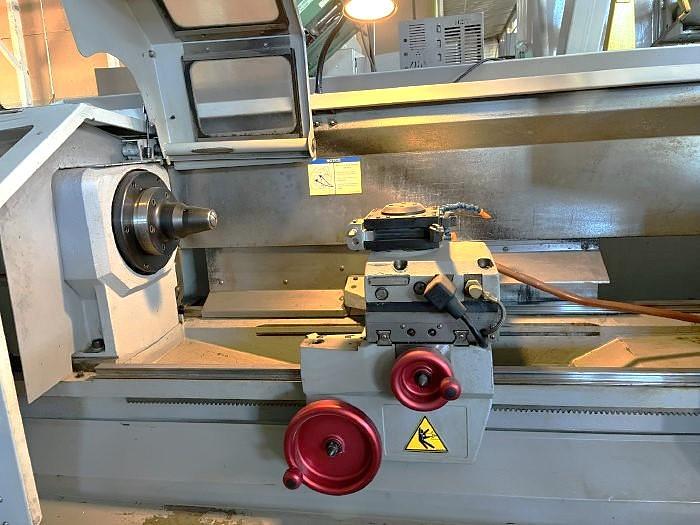

4 Station Indexable Turret

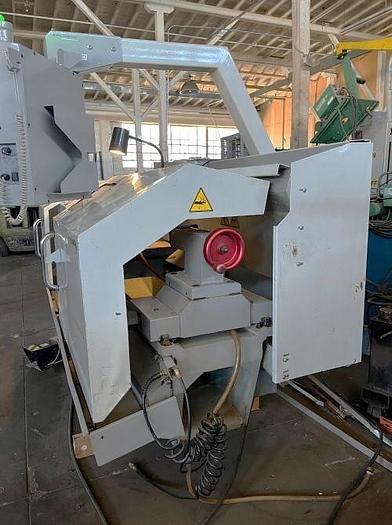

Tailstock
Upgraded A2-6" Spindle Nose
Manual Hand Wheels Coolant System with Tank & Pump Integral Chip-Flow Channel Fully Enclosed Work Area 1 MB Program Memory
USB Port Interface RS 232 Port Interface Haas Intuitive Turning System Vector Drive Spindle Machine Can Run Either 240V Single Phase or 208V Three Phase Power
**Run Time Hours of 4,959**
Specifications
| Manufacturer | Haas |
| Model | TL-2 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 119401 |

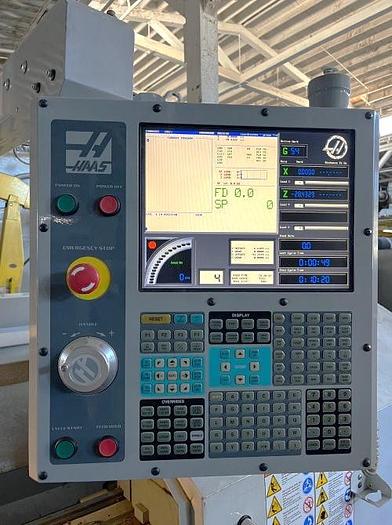

| Control | Haas CNC Control |
| Chuck Size | 5C Collet Nose |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-6" / 3" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 4 Station Indexable Turret |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 100" x 58" x 80" |
| Machine Weight | 5,000 lbs. |
