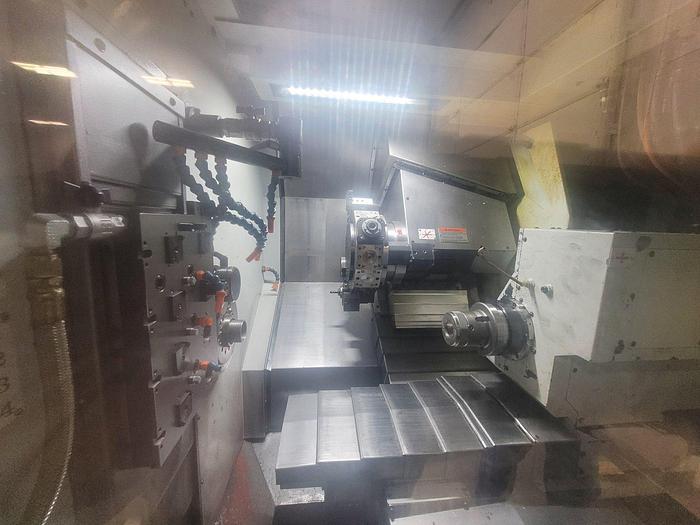

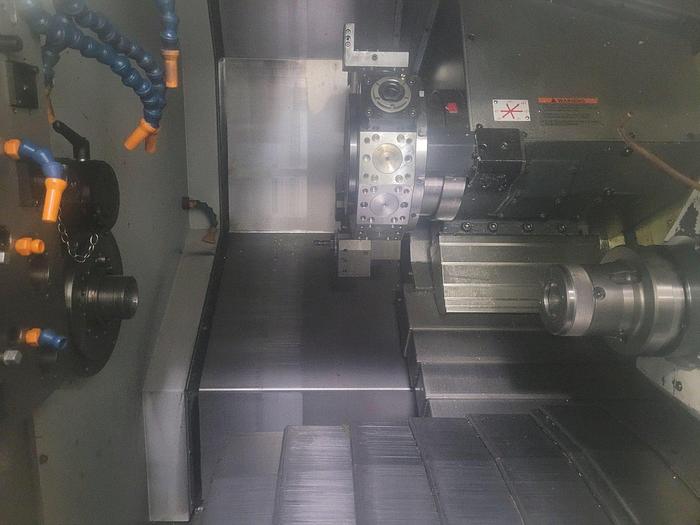

2017 Yama Seiki GTW-1500Y Multi Axis Lathe
2017 Yama Seiki GTW-1500Y Multi Axis Lathe
$114,500 (USD)
Location:Minnesota
orCall (863) 439-6066
Description
Y Axis Capability
Subspindle
Full C Axis Spindle Rotation Both
Live Milling / Drilling Capability

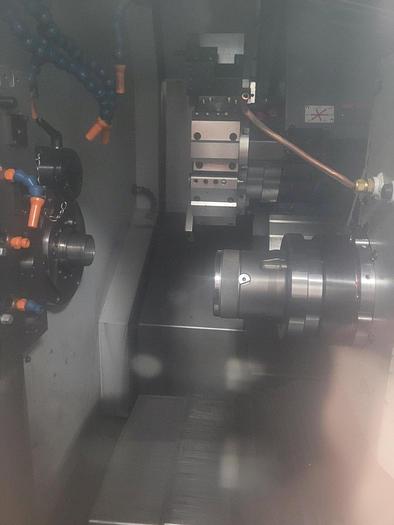

12 Station Turret
8 Station Gang Style Tool Slide

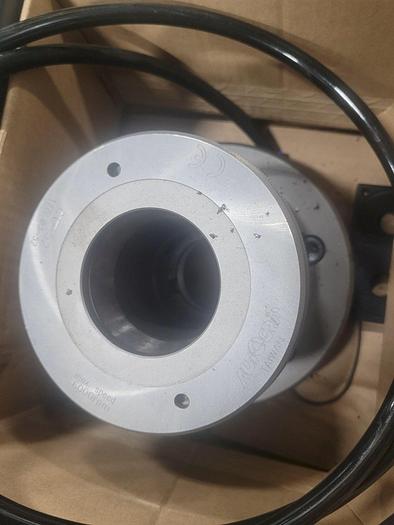

6" 3 Jaw Hydraulic Chuck on Main Spindle
5" 3 Jaw Hydraulic Chuck on Subspindle

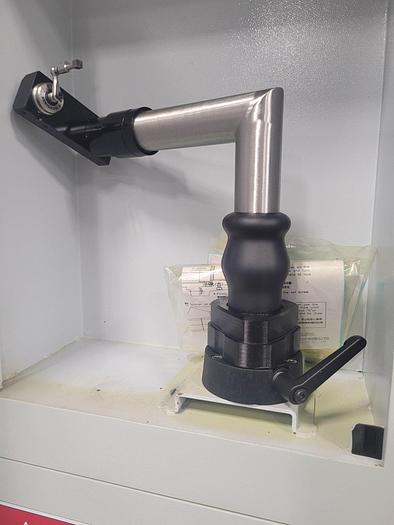

Automatic Tool Eye

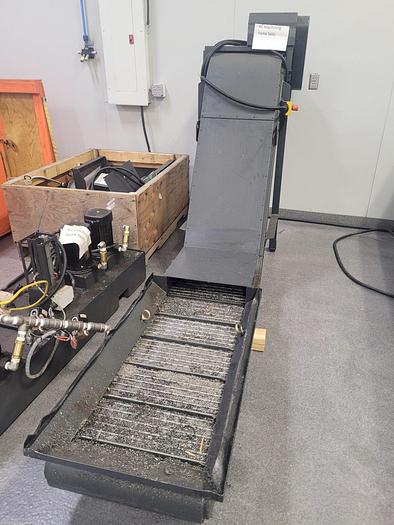

Chip Conveyor
Parts Catcher

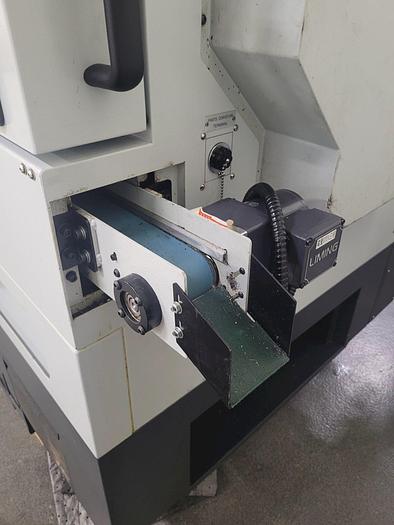

Parts Conveyor

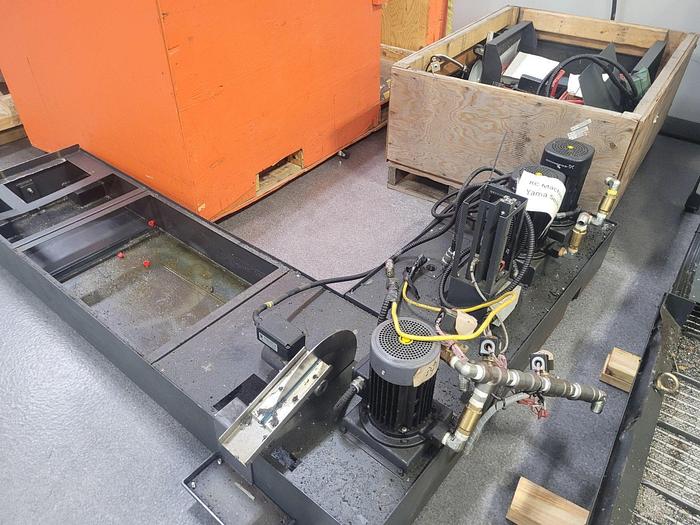

High Pressure Coolant System
Prepped for a Bar Feed System
USB Port Interface
RS 232 Port Interface

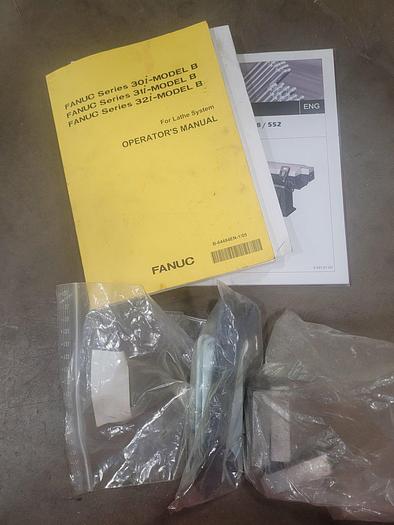

All Available Manuals

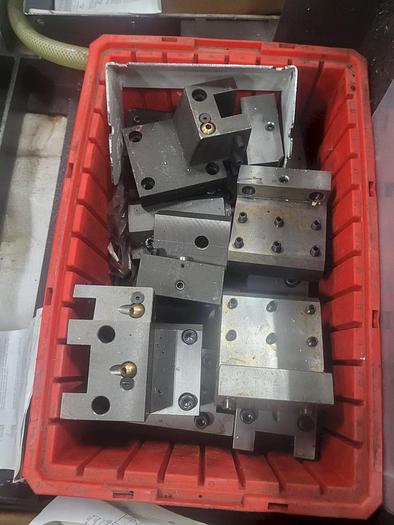

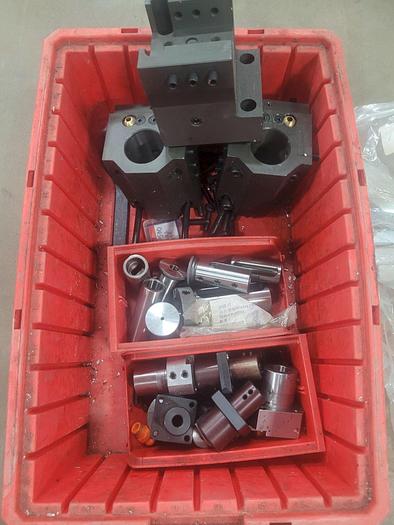

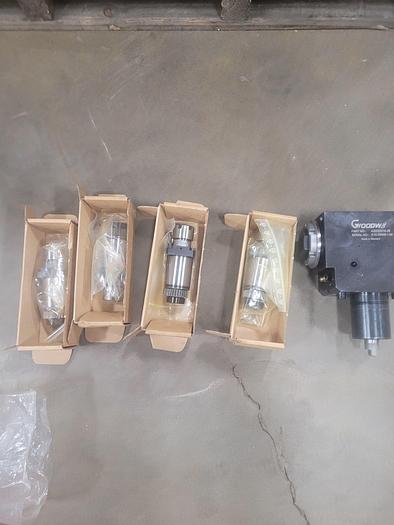

All Available Static/Live Holders
Specifications
| Manufacturer | Yama Seiki |
| Model | GTW-1500Y Multi Axis Lathe |
| Year | 2017 |
| Condition | Used |
| Stock Number | 119399 |
| Control | Fanuc 32i-B Series Control |
| Chuck Sizes | 6" Hydraulic Chuck on Main Spindle/5" Hyd on Subspindle |
| Maximum Swing | 15.7" |
| Maximum Cutting Diameter | 9.8" |
| Maximum Cutting Length | 8.2" |
| X1 / X2 Axis Travel | 7.1" / 12.2" |
| Y1 / Y2 Axis Travel | +/- 1.4" / 9.8" |
| Z1 / Z2 Axis Travel | 10.5" / 21.6" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 / .001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-5" / 2.4" / 2" |
| Spindle Speed / Sub Spindle Speed | 5,000 RPM / 6,000 RPM |
| Spindle Motor / Sub Spindle Motor | 25 HP / 7.4 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 3.3 HP |
| Number of Turret Positions | 12 Station Turret |
| Gang Slide Positions | 8 Locations |
| Gang Tool Slide Live Holder Type / Speed | ER20 Type / 6,000 RPM |
| Rapid Traverse Rates X1 / X2 | 708 IPM / 945 IPM |
| Rapid Traverse Rates Y1 / Y2 | 788 IPM / 945 IPM |
| Rapid Traverse Rates Z1, Z2 | 1180 IPM |
| Machine Dimensions | 100.2 x 81.3" x 79.4" |
| Machine Weight | 8,820 lbs. approx. |
