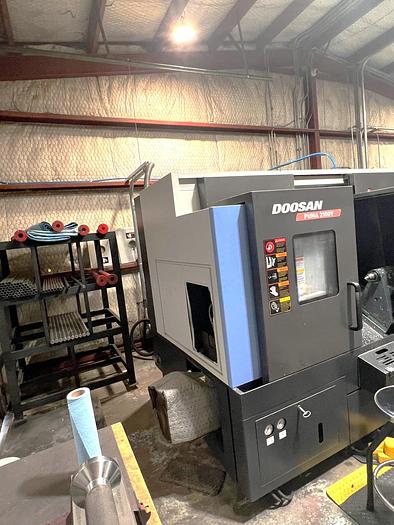

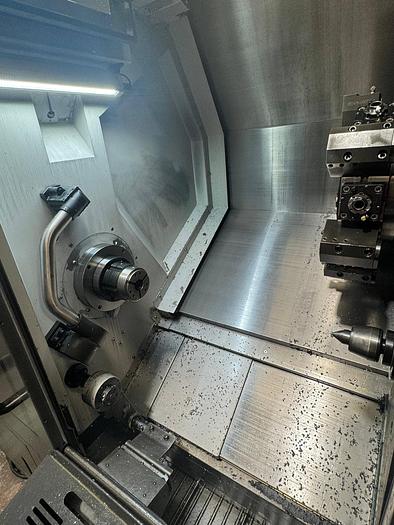

2015 Doosan Puma 2100Y
2015 Doosan Puma 2100Y
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
Y Axis Capability
Chip Conveyor

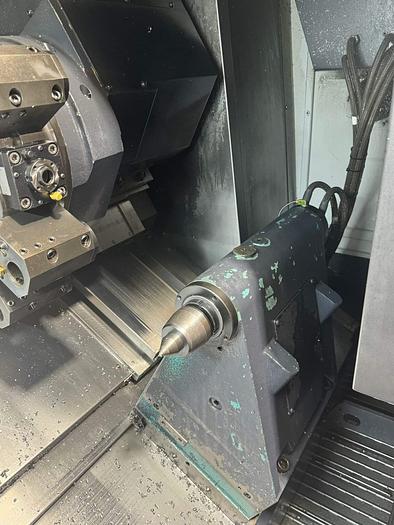

Tailstock
Tool Presetter
Parts Catcher
Rigid Tapping
Collet Chuck

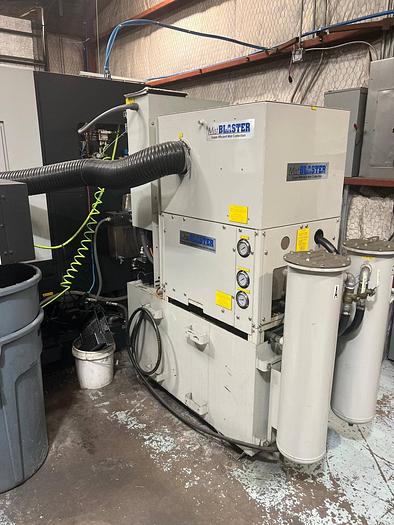

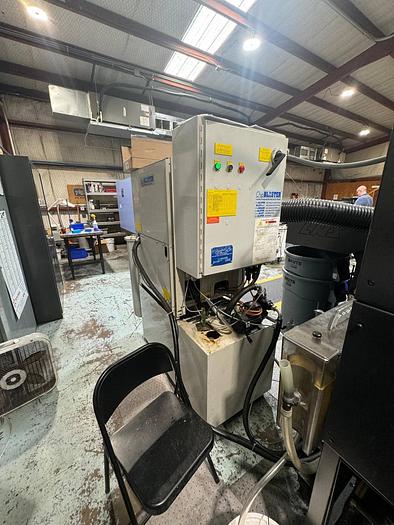

Mist Blast Mist Collector System
Coolant System with Tank & Pump
3 Color Machine Status Lights
USB Drive
PCMCIA Card Slot
RS 232 Port Interface
All Available Manuals
All Available Tooling

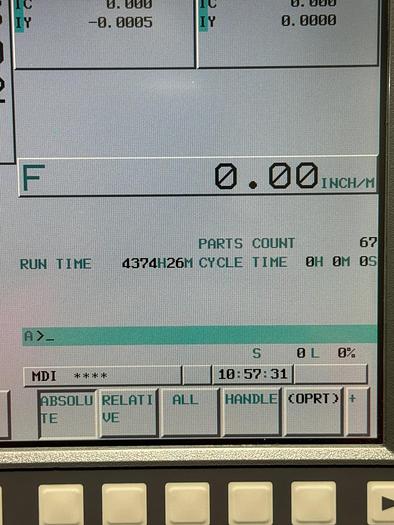

**Run Time Hours 4,374**
Specifications
| Manufacturer | Doosan |
| Model | Puma 2100Y |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119398 |
| Control | Fanuc i Series Control |
| Chuck Size | Collet Chuck |
| Maximum Swing | 30.7" |
| Maximum Machining Diameter | 15.98" |
| Maximum Machining Length | 20.47" |
| X-Axis Travel | 10.2" |
| Y-Axis Travel | +/- 2.62" |
| Z-Axis Travel | 23.2" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3" / 2.6" |
| Spindle Speed | 5000 RPM |
| Spindle Motor | 25 HP |
| Rotary Tool Speed / Rotary Motor | 5000 RPM / 7.5 HP |

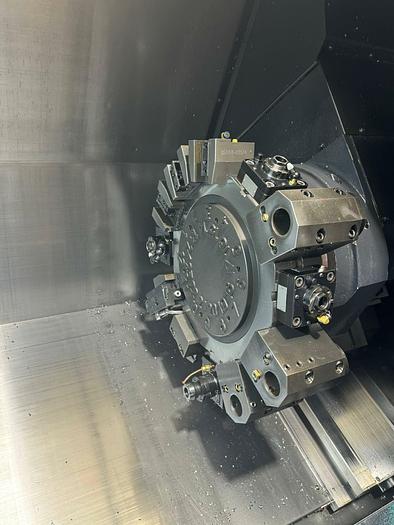

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y | 1181 IPM , 1181 IPM / 393 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.1" / 3.93" / #4MT |
| Machine Dimensions | 135"x77"x85" |
| Machine Weight | 12,015 lbs. |
