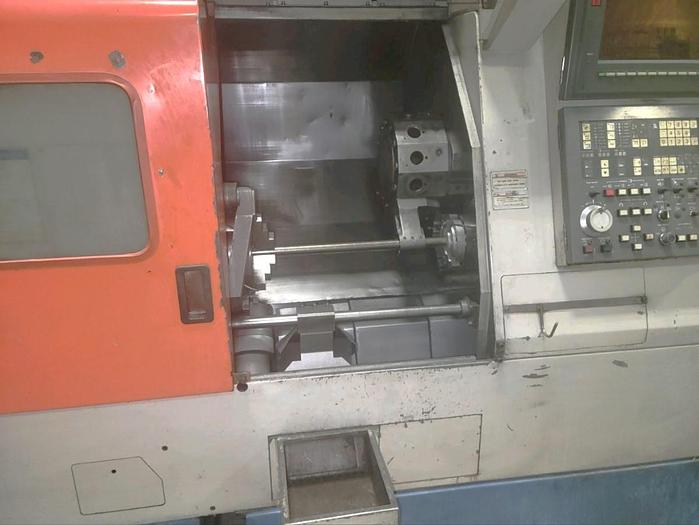

1993 Mazak SQT18MS w/ GL100 Gantry Loader
1993 Mazak SQT18MS w/ GL100 Gantry Loader
$14,500 (USD)
Location:Oregon
or
Call (863) 439-6066
Description

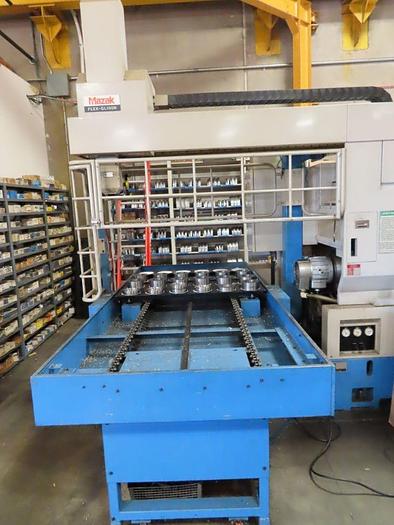

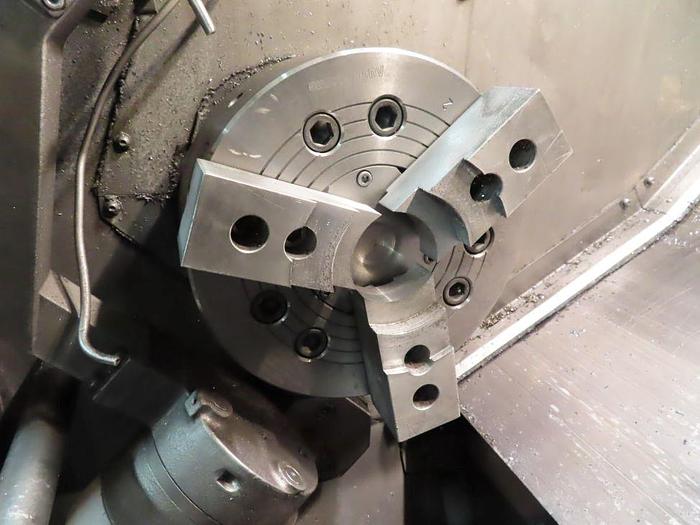

Mazak GL-100N Gantry Loading System Full "C" Axis Spindle Rotation Live Milling/Drilling Capabilty Subspindle 10" Kitagawa B-210 3 Jaw Hydraulic Chuck - Main 6" Hydraulic Chuck - Subspindle Automatic Tool Eye

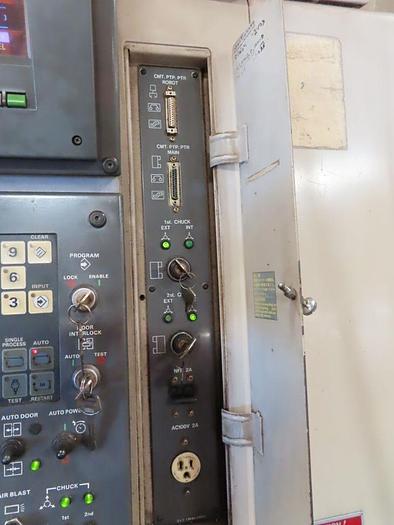

RS 232 Port Interface All Available Manuals
All Available Tooling Multi-Tap Transformer
Specifications
| Manufacturer | Mazak |
| Model | SQT18MS w/ GL100 Gantry Loader |
| Year | 1993 |
| Condition | Used |
| Stock Number | 119709 |

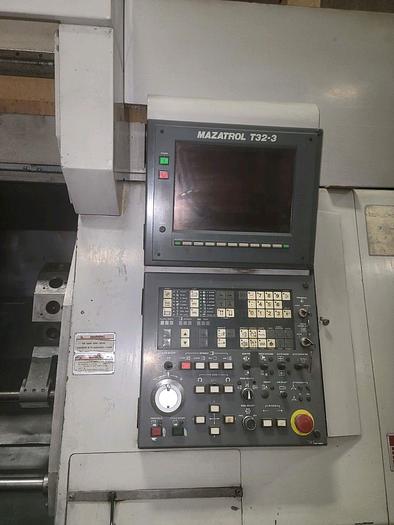

| Control | Mazatrol T32-3 Control |
| Chuck Sizes Main / Subspindle | 10" Hydraulic Chuck / 6" Hydraulic Chuck |
| Maximum Swing | 20.91" |
| Maximum Swing over Bed | 15.74" |
| Maximum Cutting Diameter | 11.75" |
| Maximum Turning Length | 20.47" |
| Maximum Bar Capacity | 2.5 |
| X-axis travel | 7.125" |
| Z-Axis Travel | 22.75" |
| B-Axis Travel (Subspindle) | 23.25" |
| Spindle Nose / Spindle Bore | A2-8" / 2.99" |
| Spindle Speeds | 35 - 4,000 RPM |
| Spindle Motor 30 Minutes/Continuous | 25 HP / 20 HP |
| Subspindle Speed | 180 - 5,000 RPM |
| Subspindle Motor | 10 HP |
| Rotary Tool Speed / Rotary Motor | 120 - 3,000 RPM / 5 HP |

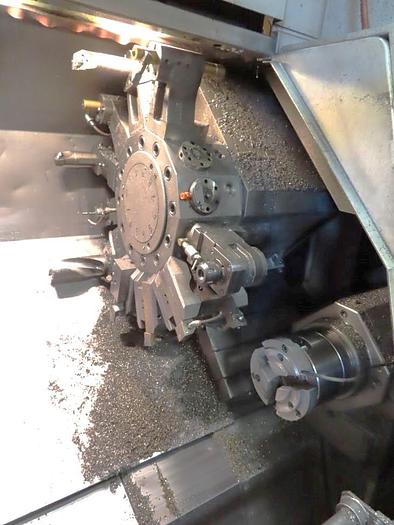

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1180 IPM |
| Machine Dimensions | 120" x 72" x 88" (machine only) / Gantry 62" x 108" x 88" |
| Machine Weight | 10,365 lbs. (machine only) |
