2005 Toshiba BTD-110.R16 Tosnuc 888

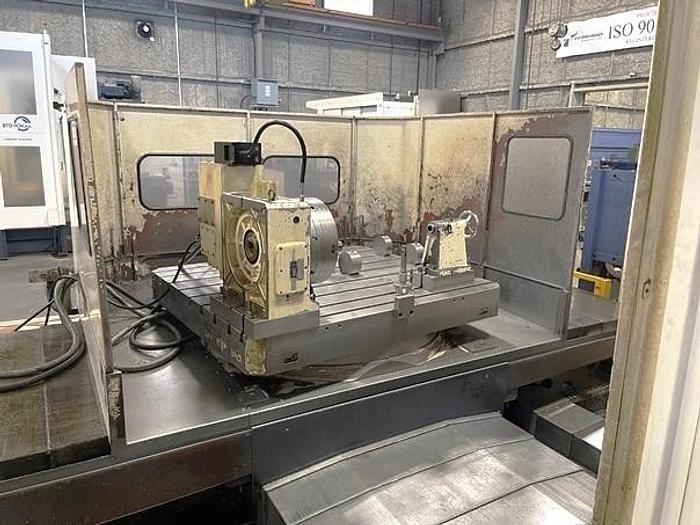

4th Axis Rotary Table

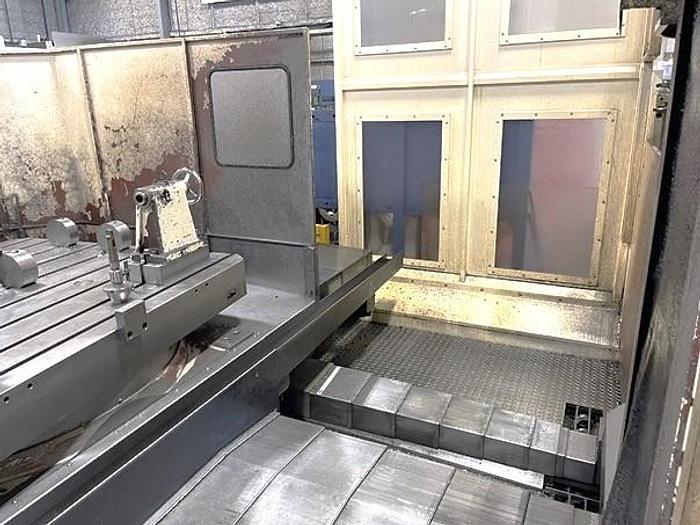

Tailstock for 4th Axis

Coolant Through the Spindle

Marposs Probing System

Full Guarding

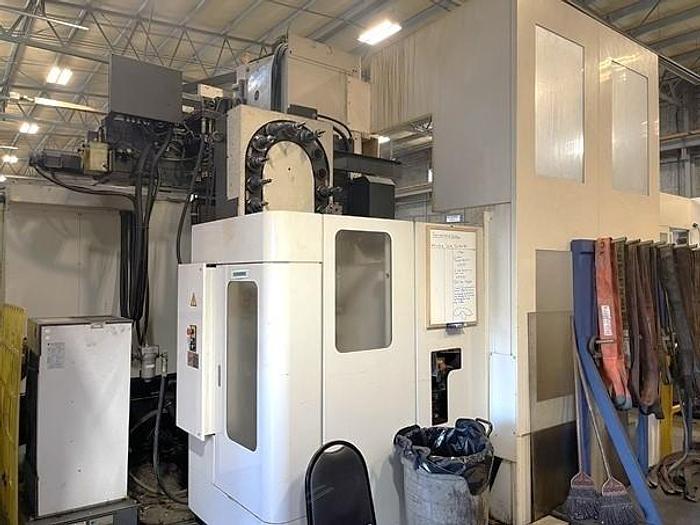

38 Station Tool Changer

Chip Conveyor

Coolant System

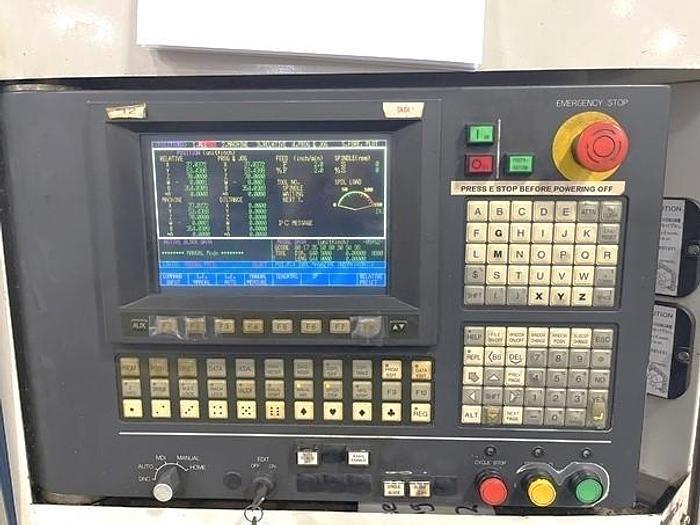

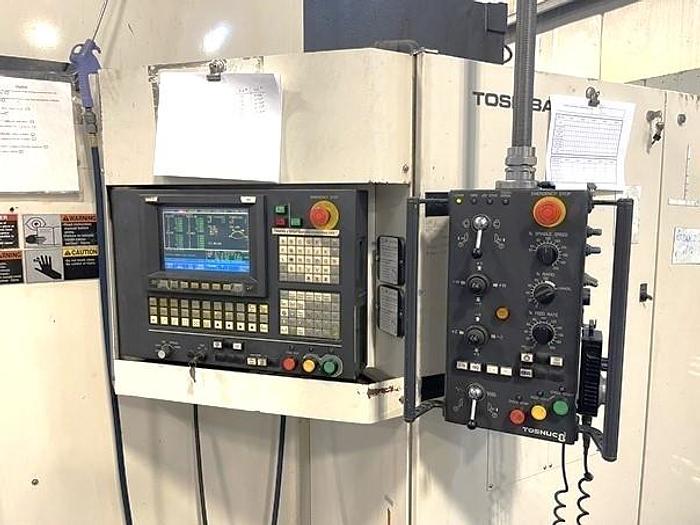

Operator Pendant

Remote Jog Handle

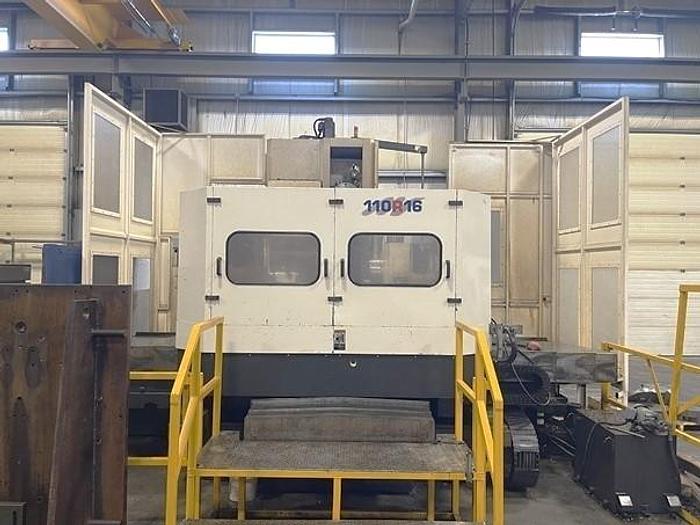

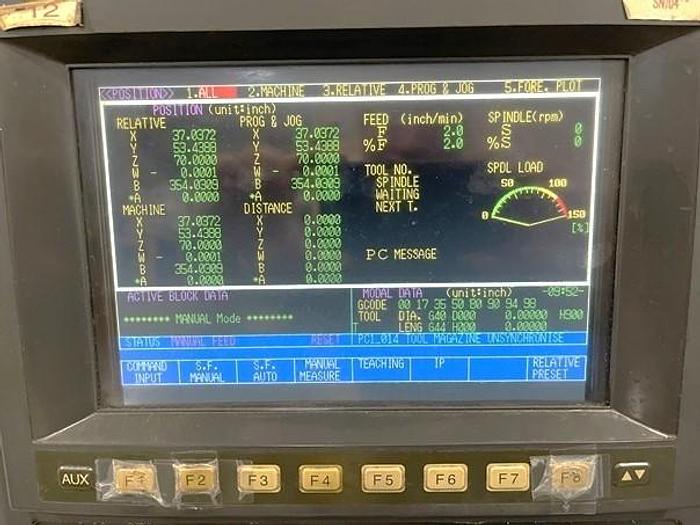

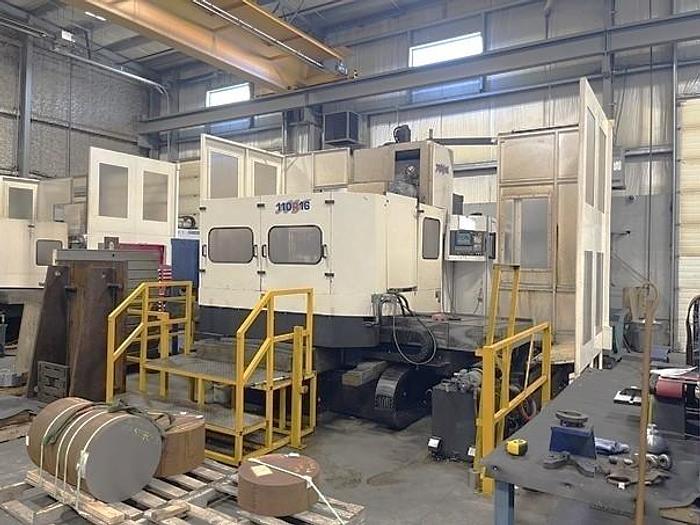

The 2005 Toshiba BTD-110.R16 Tosnuc 888 is a horizontal boring mill designed for precision and durability. It features the Tosnuc 888 control, providing reliable CNC performance. The machine boasts a 65" x 55.1" table with a significant load capacity of 22,000 lbs. and precise table indexing at .001-degree increments. Its substantial travel capabilities include 78.7" on the X-axis, 59" on the Y-axis, and 57.08" on the Z-axis, ensuring versatility for a variety of machining tasks. Equipped with a 4.3" spindle diameter and a CAT #50 taper, this boring mill accommodates spindle speeds ranging from 5 to 3,000 RPM across three ranges, powered by a robust 30 HP motor. The automatic tool changer (ATC) offers 38 tool positions, supporting maximum tool dimensions of 9.5" in diameter and 15.7" in length. Rapid traverse rates reach 394 IPM on the X, Y, and Z-axes, and cutting feedrates can go up to 236 IPM, optimizing operational efficiency. With dimensions of 202" x 243" x 156" and a weight of 63,800 lbs., this machine is built for substantial workload handling. Its robust design, coupled with advanced control features, makes it a practical choice for industries requiring precision and heavy-duty machining.
