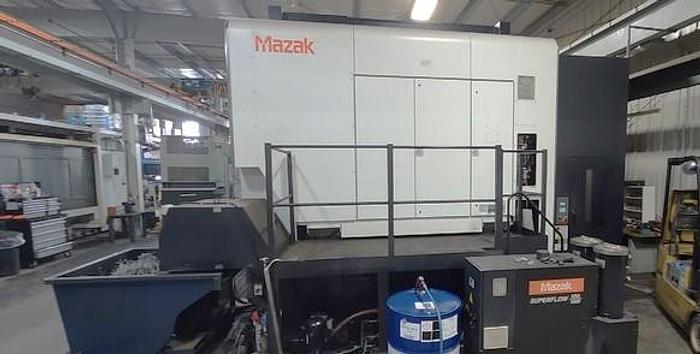

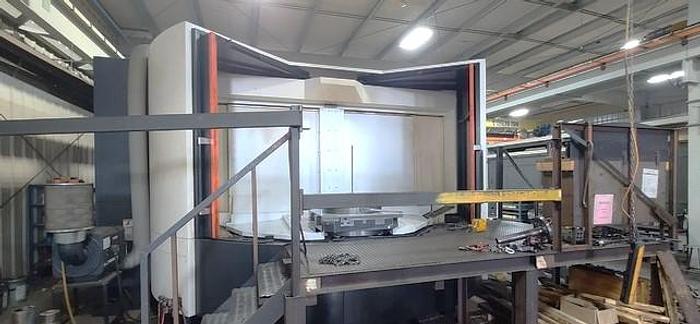

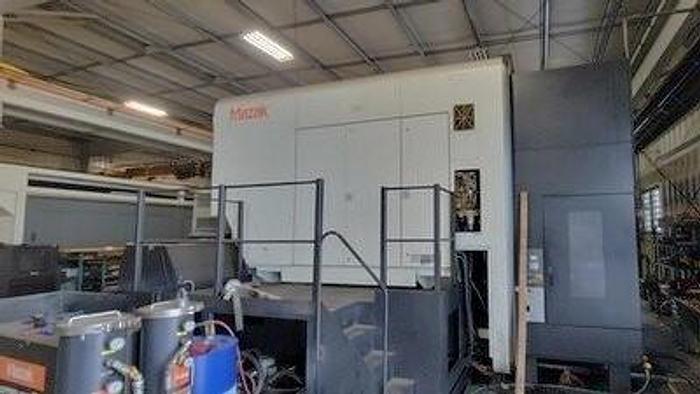

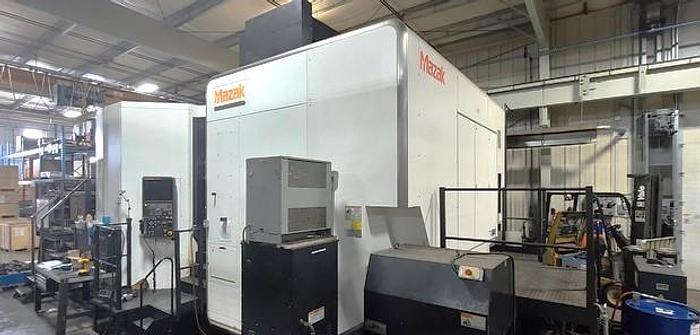

2011 Mazak Integrex E-1550V/10 II 5 Axis Mill/Turn
2011 Mazak Integrex E-1550V/10 II 5 Axis Mill/Turn
Location:Ontario, Canada
Description

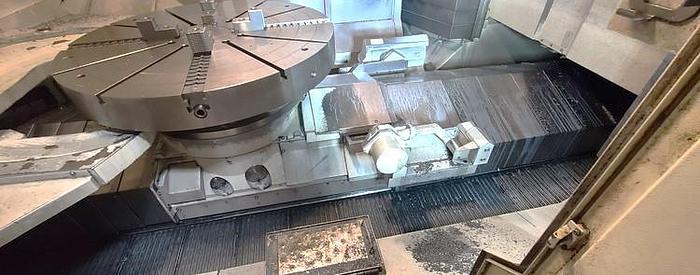

NC Rotary Table with Full .001 Degree Contouring - C Axis

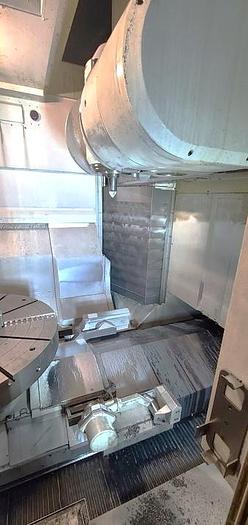

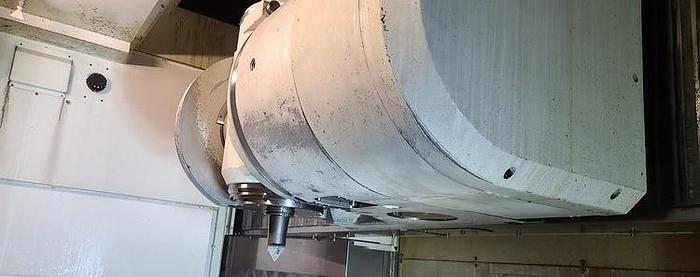

NC Tilting Spindle with .0001 Degree Full Contouring - B Axis
2 Pallet Changer System

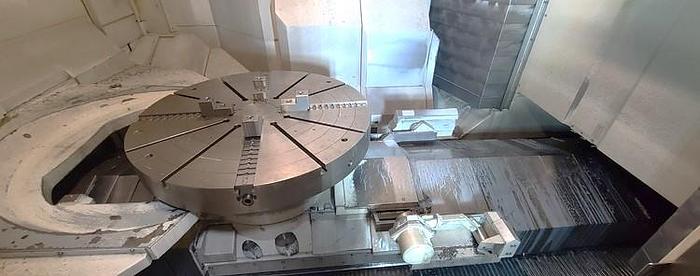

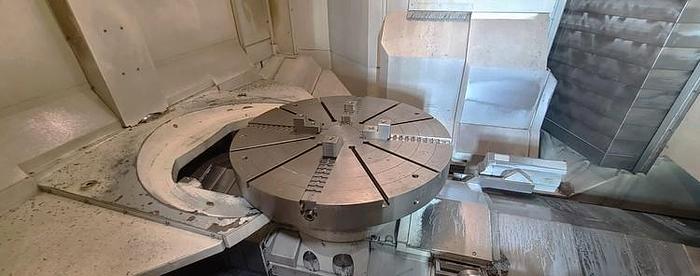

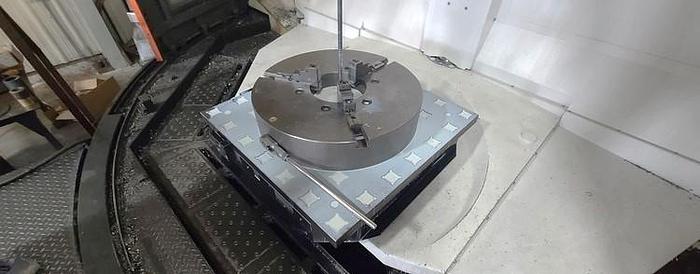

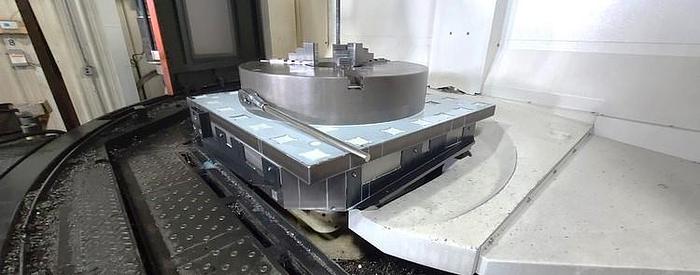

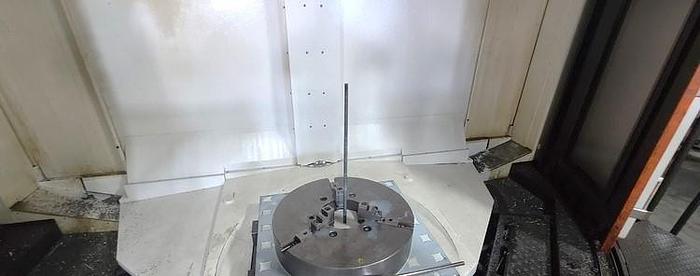

55.118" 4 Jaw Chuck on One Pallet
39" Square Location Bored Tapped Pallet on Second Pallet

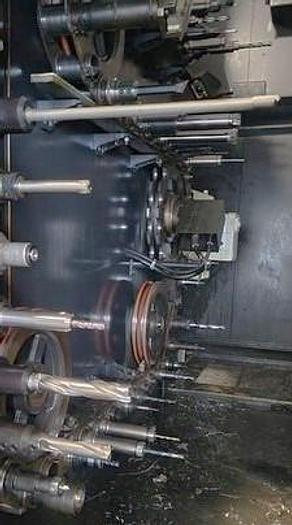

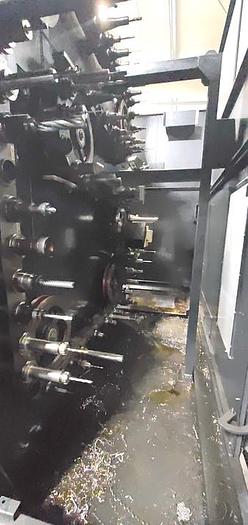

80 Station Tool Changer
12,000 RPM Milling Spindle

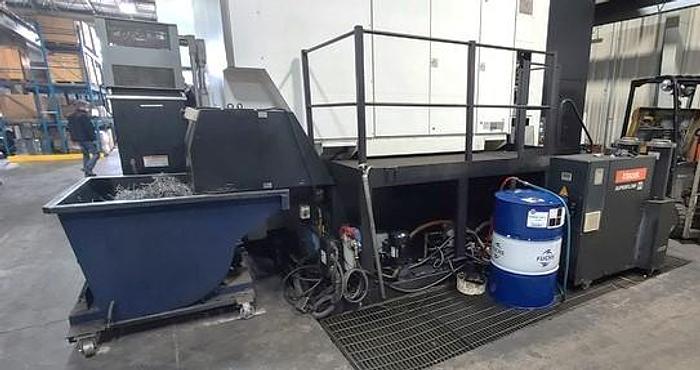

Chip Conveyor - Rear Discharge

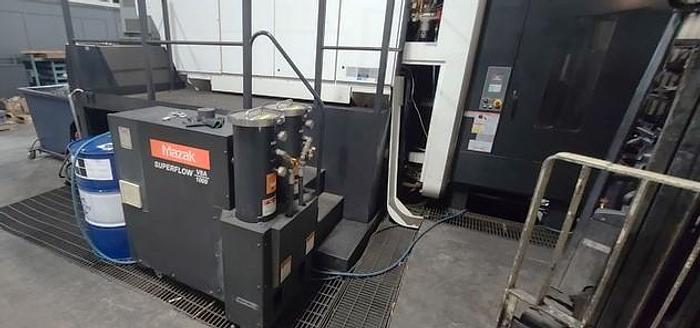

1000 PSI Mazak SuperFlow V8A/1000 High-Pressure Coolant System
Work Measuring System
Automatic Tool Eye
NC4 Laser Rotary Tool Length Measurement
Laser Measurement NC4 Macro Upgrade

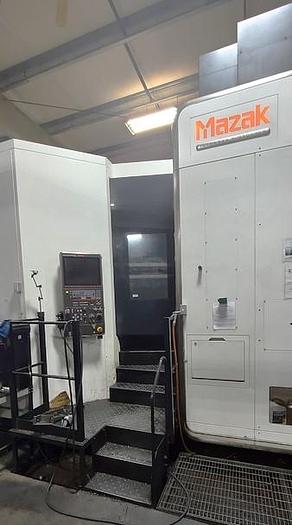

Operator Platform
Overload Detection System
Hobbing Function (without tooling)
Auto Pecking Cycle with Load Detection
Re Threading
Niagara Coolant
Flood Coolant System
Rigid Tapping
EIA/ISO Input Function
Mazak Tapping/Boring Tornado
Air Through Mill Spindle
Spindle Chiller Unit

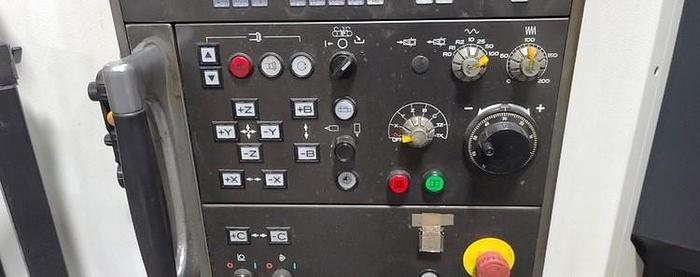

Remote Jog Handle
PCMCIA Interface
IC Memory Card Interface
3.5" Floppy Disk Interace
RS 232 Port Interface

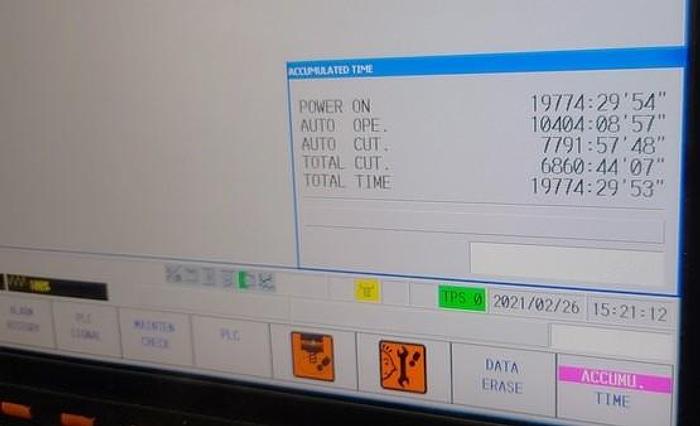

**Power On Hours 19,774**
**Auto Operation Hours 10,404**
**Total Cutting Hours 6,860**
Specifications
| Manufacturer | Mazak |
| Model | Integrex E-1550V/10 II |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119388 |

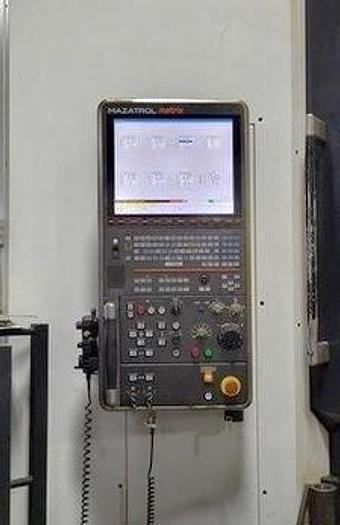

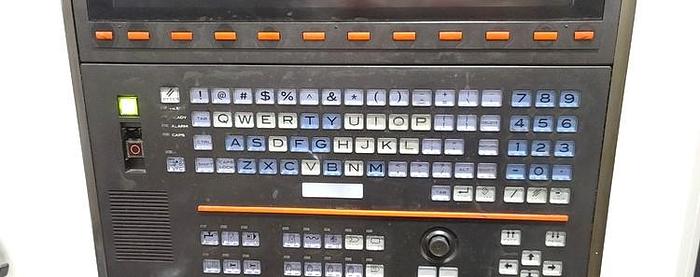

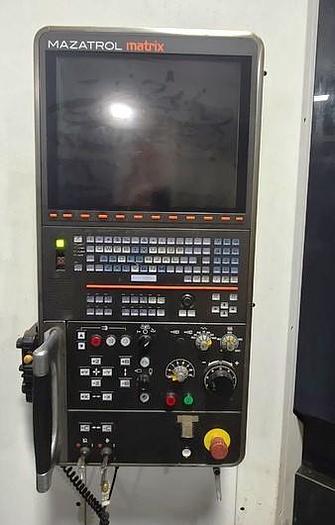

| Machine Control | Mazatrol Matrix |
| Table Size | 55.118" Diameter Table |
| Maximum Machining Diameter | 78.74" |
| Maximum Workpiece Height | 56.69" |
| Maximum Weight on Table | 11,023 lbs. |
| X-Axis Travel | 73.82" |
| Y-Axis Travel | 61.02" |
| Z-Axis Travel | 52.95" |
| B-Axis Tilt Movement | 150 Degrees Full Contouring |
| C-Axis Rotation | .001 Degree Full Rotary Table |
| Table Rotation Speed of C Axis | 300 RPM |
| Table Motor | 60 HP |
| Spindle Taper of Milling Tools | CAT 50 |
| Spindle Speeds of Mill Tools | 10,000 RPM - 2 Ranges |
| Spindle Motor of Mill Tools | 60 HP |
| Number of Tool Positions | 80 Station Tool Changer |
| Rapid Traverse Rates | 1968 IPM |
| Machine Dimensions | 254" X 381" X 181" |
| Machine Weight | 102,800 lbs. |
