2015 Haas Mini Mill
No longer available
2015 Haas Mini Mill
Location:Illinois
Description
10 Station Tool ChangerDirect Belt Drive
RS 232 Port Interface
Coolant Tank w/ Pump
Accepts Single or 3-Phase Power

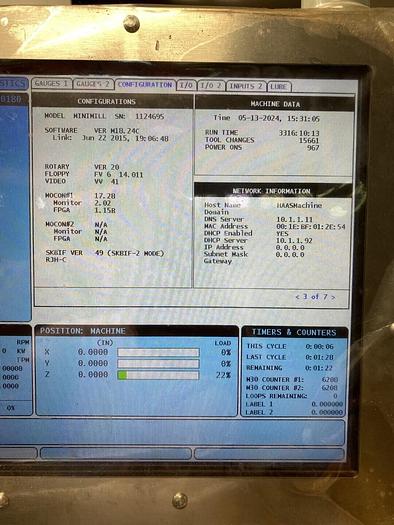

**ONLY 3,316 Run Time Hours**
Specifications
| Manufacturer | Haas |
| Model | Mini Mill |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119385 |
| Table Size | 36" x 12" |
| Maximum Table Load | 500 lbs |
| X-axis travel | 16" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 10" |
| Spindle Taper | CAT #40 |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 7.5 HP |
| Distance Spindle Nose to Table Top | 4" - 14" |
| Tool Magazine Capacity | 10 Position ATC |
| Tool Change Time Tool to Tool | 2.5 Seconds |
| Maximum Tool Diameter / Length / Weight | 3.5" / Na / Na |
| Rapid Traverse Rates | 650 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 78" x 80" x 98" |
| Machine Weight | 3,400 lbs |
