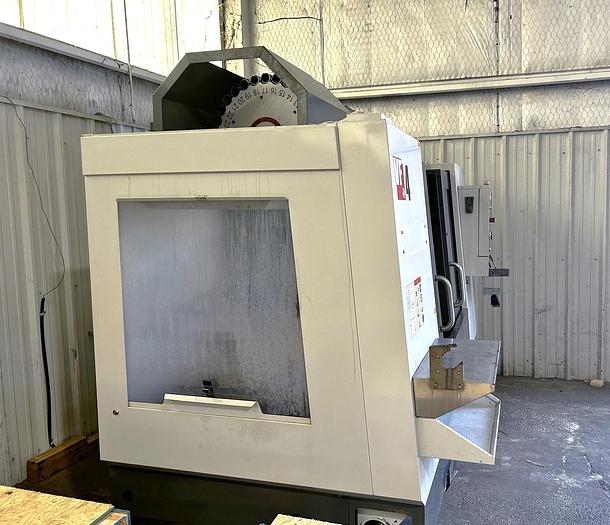

2018 Haas VF4
2018 Haas VF4
$65,000 (USD)
Location:Mississippi
Description
Coolant Through the Spindle - 300 PSI
Haas Wireless Probing - Renishaw
Auxiliary Coolant Filter System
Programmable Coolant Nozzle
High Intensity Lighting
Remote Jog Handle
Window Air Blast
Auger Style Chip Conveyor
Visual Part Programming System
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Media Display M-Code (M130)
Rigid Tapping
USB Port Interface
Ethernet Interface
RS 232 Port Interface
1 GB Programming Memory
Haas Connect: Remote Monitoring

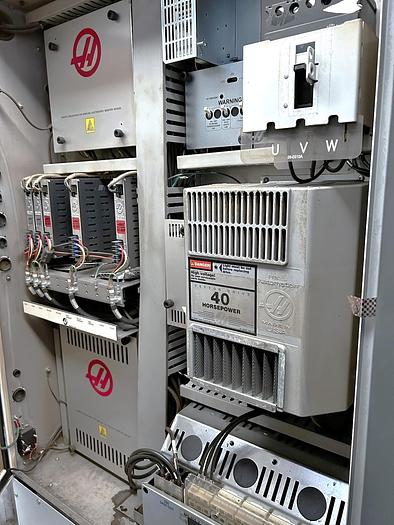

Internal High Voltage Isolated Transformer (set up to run 440V)
**Servo On Hours as of March 2024 - 7,280 Hours**
**Spindle Run Hours as of March 2024 - 1,888 Hours**
**Price as equipped today is $115,000**
**Primarily cut mild steel, not currently under power, was inspected by Haas prior to removal from power, report available**
Specifications
| Manufacturer | Haas |
| Model | VF4 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 119381 |
| Control | Haas NextGen Control |
| Table size | 52" x 18" |
| Maximum Weight on Table | 3,500 lbs. |
| X-Axis Travel | 50" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 0 - 8,100 RPM |
| Spindle Motor 30 Minutes/Continuous | 30 HP / 20 HP |
| Spindle Nose to Table Top | 4" - 29" |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Rapid Traverse Rates | 1000 IPM |
| Cutting Feedrates | 650 IPM |
| Machine Dimensions | 122" x 95" x 100" |
| Machine Weight | 13,300 lbs. |
