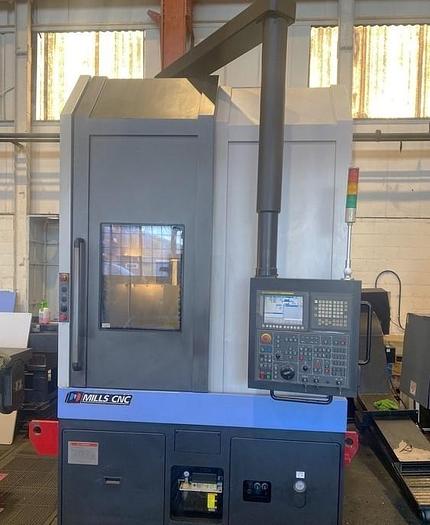

2011 Doosan Puma VT-750M CNC VTL with Milling
No longer available
2011 Doosan Puma VT-750M CNC VTL with Milling
$142,000 (USD)
Location:Ontario, Canada
Description
C Axis Table Rotation
Live Milling/Drilling Capability

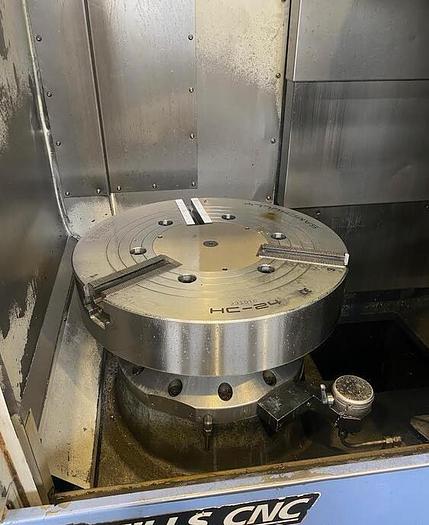

24" 3 Jaw Hydraulic Chuck
Tool Presetter
Solid Boxed Ways
3.5" Floppy Disk Drive
RS 232 Port Interface
Wired 200-220V Electrics
(2) Live Tool Holders
Miscellaneous Static Tooling
All Available Manuals

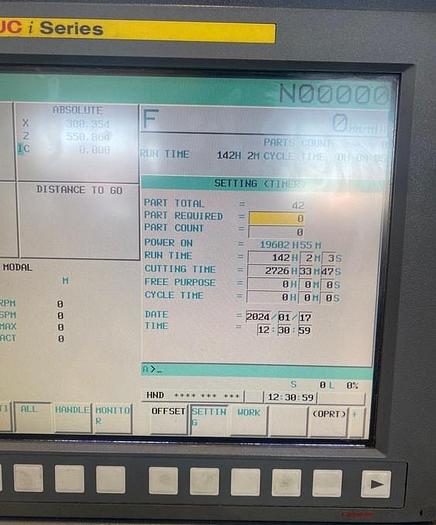

**Cutting Hours 2,726**
Specifications
| Manufacturer | Doosan |
| Model | Puma VT-750M CNC VTL with Milling |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119379 |

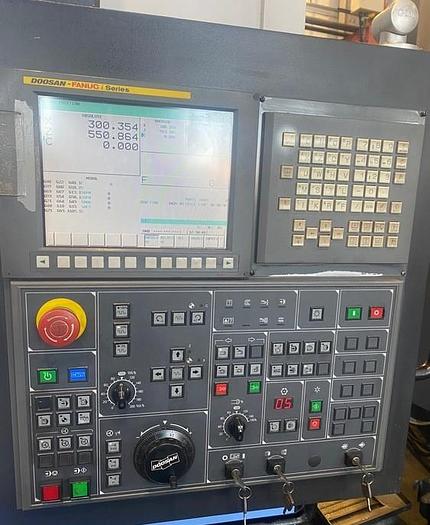

| Machine Control | Fanuc i Series Control |
| Chuck size | 24" 3 Jaw Hydraulic Chuck |
| Maximum swing | 31.5" |
| Maximum cutting height | 29.9" |
| X axis travel | 15.2" |
| Z axis travel | 29.9" |
| Spindle speed | 2,000 RPM |
| Spindle motor | 40 HP |

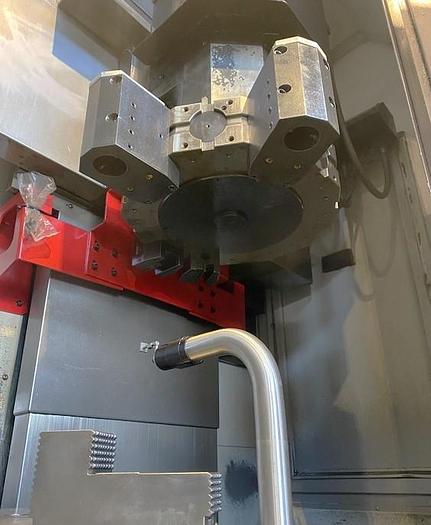

| Number of turret positions | 12 Station Turret |
| Rapid Traverse Rates | 472 IPM / 630 IPM |
| Machine dimensions | 73" x 146" x 136" |
| Machine weight | 21,340 lbs. |
