2018 Okuma Genos M460V-5X
No longer available
2018 Okuma Genos M460V-5X
$159,500 (USD)
Location:New York, NY
Description

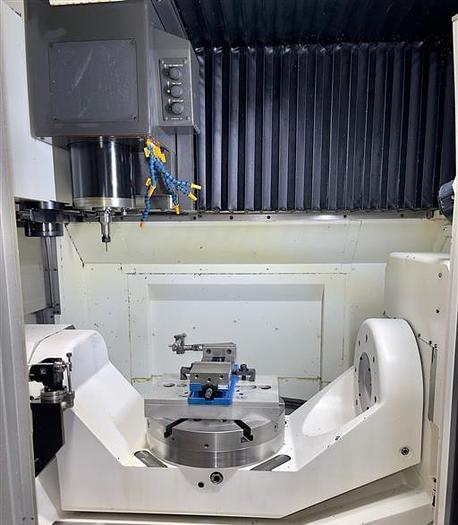

5 Axis Capability with Trunnion Style Table

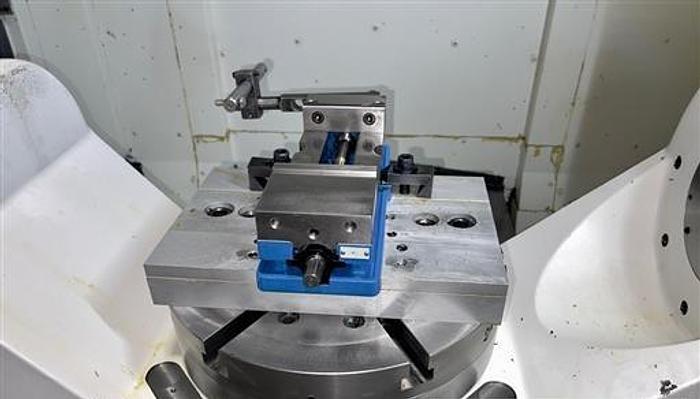

15.75" Diameter A/C Axis' Rotary Trunnion Table

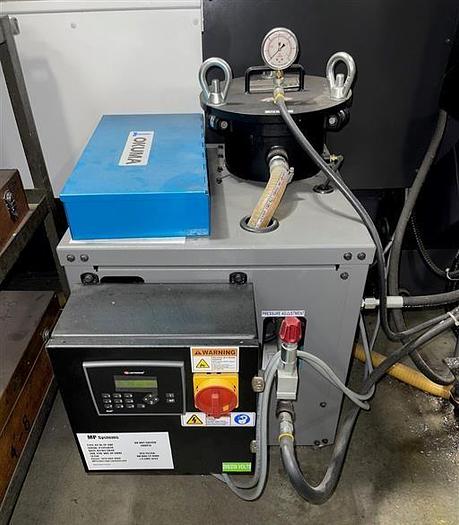

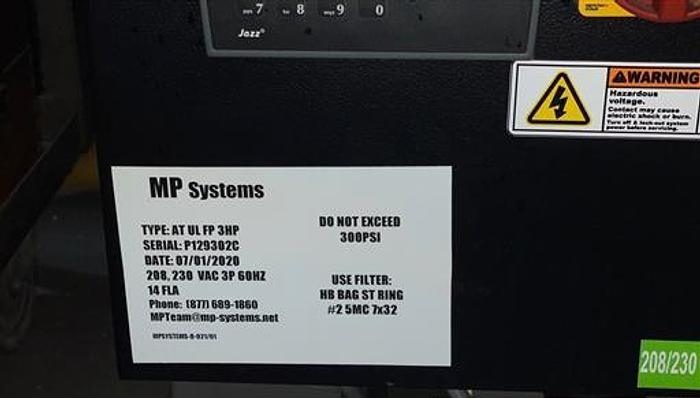

300 PSI MP Systems Coolant Through the Spindle System

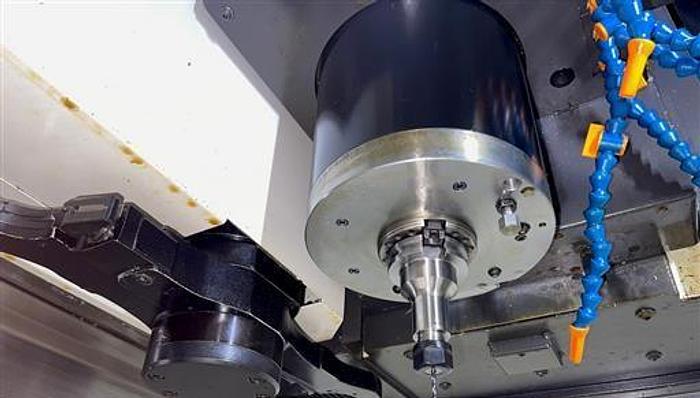

15,000 RPM Spindle

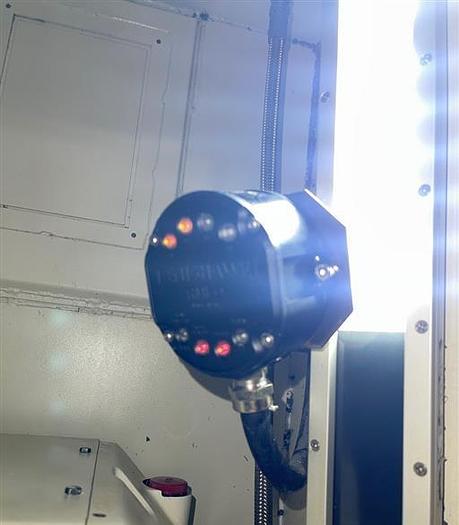

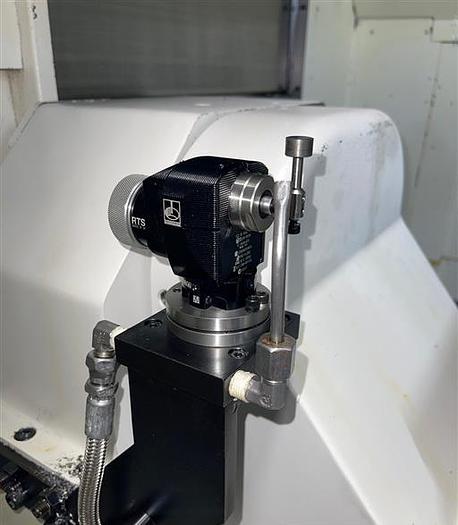

Renishaw Probing Tool & Part Probing

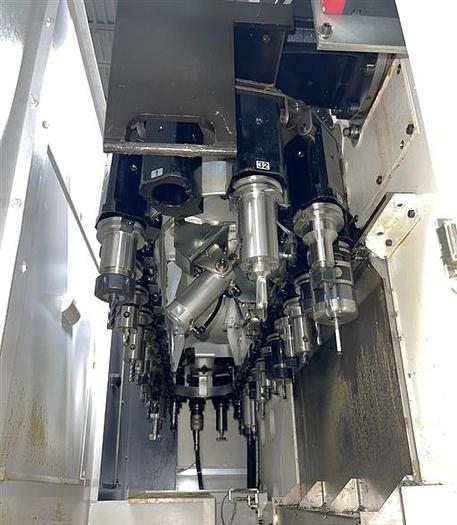

32 Station Side Mounted Tool Changer

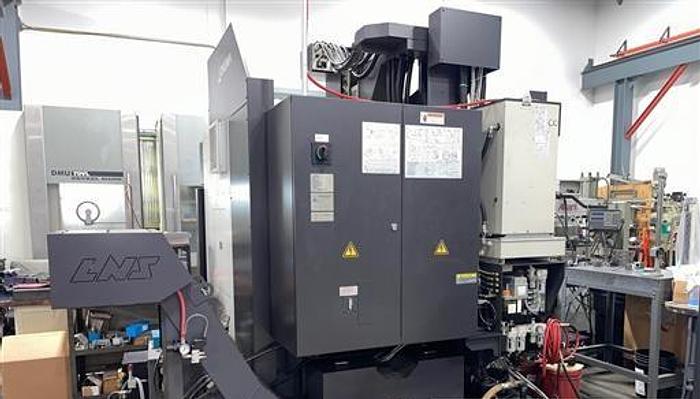

LNS MH250 Chip Conveyor
Remote Jog Handle
Complete Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
All Available Manuals
**2,557 Spindle Run Hours**
**2,099 Cutting Hours**
Specifications
| Manufacturer | Okuma |
| Model | Genos M460V-5X |
| Year | 2018 |
| Condition | Used |
| Stock Number | 119372 |

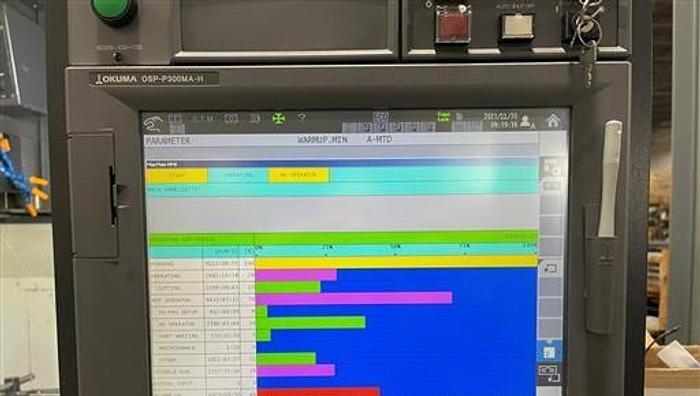

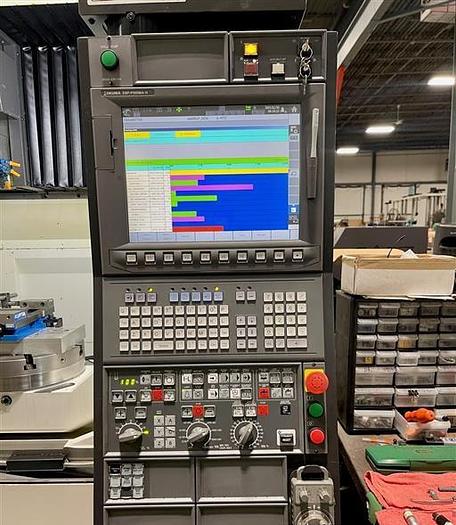

| Machine Control | OSP-P300MA Control |
| Rotary Table Diameter | 15.75" |
| Maximum Work Size | 23.62" x 15.75" |
| Maximum Table Load | 660 lbs |
| X-axis travel | 30" |
| Y-Axis Travel | 18.11" |
| Z-Axis Travel | 18.11" |
| A-Axis Pendulum Movement | -110 Degrees to +20 Degrees |
| C-Axis Rotation | 360 Degrees |
| Spindle Taper | CAT 40 Big Plus |
| Spindle Speed | 50 - 15,000 RPM |
| Spindle Motor | 30 HP |
| Distance Spindle Nose to Table Top | 3.94" - 22.05" |
| Tool Magazine Capcity | 32 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.92" / 9.45" / 18 lbs. |
| Rapid Traverse Rates X, Y / Z | 1575 IPM / 1262 IPM |
| Machine Dimensions LxWxH | 85" x 111" x 116" |
| Machine Weight | 16,675 lbs. |
