2012 Makino MCC2013VG with 5 Axis Capability, Full 4th Rotary Table, 60 ATC, HSK100 Taper, CTS, Probing Software

A/C Axis Rotating/Tilting Head for 5 Axis Capability

Full .001 Degree B Axis Pallet Rotation

60 Station Tool Magazine

Coolant Through the Spindle

Chip Conveyor

Renishaw Probe Software

Blum Tool Laser Probing

600 Macro Common Variables

Remote Jog Handle

Flood Coolant System

Coolant Tank with Pump

Mist Collector

Rigid Tapping

Spindle Chiller Unit

Ethernet Interface

RS 232 Port Interface

**ONLY Machined Aluminum**

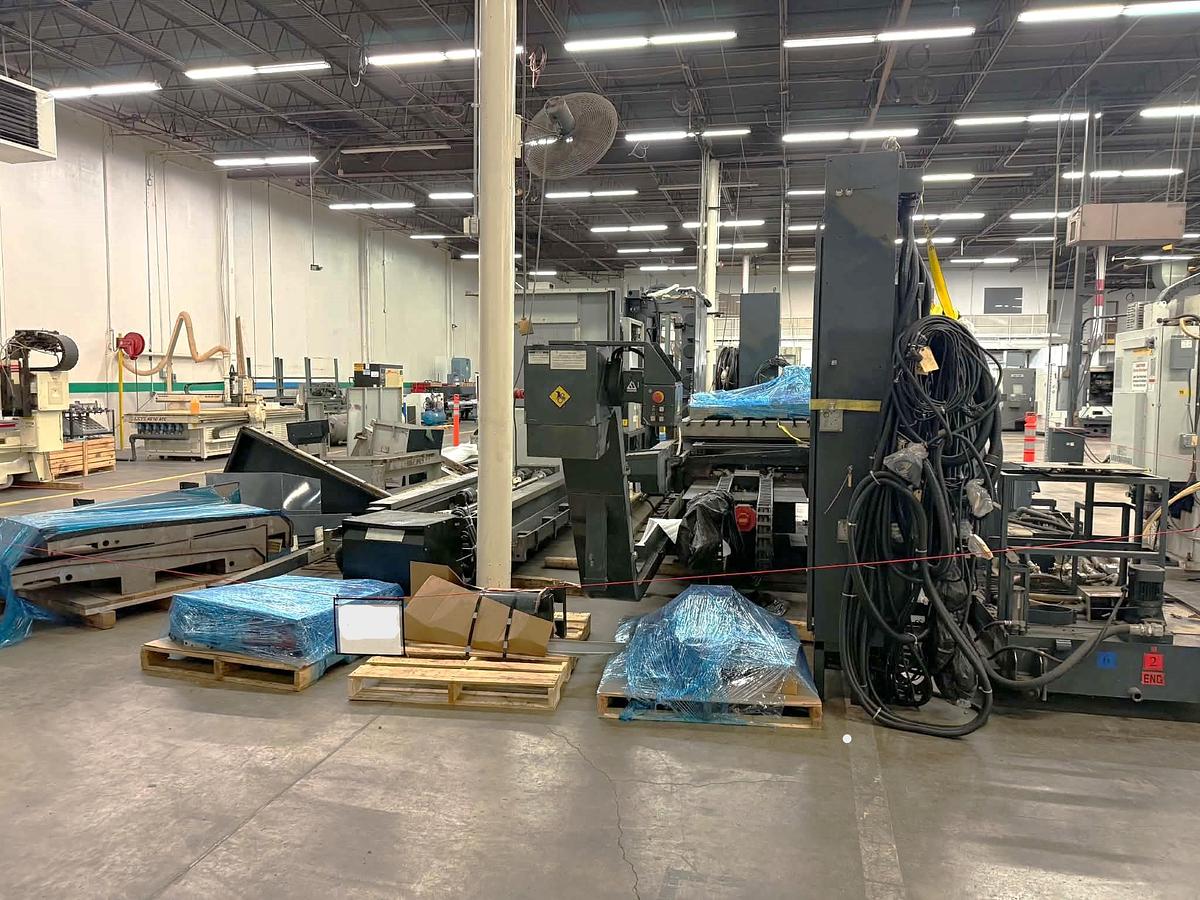

**MACHINE WAS DISMANTLED BY MAKINO AND PUT IN STORAGE IN 2024, NOT UNDER POWER**

**MAKE OFFER**

Refurbishment Work Details Completed in 2024:

• Turcite replacement including scraping, assembly & aligning. • Replace Material and Scrape X, Y & Z axis. • Rebuild ball screws for Y axis. • Rebuild ball screws for Z axis. • Regrind Castings. • Lubed Way lines as needed. New wipers. Install rubber gaskets. • Replaced Auger bearings and seals. • Run-off and alignments verified.

The 2012 Makino MCC2013VG CNC Horizontal Machining Center is equipped with impressive 5-axis capability, featuring a full 4th rotary table. Ideal for complex machining tasks, it offers a substantial pallet size of 59" x 47" and provides precision with .001-degree rotation indexing. Powered by a Makino Pro 5 Series Control (Fanuc 31iA), this machine ensures efficient operation with its 60-position automatic tool changer and a high-capacity HSK100 taper. The machining center supports a wide range of applications with its 12,000 RPM spindle speed and robust 40 HP spindle motor. Its working envelope is defined by 78.7" of X-axis travel and 51.2" of both Y and Z-axis travel, providing significant flexibility and reach for handling large parts or complex geometries. Additionally, it boasts rapid traverse rates of 1,969 inches per minute, enhancing productivity through swift positioning. Designed to handle heavy-duty tasks, the Makino MCC2013VG weighs 80,000 lbs and has dimensions of 246" wide, 242" front-to-back, and 161" high, making it a substantial, reliable asset for industrial settings. Complemented by probing software and through-spindle coolant capability, it ensures comprehensive and precise machining operations.
