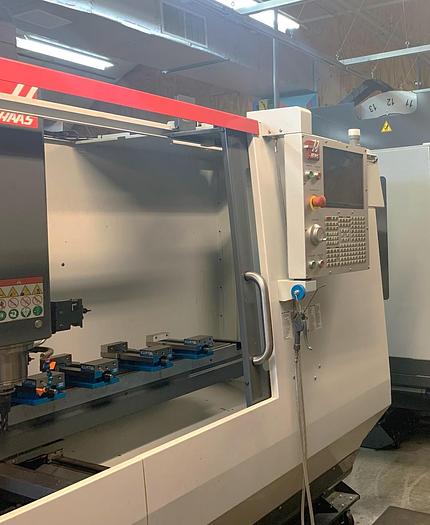

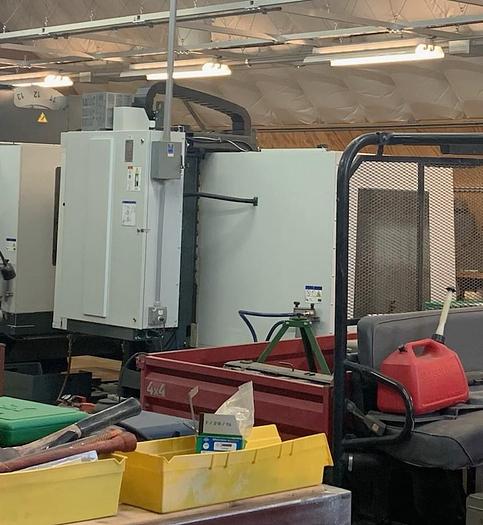

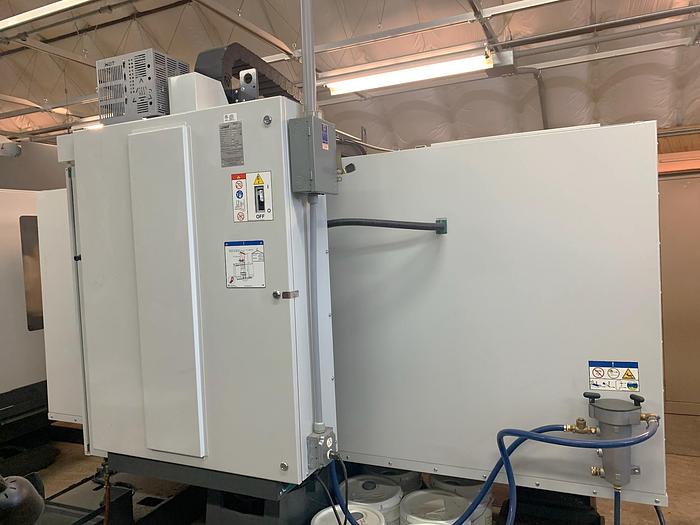

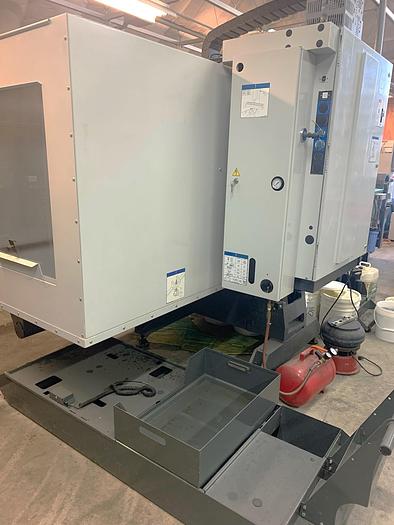

2019 Haas TM-2P w/ 4th Axis HA-5C Indexer
2019 Haas TM-2P w/ 4th Axis HA-5C Indexer
Contact us for price
Location:Texas
orCall (863) 439-6066
Description
Haas HA-5C Collet Indexer Unit
Manual 4" Tailstock for use with Indexer
Full Enclosure Sheet Metal Covers 10 Station Toolchanger High Flow Coolant Pump
Haas Visual Programming System
Early Power Failure Detection Module
Pull Studs for BT40 Taper Tooling Work Light
20 Gallon Flood Coolant System with Tank & Pump Vector Drive Spindle Brushless Servos All Axis'
Memory Key Lock Switch
15" Color LCD Monitor Direct Belt Drive
Standard 1GB Program Memory
USB Port Interface
Ethernet Interface RS 232 Port Interface
Wired 220V Three Phase Electrics ONLY
**Price New Today at $65,475**
**Manufactured New In July of 2019**
**Shop has closed, other available items include a 2019 Haas TL-1 lathe and 2019 Haas DM-2 VMC with 4th axis rotary table**
Specifications
| Manufacturer | Haas |
| Model | TM-2P w/ 4th Axis HA-5C Indexer |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119349 |
| Control | Haas CNC Control |
| Table Size | 57.75" x 10.5" |
| Maximum Table Load | 350 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 16" |
| Distance Spindle Nose to Table Top | 4" - 20" |
| Spindle Taper | BT 40 |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 7.5 HP |
| Tool Magazine Capacity | 10 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.5"/NA/12 lbs |
| Tool Change Time Chip to Chip | 5.7 Seconds |
| Rapid Traverse Rates | 400 IPM |
| Machine Dimensions LxWxH | 100"x64"x86" |
| Machine Weight | 4,000 lbs |
