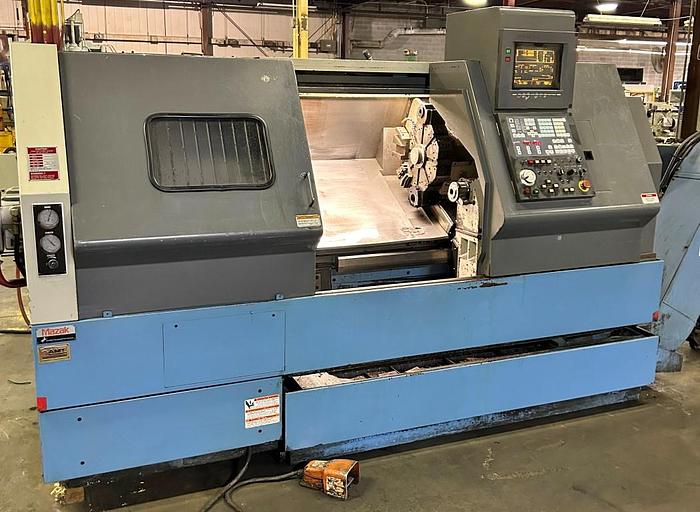

1997 Mazak QT30 Universal
No longer available
1997 Mazak QT30 Universal
$17,950 (USD)
Location:Ohio
Description

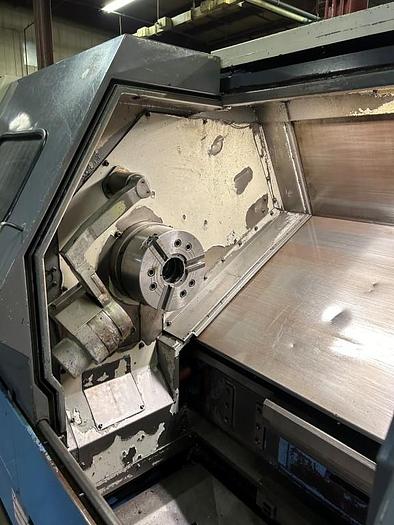

10" 3 Jaw Hydraulic Chuck
Programmable Tailstock
Chip Conveyor
Automatic Tool Eye
RS 232 Port Interface
Wired 230V Electrics
(2) Boring Holders
(2) Turning Holders
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | QT30 Universal |
| Year | 1997 |
| Condition | Used |
| Stock Number | 119346 |

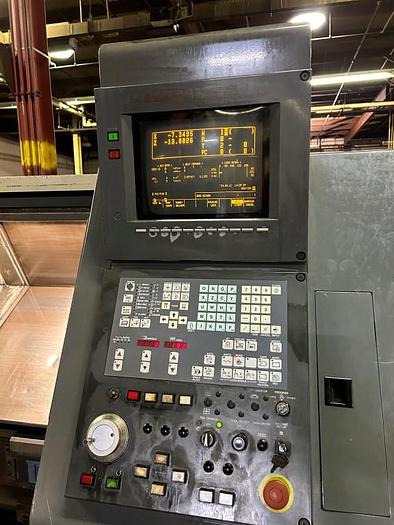

| Machine Control | Mazatrol T-Plus Control |
| Chuck size | 10" 3-Jaw Hydraulic Chuck |
| Maximum swing | 20" |
| Swing over cross slide | 15.75" |
| Maximum cutting diameter | 12.5" |
| Maximum cutting length | 39.4" |
| X-axis travel | 7.875" |
| Z-axis travel | 40.1" |
| Spindle nose / spindle bore | A2-8" / 3.15" |
| Spindle speed | 33 - 3,300 RPM |
| Spindle motor | 30 HP |
| Spindle torque | 318 ft. / lbs. |

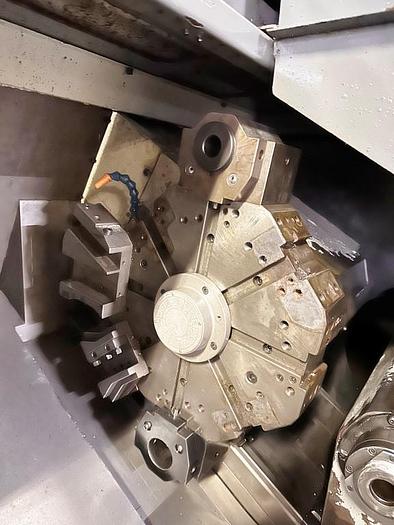

| Turret type | 8 Sided / 16 Positions |
| Rapid traverse x / z | 780 / 980 IPM |
| Tailstock quill dia. / travel | 3.94" / 5.10" |
| Machine dimensions | 135"x73"x73" |
| Machine weight | 12,540 lbs. |
