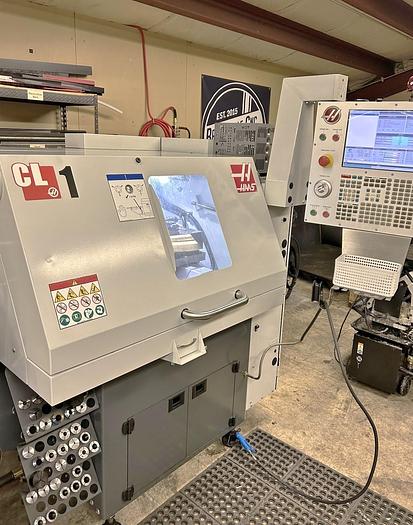

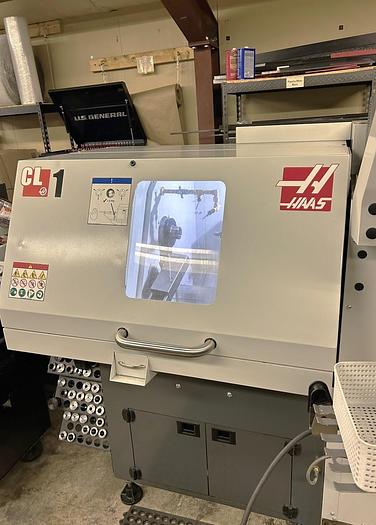

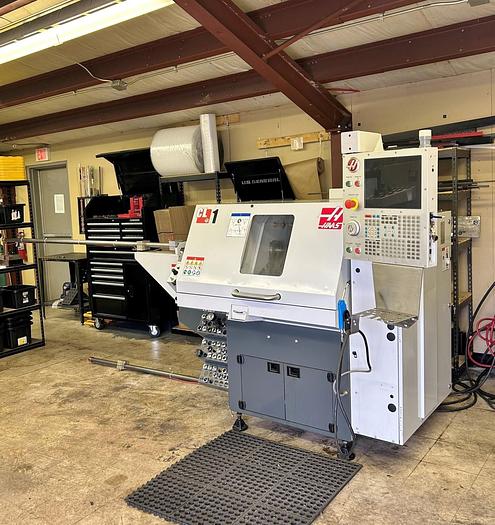

2018 Haas CL-1 w/ Live Tooling
2018 Haas CL-1 w/ Live Tooling
$39,950 (USD)
Ohio
Description
Live Tooling Option with C Axis

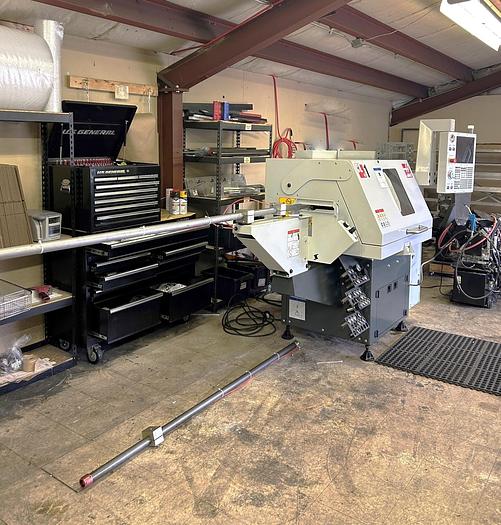

6' Fully Integrated Pneumatic Barfeeder
40" Barfeed for CL-1

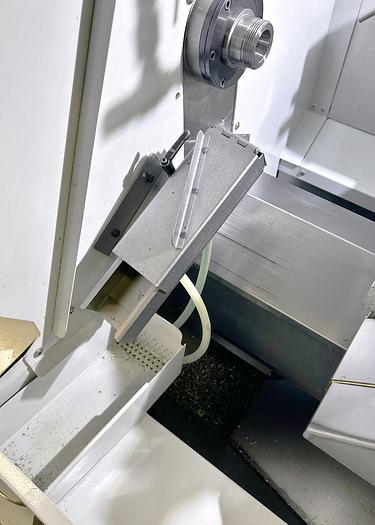

Parts Catcher
Spindle Orientation

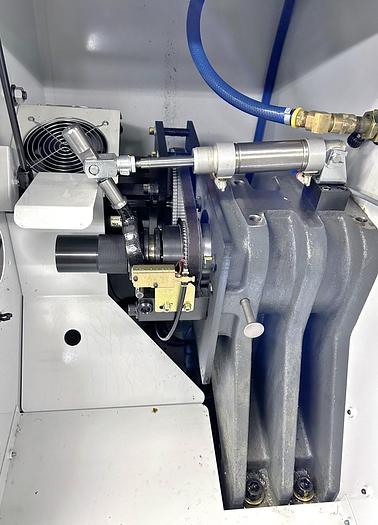

Auto Air Collet Closer

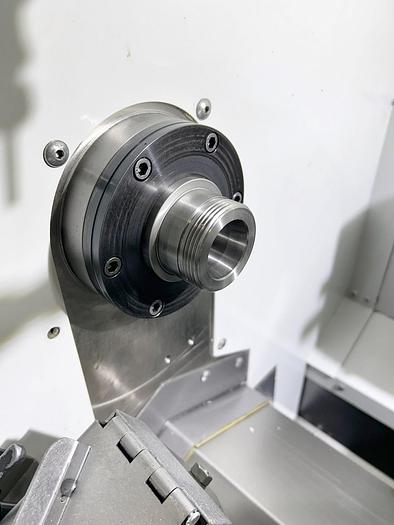

5C Collet Nose
4" 3 Jaw Manual Chuck

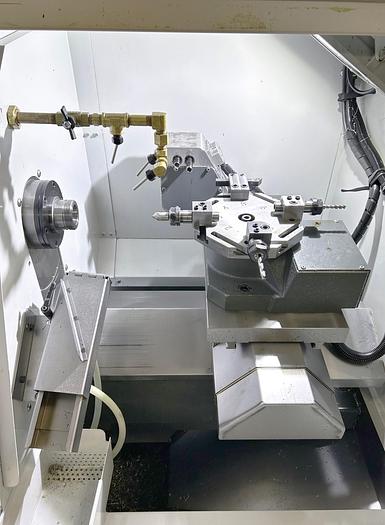

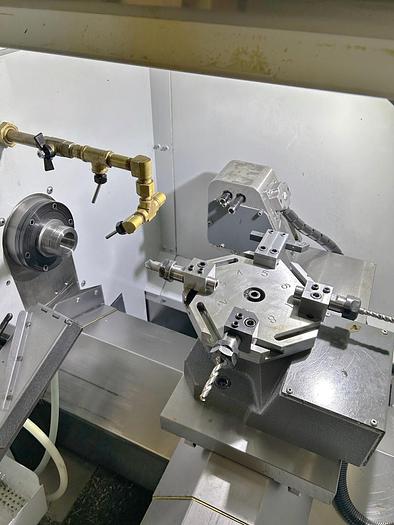

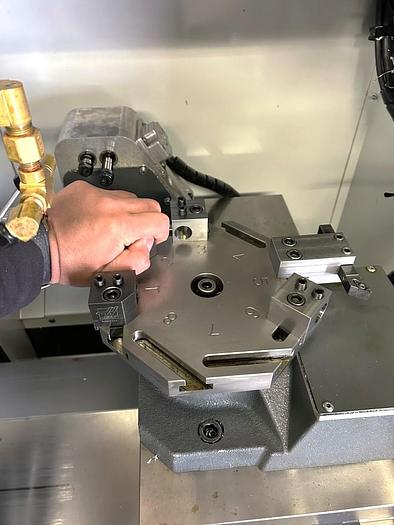

8 Station Turret
(2) ER-11 Milling Stations
Window Air Blast
Early Power Failure Detection System
Coolant Pump w/ 13 Gallon Coolant Tank
Rigid Tapping

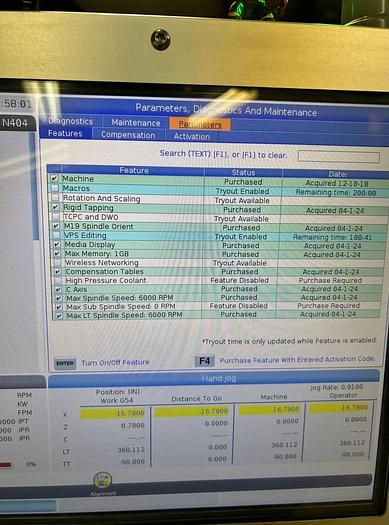

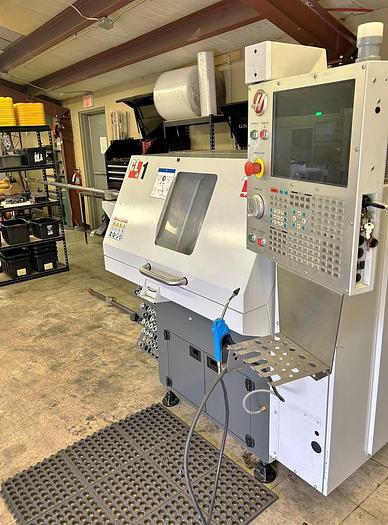

Haas CNC Control with 15" Color LCD Monitor
Ethernet Interface
USB Port Interface
1 GB Program Memory
Memory Lock Key Switch
Window Air Blast
Haas Drop
Haas Connect: Remote Monitoring
Media Display M-Code M130
Wifi Connection for Haas Control
Early Power Failure Detection Module
Tooling Includes:

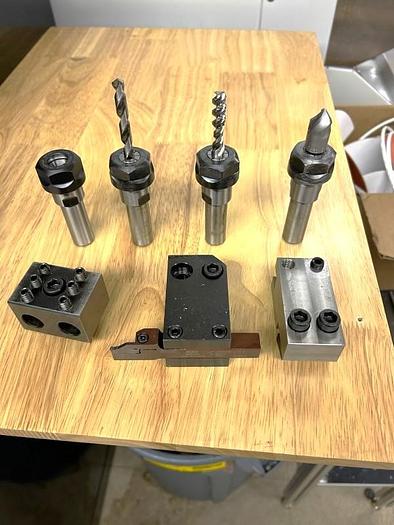

-Tool blocks as seen in photos
-Both 5C collet nose and 4" 3 jaw chuck

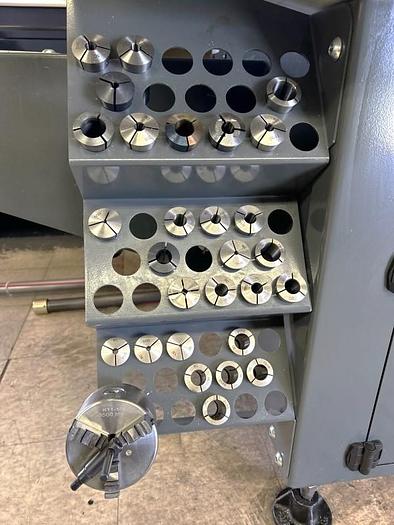

-Collets as seen on rack in photos
-Tooling inserts as seen in photos
-(2) Barfeed Units

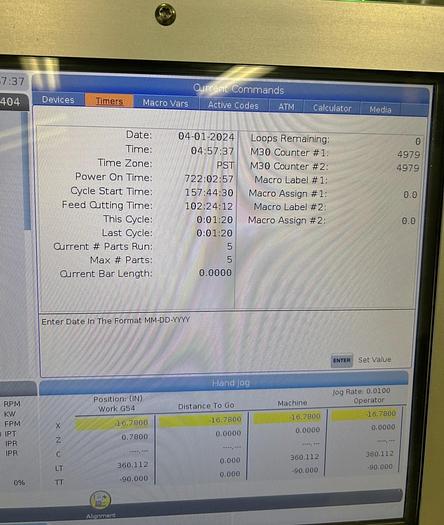

**ONLY 102 Cutting Hours as of April 2024**
*New Price as Equipped: $75,000
Specifications
| Manufacturer | Haas |
| Model | CL-1 w/ Live Tooling |
| Year | 2018 |
| Condition | Used |
| Stock Number | 119344 |
| Chuck Size | 5C Collet |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Machining Diameter | 5.0" |
| Maximum Machining Length | 8" |
| X-Axis Travel | 12" |
| Z-Axis Travel | 8" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Speed | 6,000 RPM |
| Spindle Nose / Spindle Bore / Bar Capacity | 5C Type / 1.25" / 1" |
| Spindle Motor | 5 HP |
| Turret Type | 8 Position Turret |
| Live Milling | Two ER-11 Milling Stations |
| Milling Spindle Speed | 6,000 RPM |
| Rapid Traverse Rates X/Z | 757 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 78" x 62" x 80" |
| Machine Weight | 2,240 lbs |
