2005 Hwacheon Cutex 240M
2005 Hwacheon Cutex 240M
Contact us for price
California
orCall (863) 439-6066
Description
C Axis Spindle Rotation
Live Milling / Drilling Capability

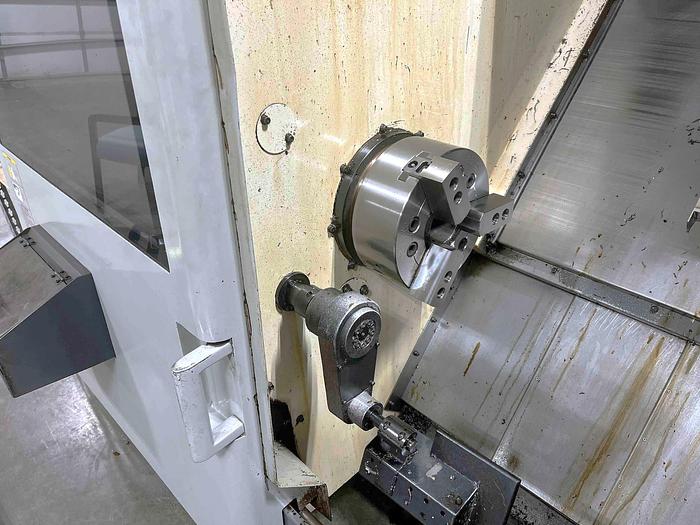

8" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Parts Catcher
Tailstock
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Tooling includes:
(x3) OD groove/turn holders(x3) boring bar holder“X” style insert OD holderZ live spindleRoyal brand bar puller“C” style insert OD holderAssorted inserts & boring bar bushingsExtra steel jaws
All Available Machine Manuals
**Built New in November 2005, installed in 2007**
Specifications
| Manufacturer | Hwacheon |
| Model | Cutex 240M |
| Year | 2005 |
| Condition | Used |
| Stock Number | 119341 |

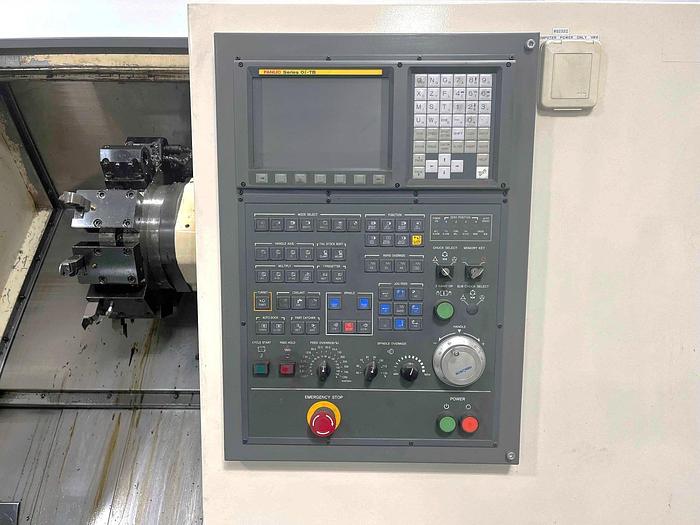

| Control | Fanuc 0i-TB |
| Chuck Sizes | 8" 3-Jaw Hydraulic |
| Maximum Swing | 22.8" |
| Maximum Cutting Diameter | 13.98" |
| Maximum Cutting Length | 26.14" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 2.95" / 2.56" |
| Spindle Speed | 5,000 RPM |
| Spindle Motor | 25 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 5 HP |

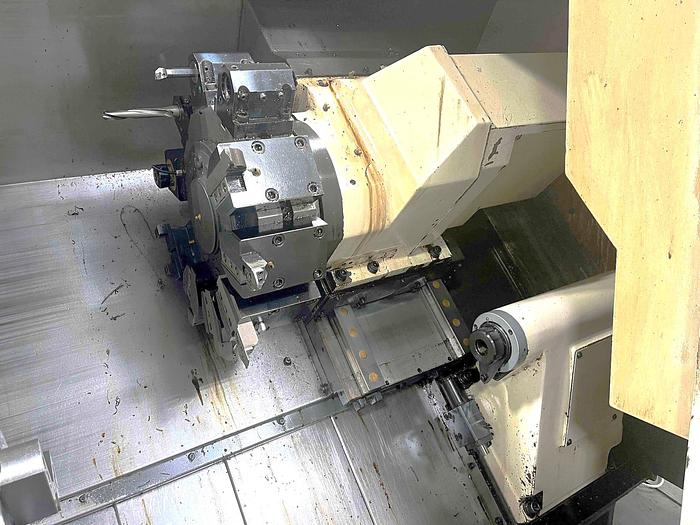

| Number of Turret Positions | 10 Station Turret |
| Machine Dimensions | 152" x 84" x 93" |
| Machine Weight | 9,300 lbs. |
