2011 Haas SL-40LB
2011 Haas SL-40LB
Contact us for price
Location:Alberta, Canada
orCall (863) 439-6066
Description
Long Bed Option
Big Bore Spindle Option with 7.0" Bore

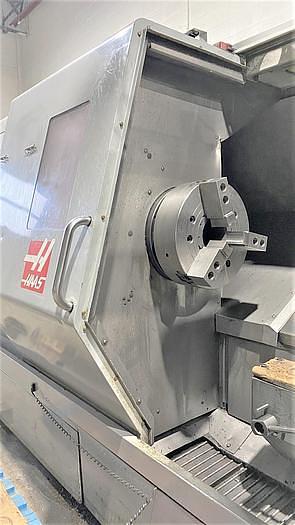

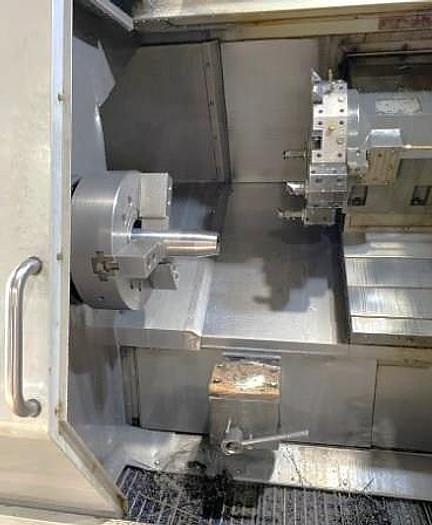

18" 3 Jaw Hydraulic Chuck

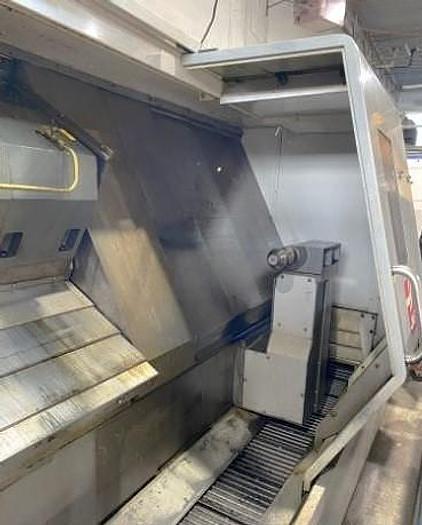

Programmable Tailstock
Steady Rest Provision (base only)
Haas Extra Performance Option Package with Upgraded 55 HP Spindle Motor
2 Speed Gearbox
High Pressure Coolant - 1,000 PSI
Chip Conveyor
Rigid Tapping
RS 232 Port Interface
Coolant System with Tank & Pump

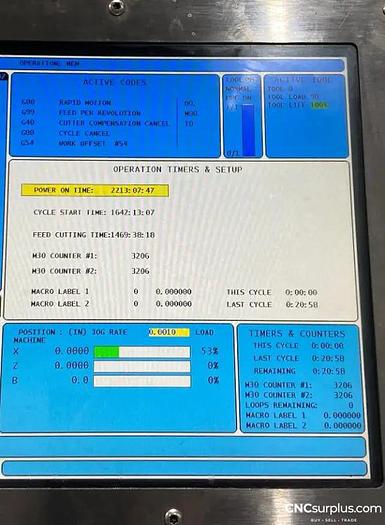

**2,213 Power On Hours**
**1,647 Cycle Start Hours**
**ONLY 1,469 Feed Cutting Hours**
Specifications
| Manufacturer | Haas |
| Model | SL-40LB |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119331 |

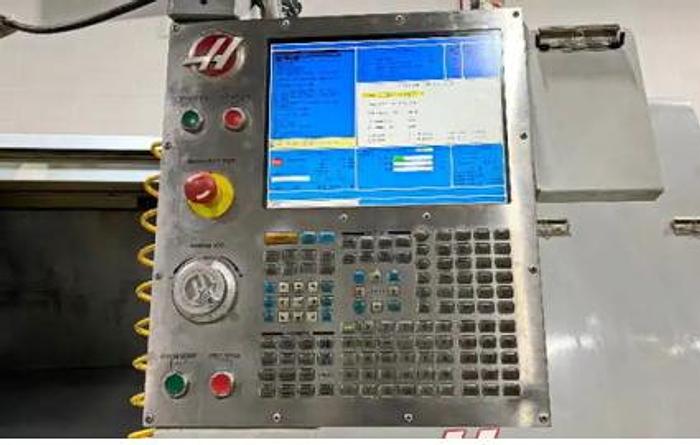

| Control | Haas CNC Control |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Cutting Diameter | 25.5" |
| Maximum Cutting Length | 80" |
| Maximum Distance Between Centers | 81" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 80" |
| Spindle Nose / Spindle Bore | A2-11" / 7.0" |
| Spindle Speeds | 1,400 RPM |
| Spindle Motor | 55 HP |

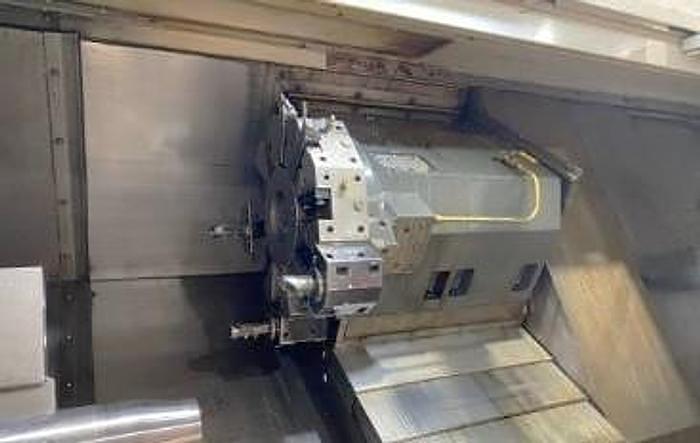

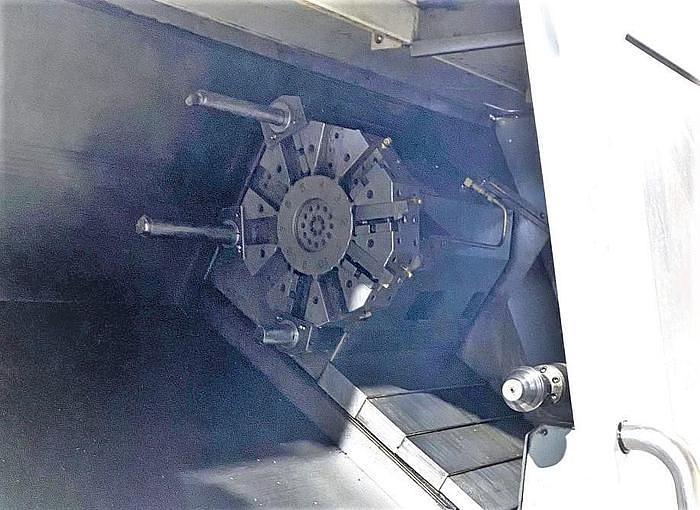

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Tailstock Taper | 74" / MT #5 |
| Machine Dimensions | 216"x92"x96" |
| Machine Weight | 31,000 lbs |
