2002 Vectrax GSN20V
2002 Vectrax GSN20V
Contact us for price
Location:Florida
Description
Power Draw Bar
Coolant System

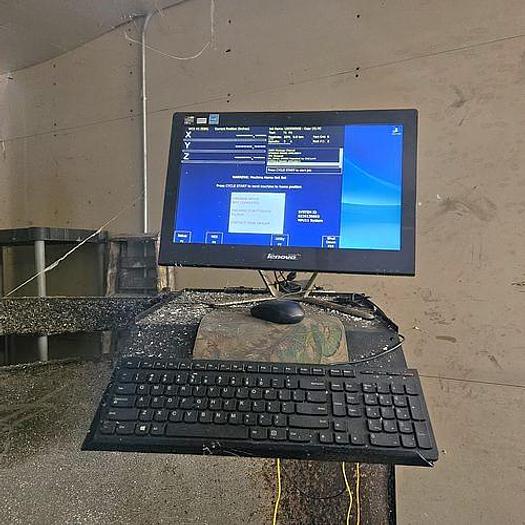

Upgraded Centroid Control in 2014

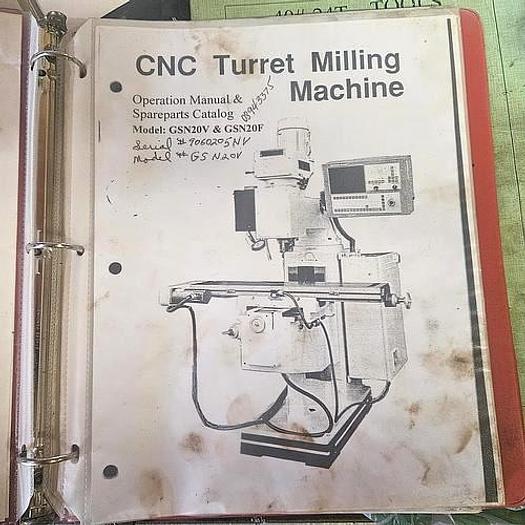

All Available Manuals

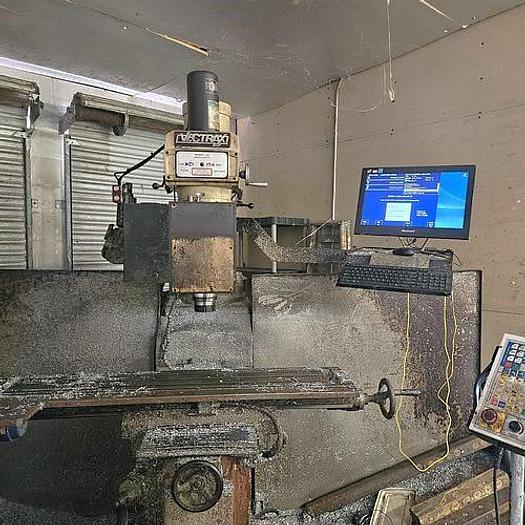

The 2002 Vectrax GSN20V is a used CNC Vertical Machining Center, ideal for precision machining tasks. It features a Centroid control system and a sizable 54" x 10" table, providing an extensive working area. The machine allows for versatile and efficient operations with a 32" X-axis travel and a 16.5" Y-axis travel, coupled with substantial flexibility owing to a 19" knee travel and 6" quill travel. Its robust engineering includes a 4.13" quill diameter and an 18" ram travel. The machining center is powered by a 5 HP motor and achieves a spindle speed of up to 3,600 RPM with an NT30 spindle taper, making it capable of handling a variety of materials. The machine's dimensions are 80" in length, 72" in width, and 87.75" in height, with an overall weight of 5,000 lbs, indicating a durable and stable design. This Vectrax model is a reliable choice for shops requiring accurate and consistent machining performance.
Specifications
| Manufacturer | Vectrax |
| Model | GSN20V |
| Year | 2002 |
| Condition | Used |
| Stock Number | 119321 |
| Machine Control | Centroid |
| Table Size | 54" x 10" |
| X-Axis Travel | 32" |
| Y-Axis Travel | 16.5" |
| Knee Travel | 19" |
| Quill Travel | 6" |
| Quill Diameter | 4.13" |
| Ram Travel | 18" |
| Spindle Speed | 3,600 RPM |
| Spindle Taper | NT30 |
| Spindle Motor | 5 HP |

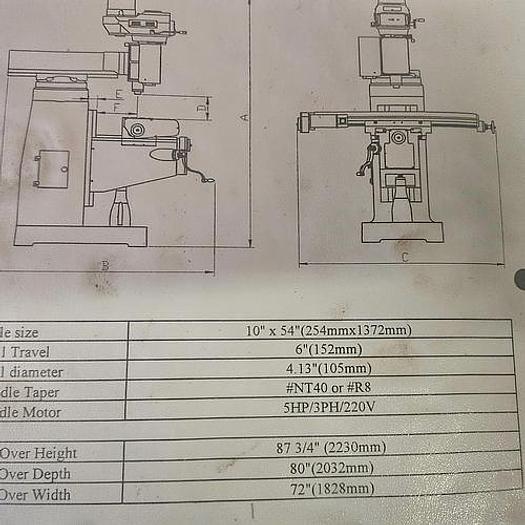

| Machine Dimensions LxWxH | 80" x 72" x 87.75" |
| Machine Weight | 5,000 lbs |
