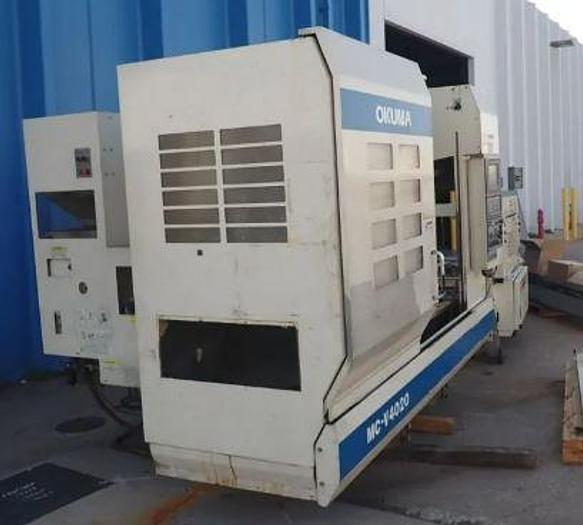

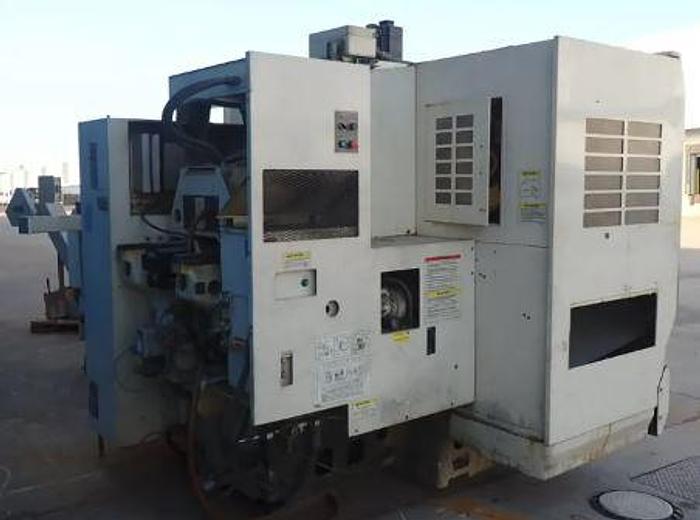

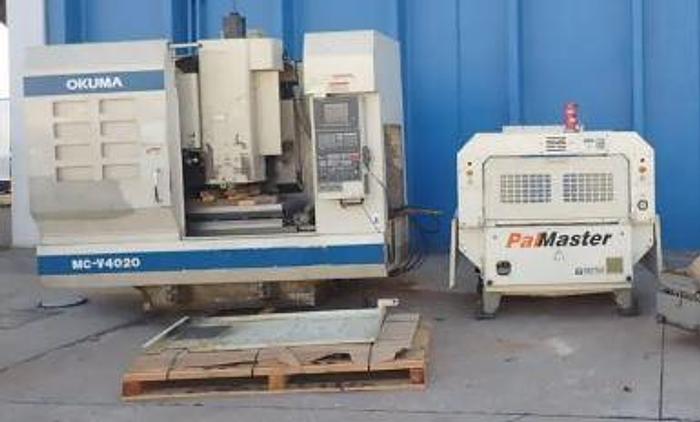

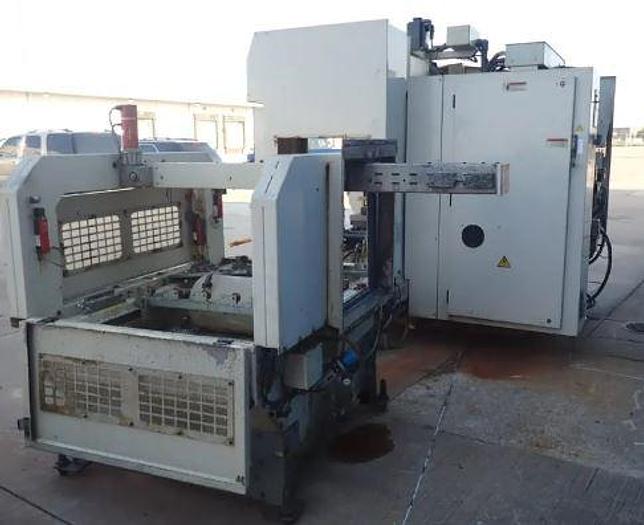

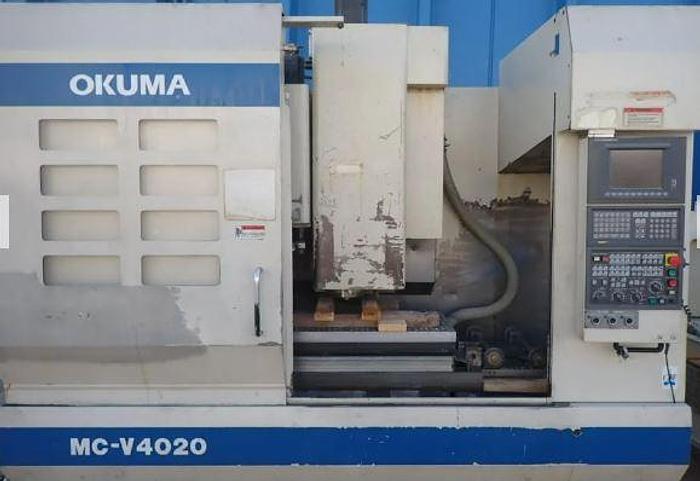

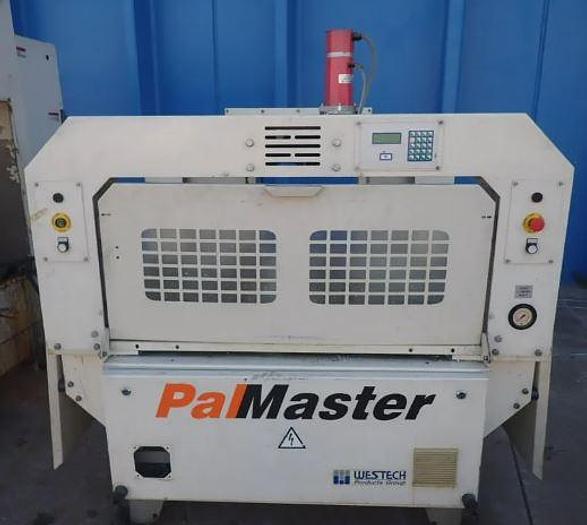

2002 Okuma MC-V4020 w/Pallet Table
2002 Okuma MC-V4020 w/Pallet Table
Contact us for price
Texas
orCall (863) 439-6066
Description
Remote Jog Handle
Coolant Thru the Spindle 1,000 PSI

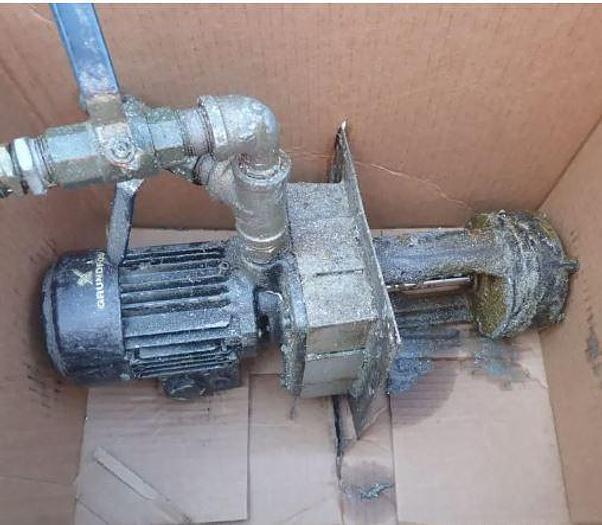

Coolant System with Pump
RS 232 Port Interface
Machine 3 Color Status Condition Lights
Wired 220V Electrics
All Available Manuals
Mfg Date 12/2002
Not under power, removed from service
**30 Day MDNA Warranty**
Specifications
| Manufacturer | Okuma |
| Model | MC-V4020 w/Pallet Table |
| Year | 2002 |
| Condition | Used |
| Stock Number | 119311 |

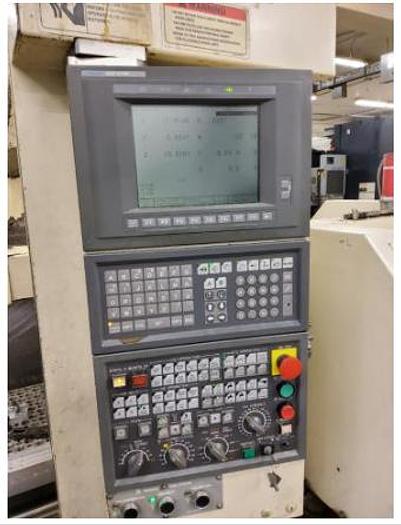

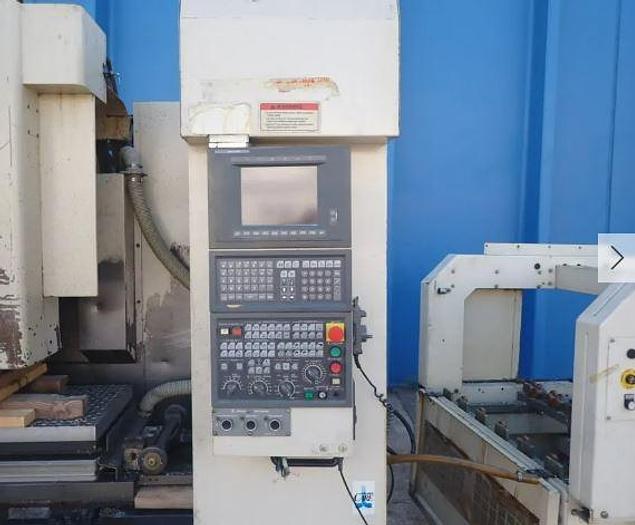

| Machine Control | OSP-U100M |
| Table Size | 48" x 20" |
| Maximum Table Load | 1,500 lbs |
| X-axis travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 17.7" |
| Spindle Speed | 8,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 15 HP |
| Distance Spindle Nose to Table Top | 6.3" - 24" |

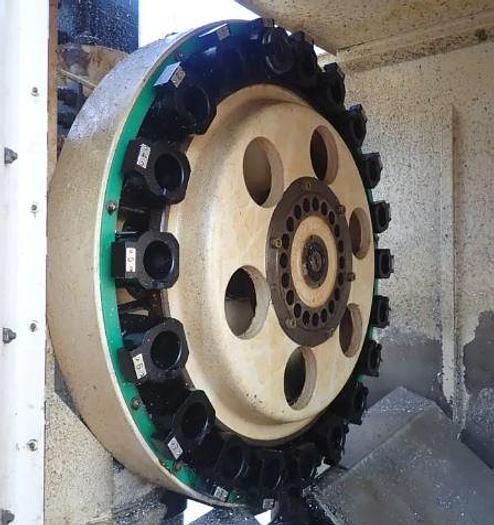

| Tool Magazine Capcity | 20 Position ATC |
| Maximum Tool Diameter / Length / Weight | 4.92" / 11.8" / 18 lbs |
| Rapid Traverse Rates (X, Y, Z) | 1417, 1417 / 1191 ipm |
| Machine Dimensions LxWxH | 114"x100"x90" w/o pallet table |
| Machine Weight | 16,305 lbs |
