2022 Haas VR-11B
2022 Haas VR-11B
$320,000 (USD)
Location:Michigan
Description
5 Axis Machining Capability

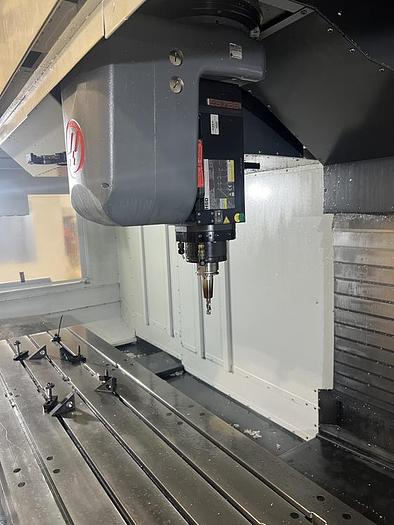

B Axis Tilt Head
C Axis Head Rotation
50 Station Tool Changer
20,000 RPM Spindle with HSK A63 Spindle
Haas Wireless Intuitive Probing - Renishaw
Large Remote Jog Handle
High Speed Machining
X & Y Linear Scales
64 GB Memory Expansion
8 Spare M Functions
High Speed Machining
Rigid Tapping
Coordinate Rotation & Scaling
User Definable Macros
Spindle Orientation
Auger Style Chip Conveyor
95 Gallon Coolant Tank
CNC Control Cabinet Cooler
Dynamic Work Offsets and Tool Center Point Control
8" Extended Z Axis Clearance
Haas Remote Monitoring
Haas Drop
2nd Home Position
Lifting Provisions
Media Display by M-Code M130
M-Code/MFIN Cable Assembly
Chip Tray Filter Kit
Probe Riser Block

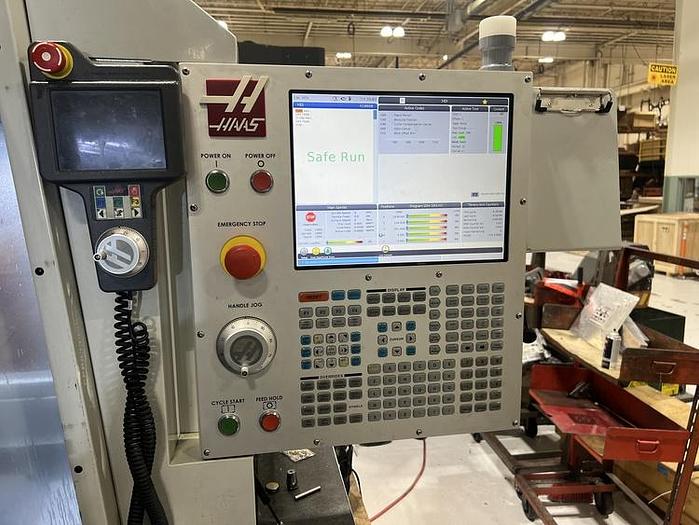

Control Touch Screen
Variable Flow Coolant
Auto Door for Mill

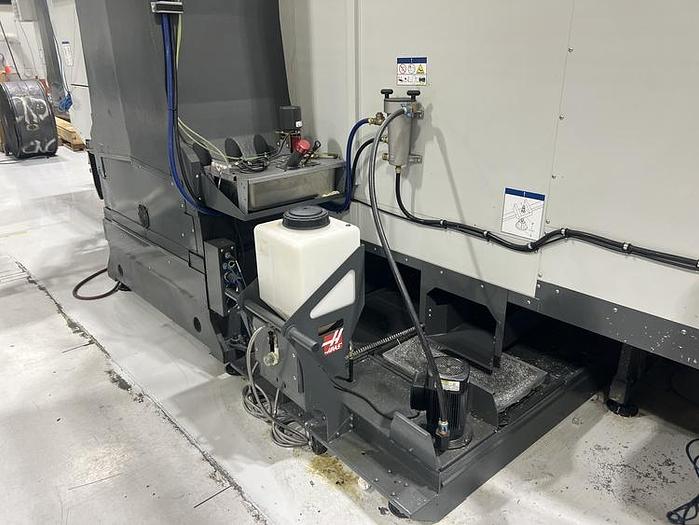

Automatic Coolant Refill
Haas Chip Lift
High Intensity Lighting - 24V
Coolant Mist Condensor
Window Air Blast
Early Power Failure Detection Module
USB Port Interface
Hard Drive
3.5" Floppy Disk Interface
RS 232 Port Interface
**ONLY 800 Cycle Time Hours**
**Transferable Warranty Good Through December 2024**
Specifications
| Manufacturer | Haas |
| Model | VR-11B |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119306 |

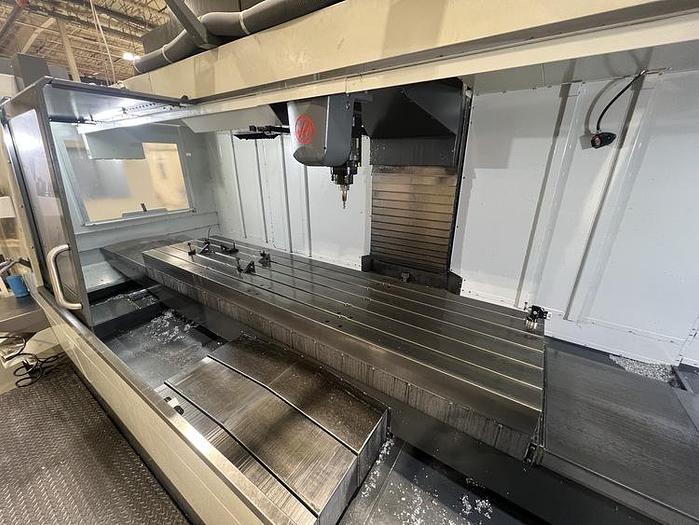

| Table Size | 120" x28" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 120" |
| Y-Axis Travel | 40" |
| Z-Axis Travel | 30" |
| B-Axis Tilt Movement | 120 Degrees to -120 Degrees |
| C-Axis Head Rotation | 245 Degrees to -245 Degrees |
| Distance Spindle Nose to Table Top | 4" - 34" |
| Spindle speed | 20,000 RPM |
| Spindle Taper | HSK A63 |
| Spindle Motor | 25 HP |
| Tool Magazine Capacity | 50 Station Side Mounted ATC |
| Rapid Traverse Rates X / Y, Z | 360 IPM / 600 IPM |
| Machine Dimensions LxWxH | 288"x123"x140" |
| Machine Weight | 34,000 lbs |
