2022 Haas VF4SS with Haas TRT210 5th Axis Trunnion Table
No longer available
2022 Haas VF4SS with Haas TRT210 5th Axis Trunnion Table
Wisconsin
Description

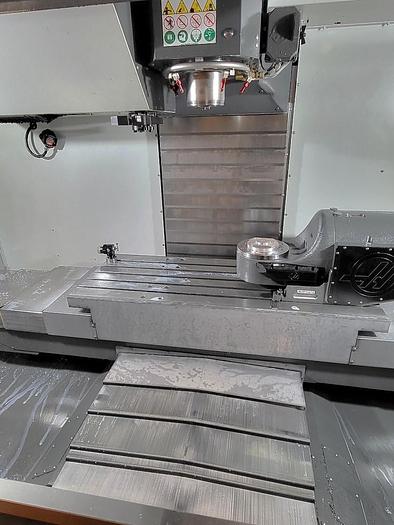

Haas TRT210 Trunnion Style Rotary/Tilt Table
Haas 4th Axis Interface
Haas 5th Axis Interface
30+1 Position Side Mounted Tool Changer
Haas Wireless Intuitive Probing Package - Renishaw
Coolant Through the Spindle - 300 PSI
Auger Style Chip Conveyor
High Speed Machining
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Large Remote Jog Handle
Programmable Coolant Nozzle
Dynamic Work Offsets

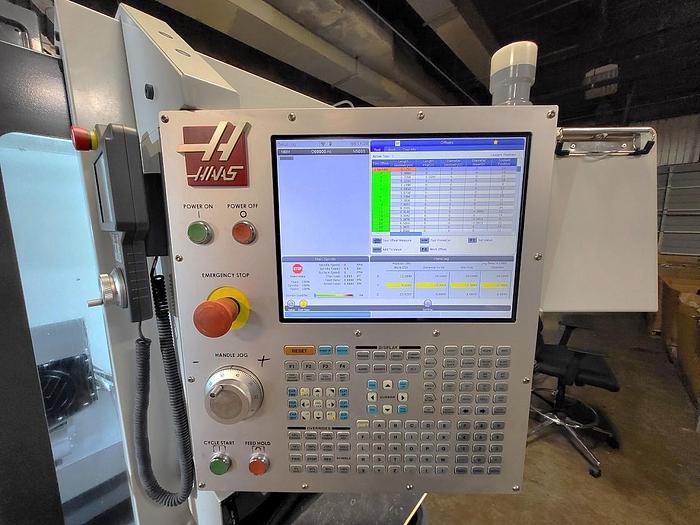

15" Color LCD Monitor
1 GB Program Storage
Chip Tray Filter Kit
Rigid Tapping

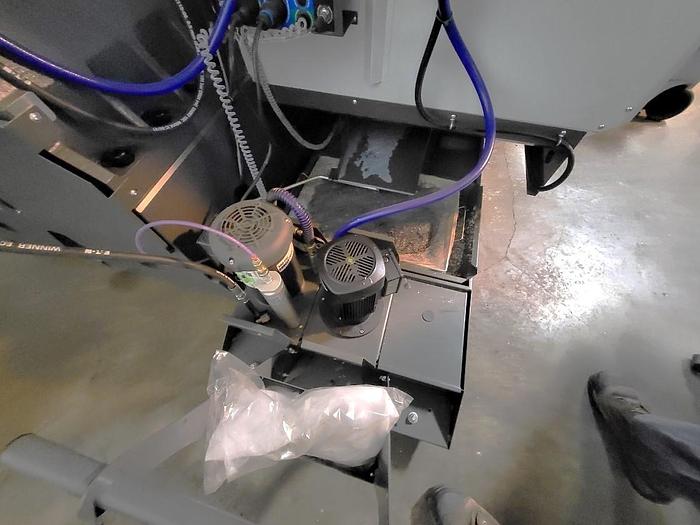

Coolant System with Tank & Pump
Inline Direct Drive 12,000 RPM Spindle
WiFi Connection
Wired 220V Electrics
USB Port Interface
RS 232C Port Interface for DNC Operation
**Price New as equipped today at $172,000**
Specifications
| Manufacturer | Haas |
| Model | VF4SS with Haas TRT210 5th Axis Trunnion Table |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119303 |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 30 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
