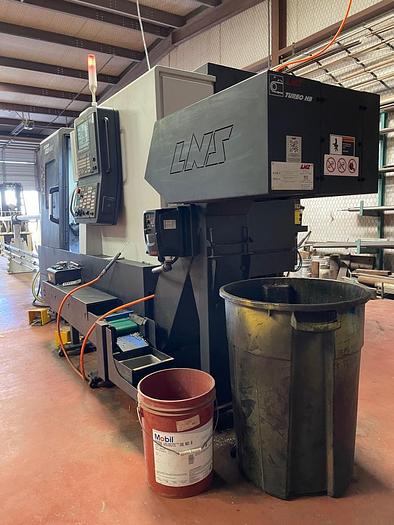

2019 Doosan Lynx 2100LSYA with Rhino Single Tube Barfeed
No longer available
2019 Doosan Lynx 2100LSYA with Rhino Single Tube Barfeed
$114,900 (USD)
Location:Texas
Description
Subspindle
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

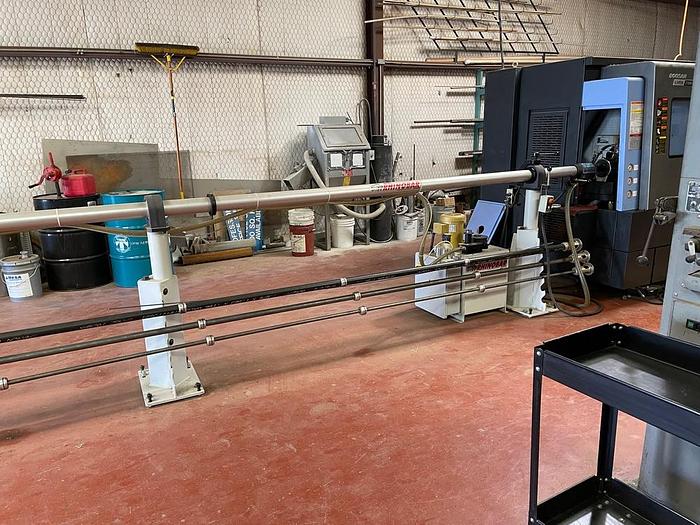

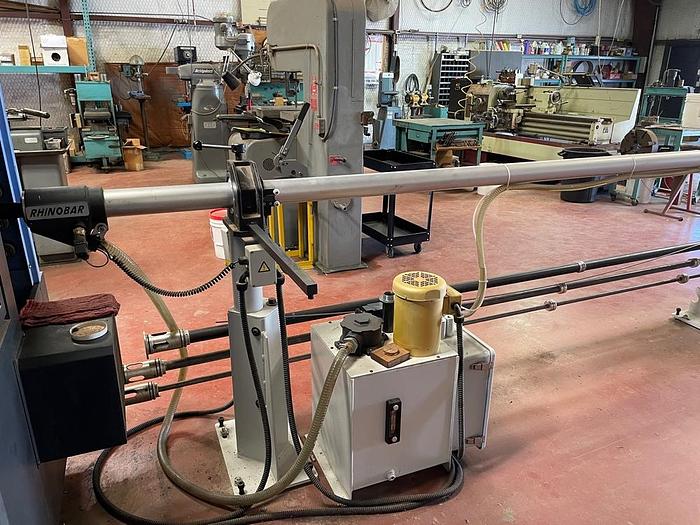

Mini Rhinobar 12' Single Tube Barfeeder
Parts Catcher
Chip Conveyor
Auto Tool Presetter
6.89" 3 Jaw Hydraulic Chuck on Main Spindle
5" 3 Jaw Hydraulic Chuck on Subspindle
Specifications
| Manufacturer | Doosan |
| Model | Lynx 2100LSYA with Rhino Single Tube Barfeed |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119300 |
| Machine Control | Fanuc i Series Control |
| Chuck size main / subspindle | 6.89" / 5" Hyd Chks |
| Maximum swing over bed | 23.6" |
| Maximum turning diameter | 11.8" |
| Maximum turning length | 20.1" |
| Maximum bar capacity | 2.00" |
| X-axis travel | 8.1" |
| Y-axis travel | 4.13" |
| Z-axis travel | 22" |
| B-axis travel - subspindle | 22" |
| C axis spindle rotation | .001 Degree |
| Spindle nose / spindle bore | A2-5" / 2.4" |
| Spindle speed - 1 range | 40 - 6,000 RPM |
| Spindle motor | 20 HP |
| Subspindle bore | 1.77" |
| Subspindle speed / motor | 6,000 RPM / 7.5 HP |
| Rotary tool motor / speeds | 5 HP / 6,000 RPM |
| Turret type - all live capable | 12 Position Turret |
| Rapid traverse rates x, b / z | 1181 PM / 1417 IPM |
| Machine dimensions lxwxh | 114" x 77" x 68" |
| Machine weight | 9,150 lbs |
