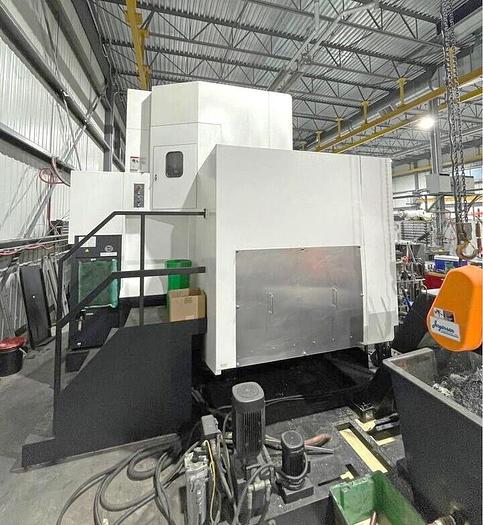

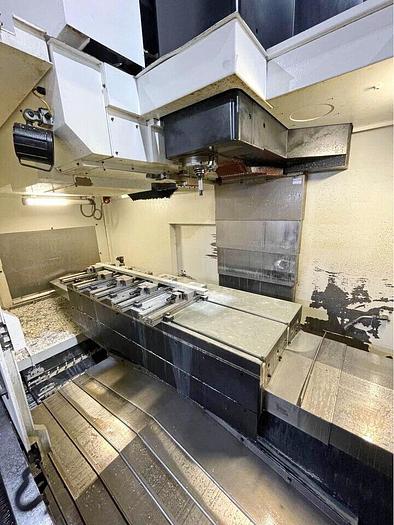

2013 Mazak Nexus VCN 700E/40-II
No longer available
2013 Mazak Nexus VCN 700E/40-II
$149,500 (USD)
Location:Quebec City, Canada
Description
40 Position Side Mounted Tool Changer Chip Conveyor Automatic Tool Length Measurement System with Renishaw OTS Tool Probe
Renishaw OMP-60 Part Probe 213 PSI Coolant Through the Spindle Remote Jog Handle EIA/ISO Input Function
EIA 3D
EIA Helical Tap Cycle
EIA Pattern Cycle
Tilted Work Plane
Pitch Error Compensation Rigid Tapping
Spiral Interpolation
Coordinate Rotation & Scaling
Geometric
External Data Input/Output
Shape Compensation
Threading
Polar Coordinate Inputs
G54.1
Comparison Stop
G00 Slope Constant
Variable 600 Sets Flood Coolant RS 232 Port Interface Mazak 2D Software PCMCIA 2 Slots 12.1" Color LCD Monitor Load Detection
Multi Tap Transformer
Miscellaneous Tool Holders All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Nexus VCN 700E/40-II |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119298 |
| Control | Mazatrol Matrix Nexus |
| Table Size | 80" x 27.5" |
| Maximum Weight on Table | 5,511 lbs. |
| Distance Spindle Nose to Table Top | 7.87" - 36.22" |
| X-Axis Travel | 80" |
| Y-Axis Travel | 27.5" |
| Z-Axis Travel | 25.6" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 30 HP |
| Spindle Torque | 222.7 ft./lbs. |
| Number of Tool Positions | 40 Station Tool Changer |
| Maximum Tool Length / Weight | 17.7" / 44 lbs. |
| Tool Change Time Tool to Tool | 1.3 seconds |
| Rapid Traverse Rates X, Y / Z | 1182 IPM / 790 IPM |
| Cutting Feedrates | 1182 IPM |
| Machine Dimensions | 196" x 139" x 143" |
| Machine Weight | 28,430 lbs. |
