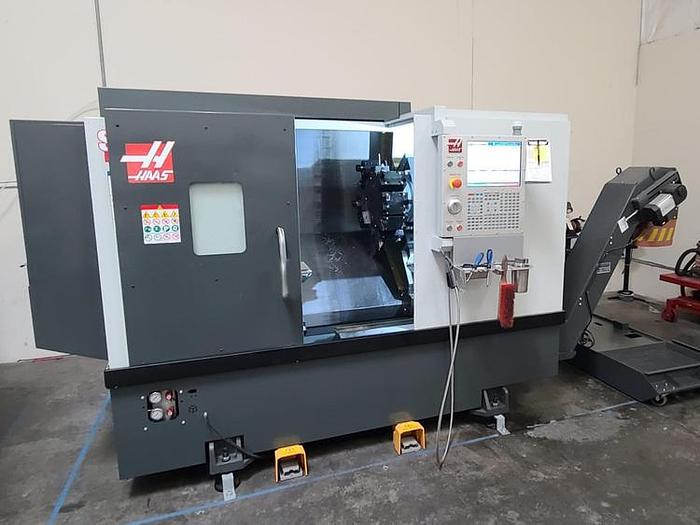

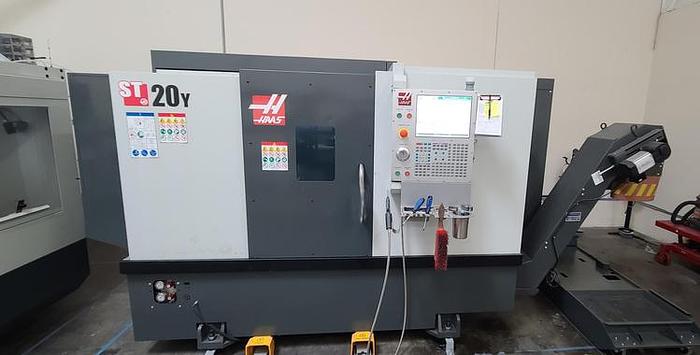

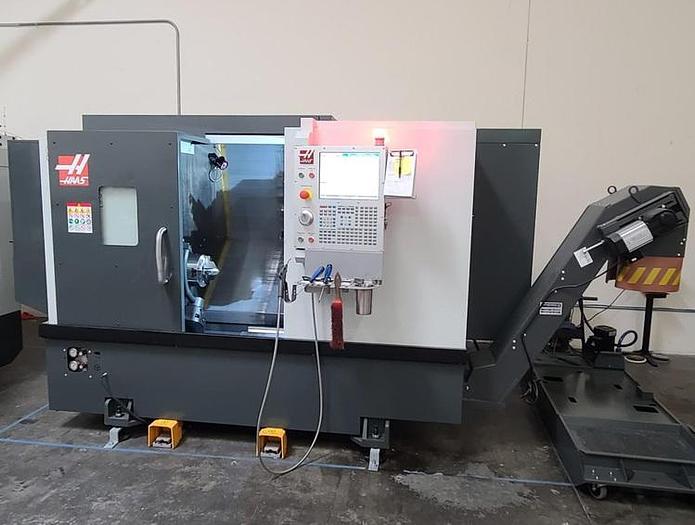

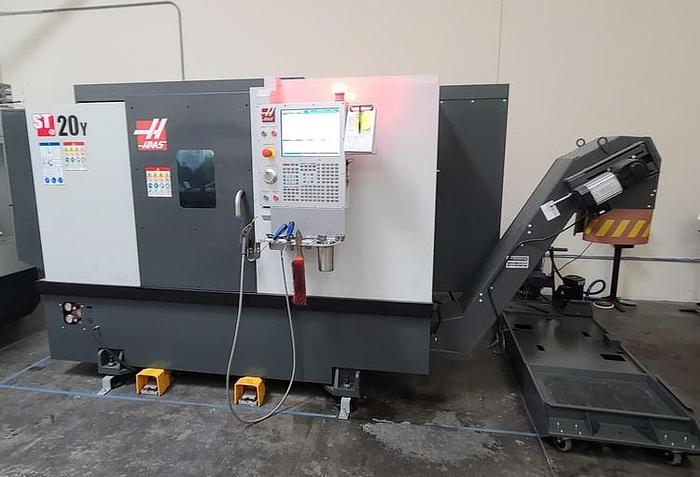

2021 Haas ST-20Y Chucker

2021 Haas ST-20Y Chucker

$109,950 (USD)


orCall (863) 439-6066


C Axis Spindle Rotation

Live Milling/Drilling Capability

Y Axis Capability

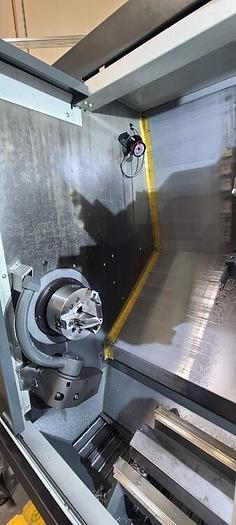

8.3" 3 Jaw Hydraulic Chuck

Haas Wireless Intuitive Probing System (Renishaw)

Chip Conveyor

Tool Presetter

Auxiliary Coolant Filter System

Haas Visual Part Programming System

User Definable Macros

Spindle Orientation

CNC Control Cabinet Cooler

Internal High Voltage Isolated Transformer

Media Display M Code M130

Haas Connect

1 GB Program Storage

Rigid Tapping

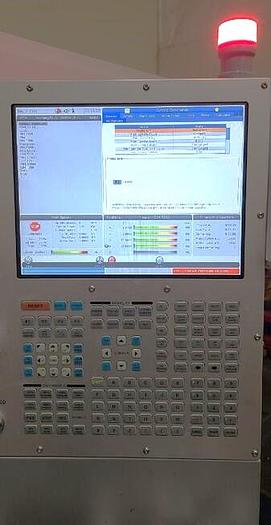

15" LCD Color Monitor

Early Power Failure Detection Module

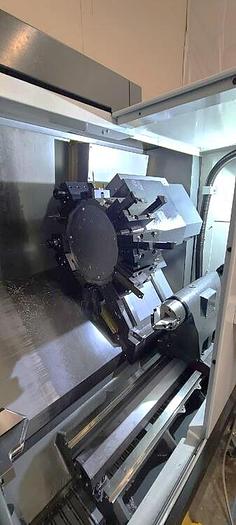

24 Station BMT Turret

Memory Lock Key Switch

Wifi Capability

Ethernet Interface

USB Port Interface

RS 232 Port Interface

All Available Tool Blocks

**Less than 800 Spindle Hours**

**Price Out New As Equipped at $116,154 with current Haas Discounting, Regular Price $144,112**


Stock Number119268

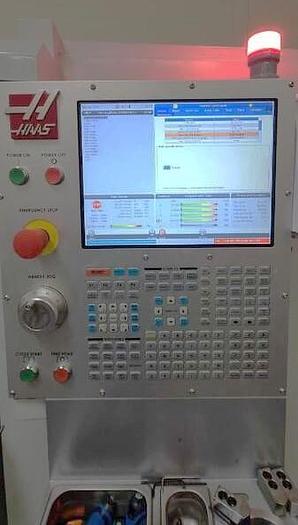

Machine ControlHaas NextGen Control
Chuck Size8.3" 3-Jaw Hydraulic Chuck
Maximum Swing31.75"
Maximum Swing Over Cross Slide21"
Maximum Machining Diameter12"
Maximum Machining Length21"
Maximum Bar Capacity2.0"
X-Axis Travel8.4"
Y-Axis Travel+/- 2.0"
Z-Axis Travel22.5"
C Axis Spindle Rotation0.01 Degree
Spindle Nose / Spindle BoreA2-6" / 3.5"
Spindle Speeds4,000 RPM
Spindle Motor20 HP
Rotary Tool Speed / Rotary Motor4,000 RPM / 5 HP
Number of Turret Positions24 Station - BMT65 Type
Rapid Traverse Rates X, Y / Z472 IPM / 945 IPM
Tailstock TaperMT #4
Machine Dimensions LxWxH142" x 90" x 92"
Machine Weight10,480 lbs.
