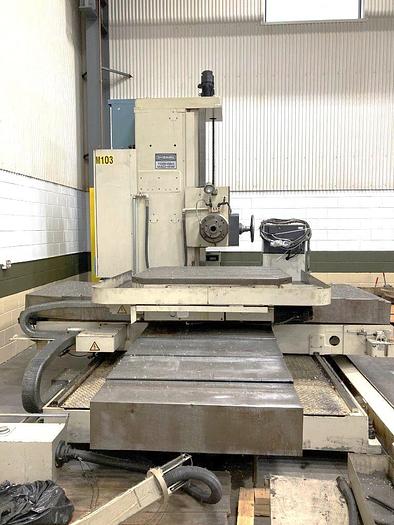

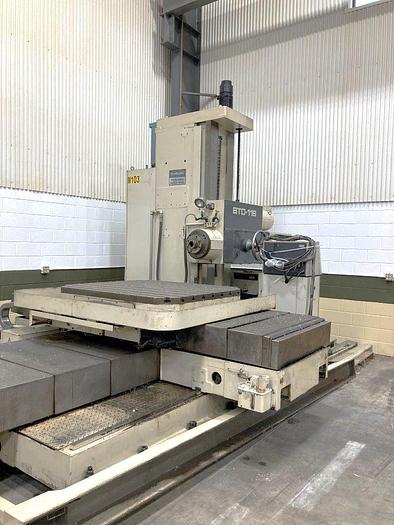

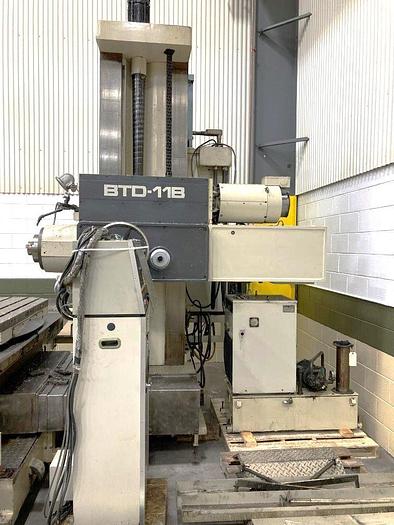

1988 Toshiba BTD-11B-R3 Table Type HBM

1988 Toshiba BTD-11B-R3 Table Type HBM

$59,500 (USD)

Location:New York, NY

or
Call (863) 439-6066

Description

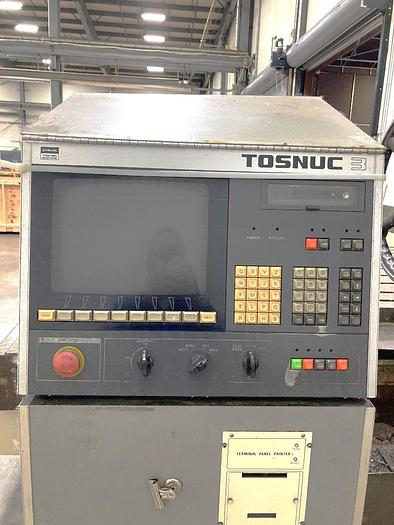

Tosnuc 3 CNC Control

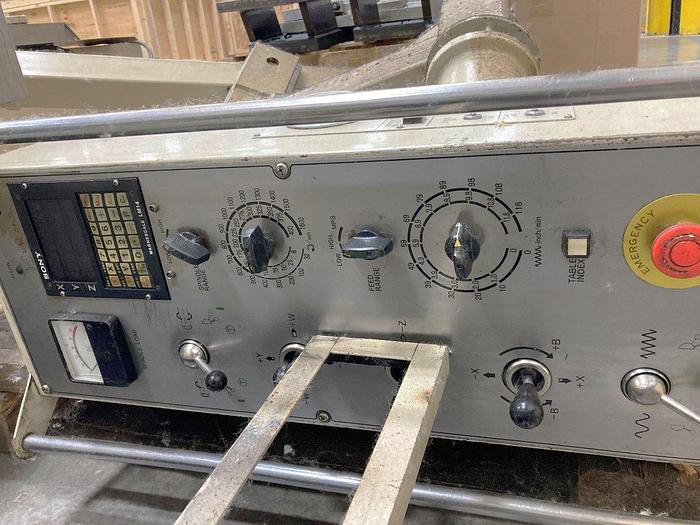

Full Pendant Operation

B-Axis Rotary Table

Auger Style Chip Conveyor under Table

Chip Conveyor - Lift Up Type

Shot Pin Every 90 Degrees

Coolant Guarding Around Table

Way Covers

Coolant System with Tank & Pump


*No Tool Changer*

**Very Good Operating Condition, See Video**

Show All

Specifications

ManufacturerToshiba
ModelBTD-11B-R3 Table Type HBM
Year1988
ConditionUsed
Stock Number119267
Table Size55.12" x 62.99"
Maximum Weight on Table13,860 lbs.
X-Axis Travel78.74"
Y-Axis Travel59"
Z-Axis Travel51"
W-Axis Travel25"
Spindle TaperCAT #50
Spindle Speeds1,600 RPM - Variable
Spindle motor20 HP
Spindle Diameter4.33"
Rapid Traverse Rates394 IPM
Cutting Feedrates157 IPM
Machine Dimensions232" x 187"
Machine Weight58,300 lbs.
