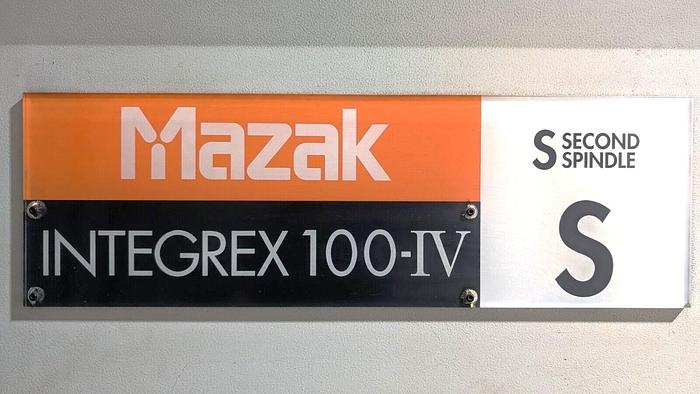

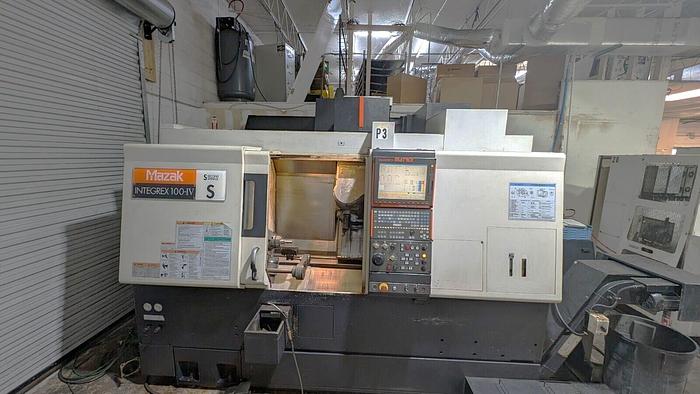

2006 Mazak Integrex 100-IVS Multi Axis Mill Turn Center - PRICE DROP!!
2006 Mazak Integrex 100-IVS Multi Axis Mill Turn Center - PRICE DROP!!
Location:Florida
Description

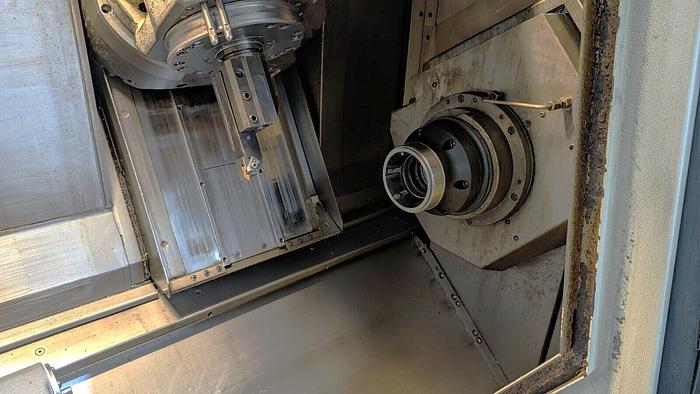

Y-axis Capabiliity Subspindle C Axis 0.0001 Degree Increment - Main Live Milling/Drilling Capability 40 Station Tool Magazine

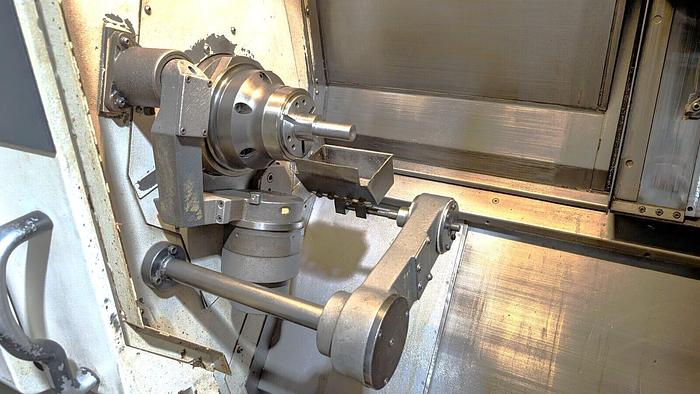

Royal Quick Change Collet Chuck for Main Spindle
Royal Quick Change Collet Chuck for Subspindle Automatic Tool Eye Automatic Parts Catcher Chip Conveyor

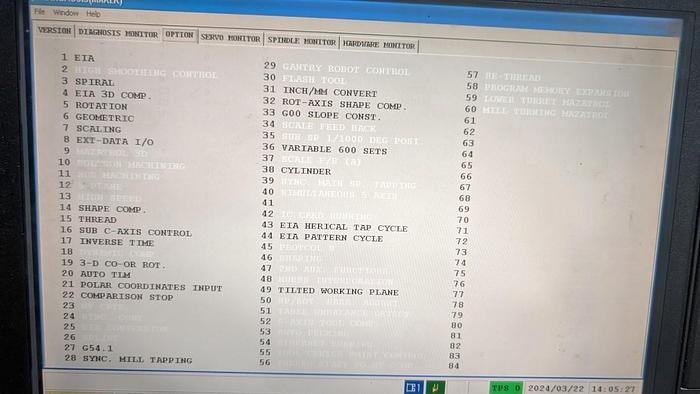

Mill Spindle Synchronous Tapping EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tapping Cycle
EIA Pattern Cycle
Tilted Work Plane
3D Coordinate Rotation
Threading
Sub C Axis Control Coolant Through Milling Head 2nd Spindle Position 0.001 degree B Axis Head Index 5 degree by Clamp Auto Chuck Jaws Open and Close
Inverse Time
Cylinder
Polar Coordinates Input
Variable 600 Sets
G54.1
G00 Shape Const.
Comparison Stop
Spiral Interpolation
Shape Compensation
Rotary Axis Shape Compensation
Rotation & Scaling
Geometric Windows XP Operating System for Mazak Auto Power Off 15” Color LCD Monitor Inch/Metric Conversion LAN Port Interface
Cardbus Interface (2 slots) USB Port Interface

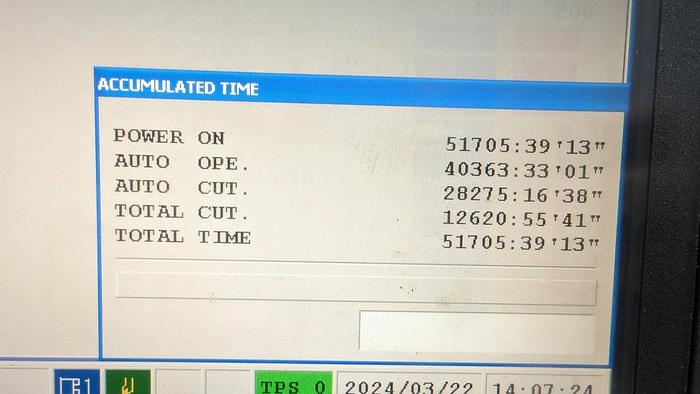

**Total Cutting Hours 12,620**
Specifications
| Manufacturer | Mazak |
| Model | Integrex 100-IVS Multi Axis Mill Turn Center - PRICE DROP!! |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119256 |

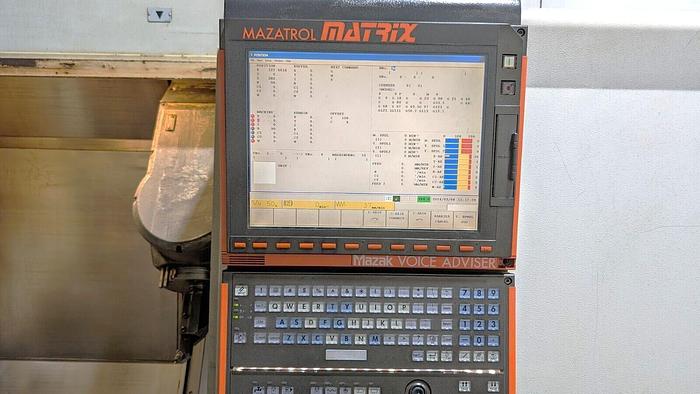

| Control | Mazatrol Matrix w/ Voice Advisor |
| Chuck Sizes Main / Subspindle | Royal Quick Change Collet Chucks on both spindles |
| Maximum Swing | 21.46" |
| Maximum Swing Using Y Axis | 16.22" - 21.46" |
| Maximum Swing Over Cross Slide | 13.86" |
| Maximum Swing Over Lower Turret | 15.75" |
| Maximum Cutting Diameter - Chucking | 21.46" Upper Turret |
| Maximum Machining Length | 29.65" |
| Maximum Distance Between Chuck Faces | 28.9" |
| B-Axis Tilt Movement | 225 Degrees |
| C-Axis Spindle Rotation - Both Spindles | 0.0001 Degrees |
| X-Axis Travel Upper Turret / Lower Turret | 16.14" / 8.66" |
| Y-Axis Travel Upper Turret ONLY | +/- 2.75" |
| Z-Axis Travel Upper Turret / Lower Turret | 31.69": / 30.71" |
| W-Axis Subspindle Travel | 31.3" |
| Main & Subspindle Nose / Bore | A2-5" / 2.4" |
| Main & Subspindle Speeds | 6,000 RPM |
| Main & Subspindle Motor | 15 HP / 10 HP |
| Number of Tool Positions | 40 Station Tool Changer |
| Number of Turret Positions | 1 Position Turret |
| Turret Spindle Type | KM63 |
| Rotary Tool Speed / Rotary Motor | 12,000 RPM / 7.5 HP |
| Machine Dimensions | 121.06" x 97.73" x 88.3" |
| Machine Weight | 18,078 lbs. |
