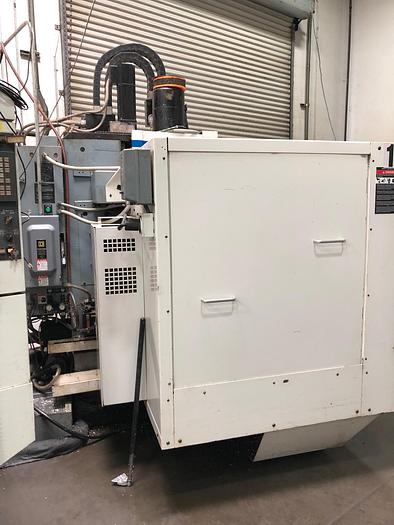

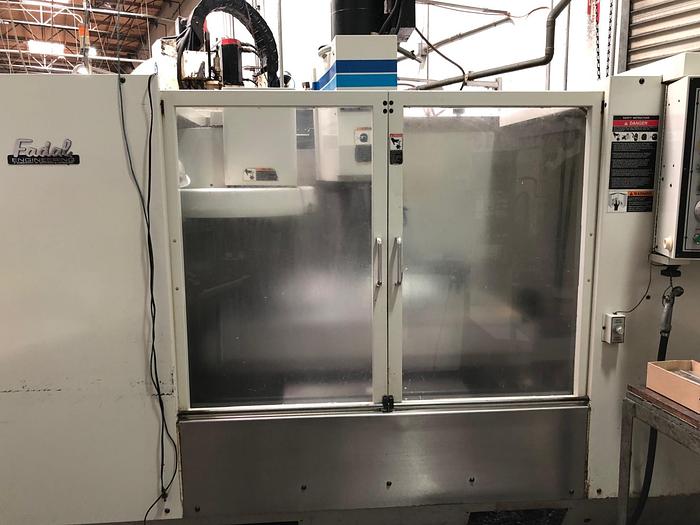

1997 Fadal VMC5020A HT
No longer available
1997 Fadal VMC5020A HT
$15,950 (USD)
Location:California
Description
Boxed Ways

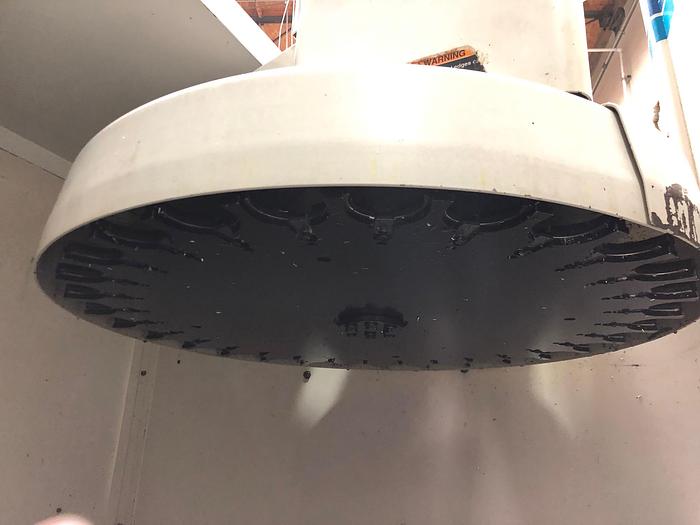

30 Station Umbrella Style Tool Changer

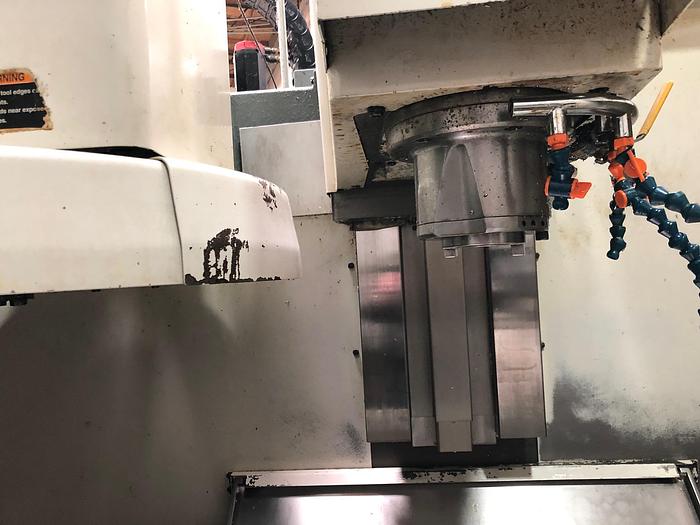

10,000 RPM Spindle 2 Speed Spindle Drive High Torque 22.5 HP Spindle Rigid Tapping
422k Memory
Thru the Spindle Coolant RS 232 Port Interface
Wired 230V/440V 3-Phase 60 Cycle
Installed in 1998
Specifications
| Manufacturer | Fadal |
| Model | VMC5020A HT |
| Year | 1997 |
| Condition | Used |
| Stock Number | 119255 |

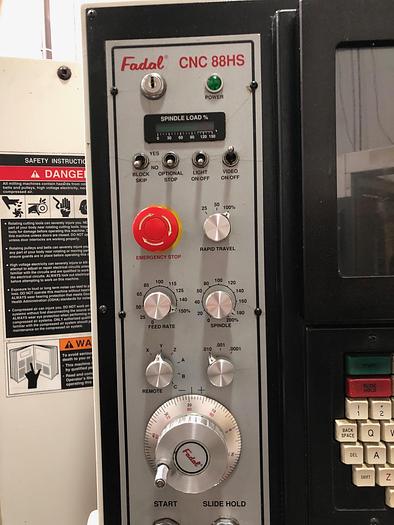

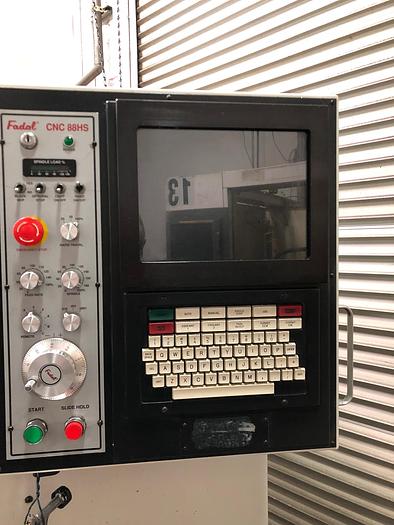

| Control | Fadal 88 HC |
| Table Size | 57" x 20" |
| Maximum Table Load | 3,600 lbs |
| X-Axis Travel | 50" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10 - 10,000 RPM |
| Spindle Motor | 22.5 HP |
| Spindle Torque | 120 ft. lbs |
| Tool Magazine Capacity | 30 atc |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 900 ipm, 900 ipm, 700 ipm |
| Machine Dimensions LxWxH | 116"x87"x104" |
| Machine Weight | 11,500 lbs |
