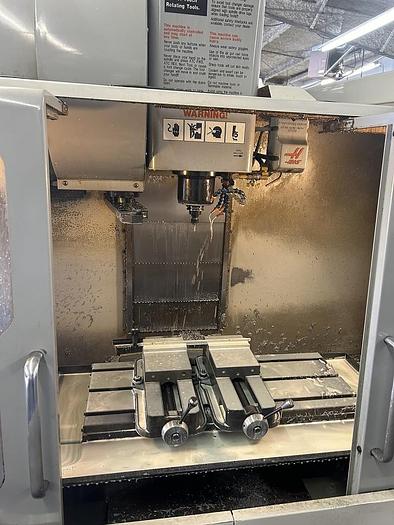

2005 Haas VF-2D
No longer available
2005 Haas VF-2D
Location:California
Description
24 Station Side Mount Tool Changer
Programmable Coolant Nozzle
Auger Style Chip Conveyor
Wired for 4th Axis
Remote Jog Handle
Visual Quick Code Programming
Rigid Tapping
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Brushless Servo Motors
Coolant System with Tank & Pump
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
195-260V / 3 Phase / 60 HZ
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF-2D |
| Year | 2005 |
| Condition | Used |
| Stock Number | 119250 |
| Table Size | 36"x14" |
| Maximum Table Load | 3,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Distance Spindle Nose to Table Top | 4"-24" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 7,500 RPM |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 24 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Rapid Traverse Rates | 1,000 IPM |
| Machine Dimensions LxWxH | 88"x92.5"x104" |
| Machine Weight | 8,000 lbs |
