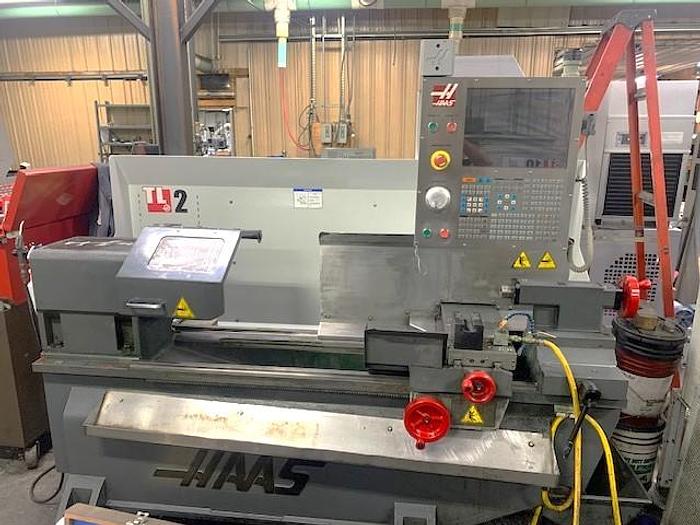

2010 Haas TL-2
2010 Haas TL-2
Contact us for price
Indiana
orCall (863) 439-6066
Description

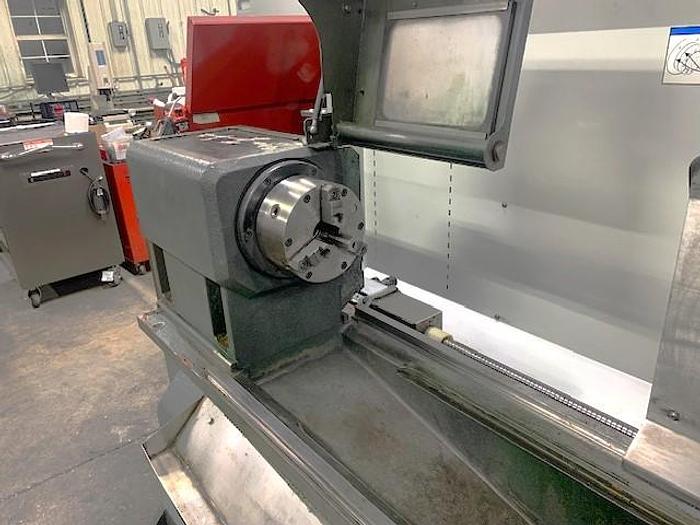

8" 3 Jaw Manual Chuck
4 Jaw Manual Chuck
Tailstock with Live Center
Upgraded A2-6" Spindle Nose with 3.5" Spindle Bore
Manual Hand Wheels Coolant System with Tank & Pump Integral Chip-Flow Channel Flip Down Chuck Guard Safety Enclosure 1 MB Program Memory
3.5" Floppy Disk Interface RS 232 Port Interface Vector Drive Spindle

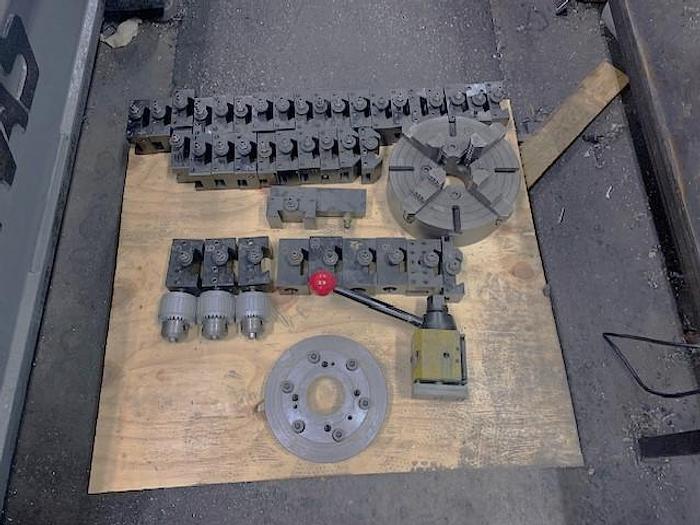

Abundance of Tool Blocks
(3) Jacob Drill Chucks
**Machine Can Run Either 240V Single Phase or 208V Three Phase Power**
**Spindle Hours 6,250**
Specifications
| Manufacturer | Haas |
| Model | TL-2 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 119247 |

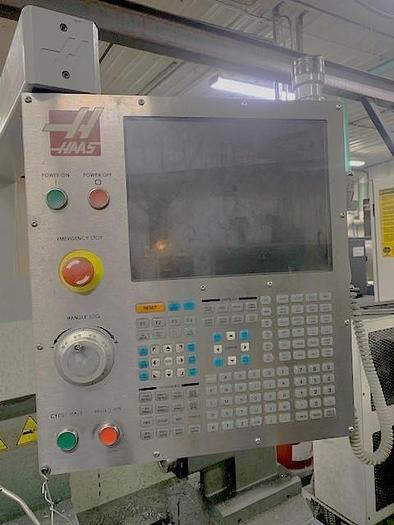

| Control | Haas CNC Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 12 HP |
| Number of Turret Positions | Tool Post |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 100" x 55" x 80" |
| Machine Weight | 5,000 lbs. |
