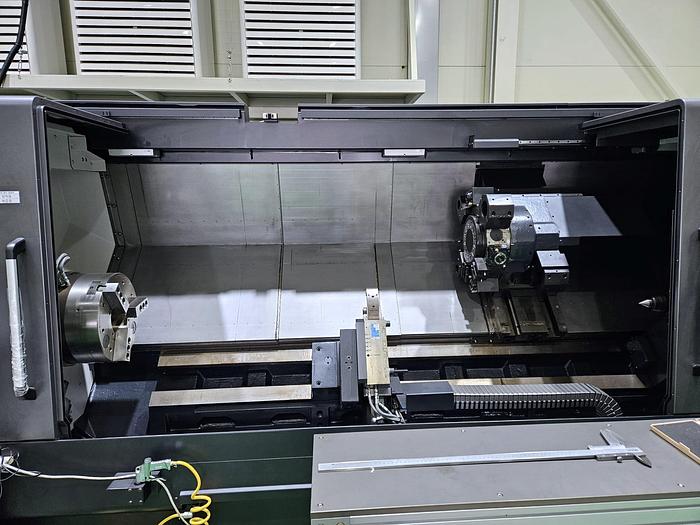

2020 Doosan Puma 5100XLMB
No longer available
2020 Doosan Puma 5100XLMB
$349,500 (USD)
Location:Illinois
Description

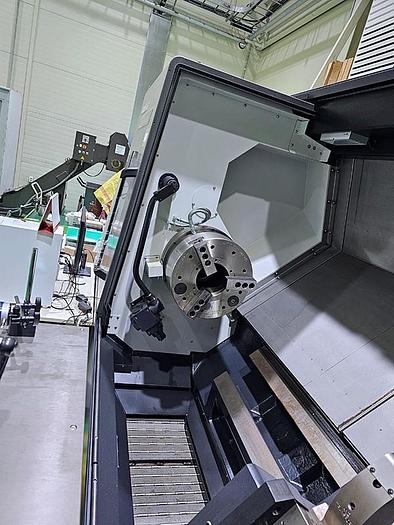

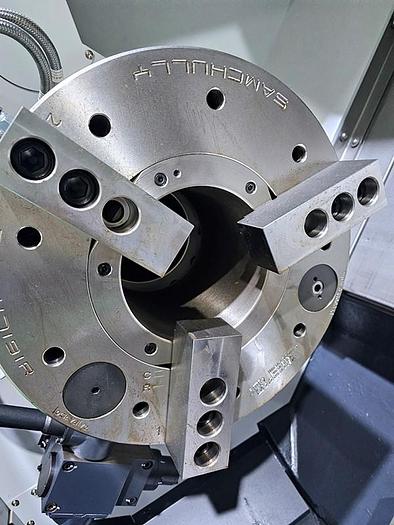

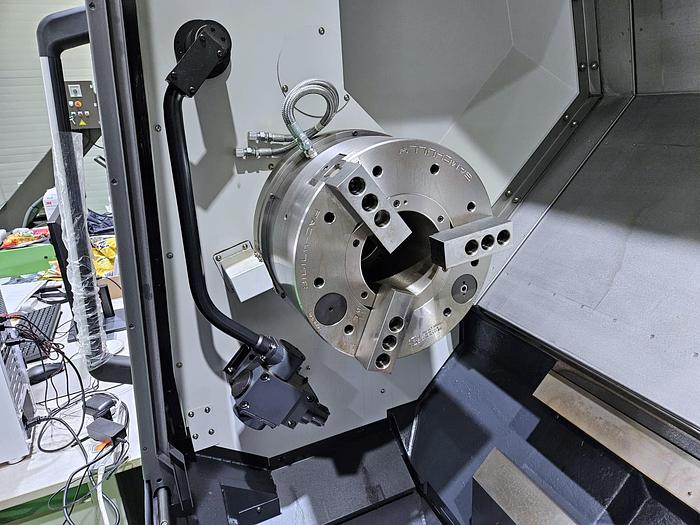

Chip Conveyor 18.5" Samchully Model 47191R 3 Jaw Air Chuck with 7.5" Bore
Steady Rest Provision

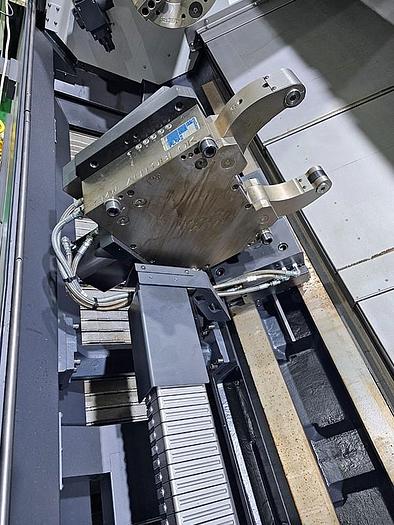

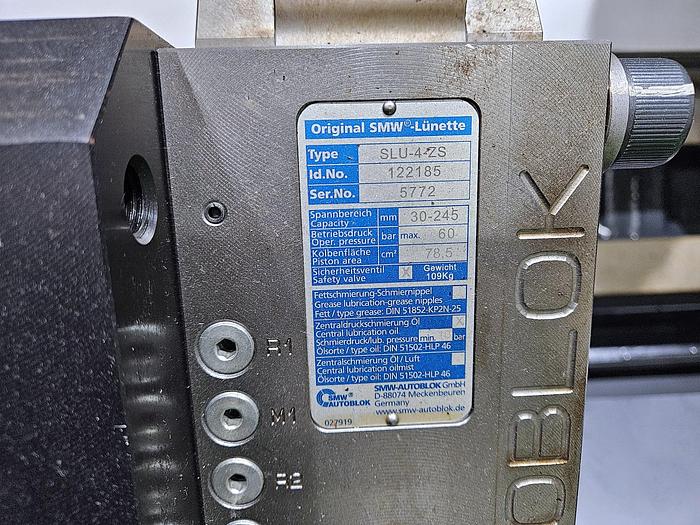

SMW Autoblok Model SLU-4-ZSHydraulic Steady Rest Programmable Tailstock
Tool Presetter 2 Speed Gearbox
Card Interface RS 232 Port Interface

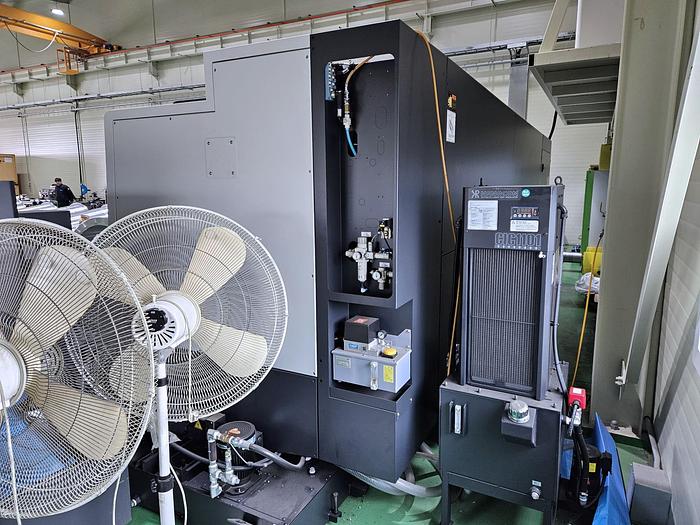

Chiller Unit Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed All Available Tooling All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | Puma 5100LB |
| Year | 2020 |
| Condition | Used |
| Stock Number | 119235 |

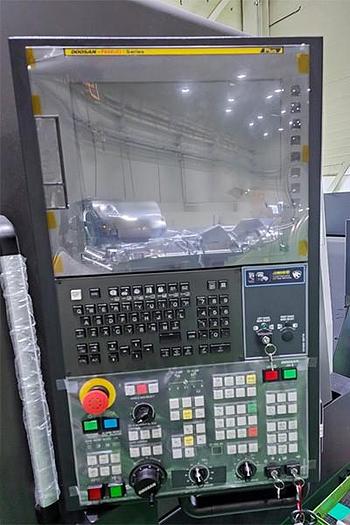

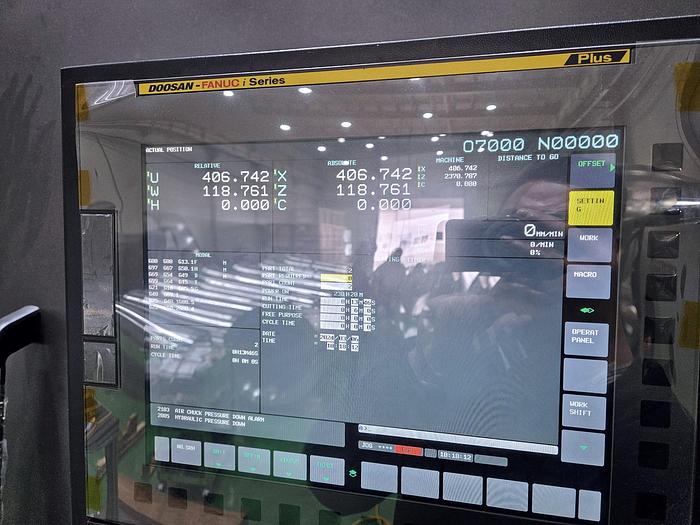

| Control | Fanuc i Series Plus Control |
| Chuck Size | 18.5" Air Chuck |
| Maximum Swing | 35.4" |
| Maximum Turning Diameter | 25.6" |
| Maximum Turning Length | 119.2" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 14.3" |
| Z-Axis Travel | 124" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-15" / 7.1" |
| Spindle Speeds | 1 - 1,500 RPM with Gearbox |
| Spindle Torque | 2181 ft./lbs. |
| Spindle Motor | 60 HP |
| Milling Spindle Speed | 4,000 RPM |
| Milling Spindle Motor | 15 HP |
| Milling Spindle Torque | 107.6 ft/lbs. |

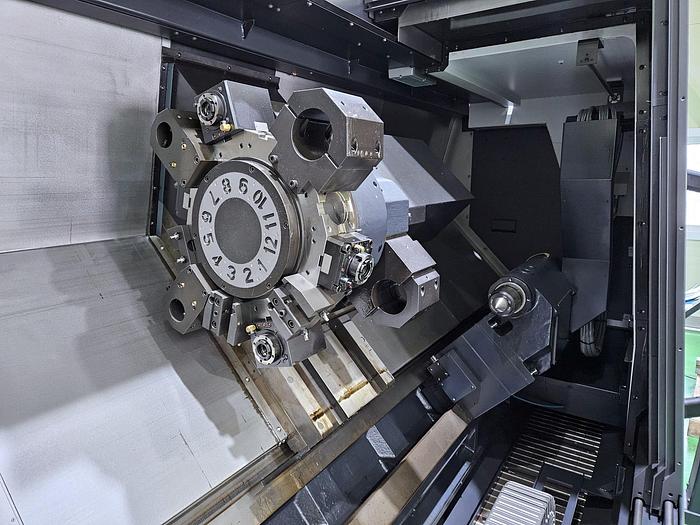

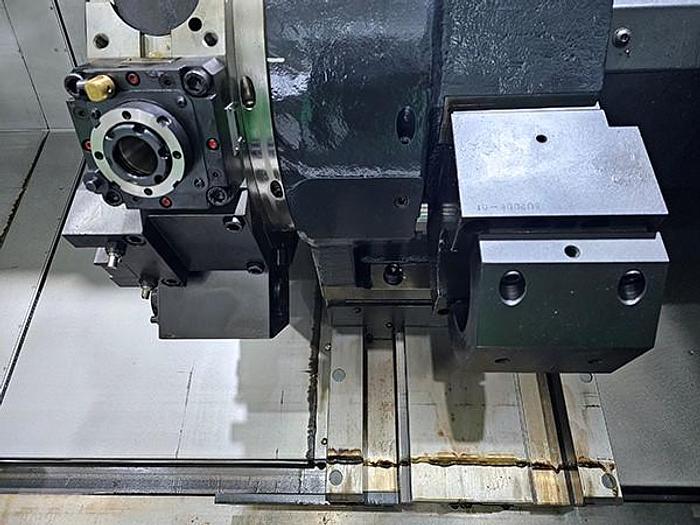

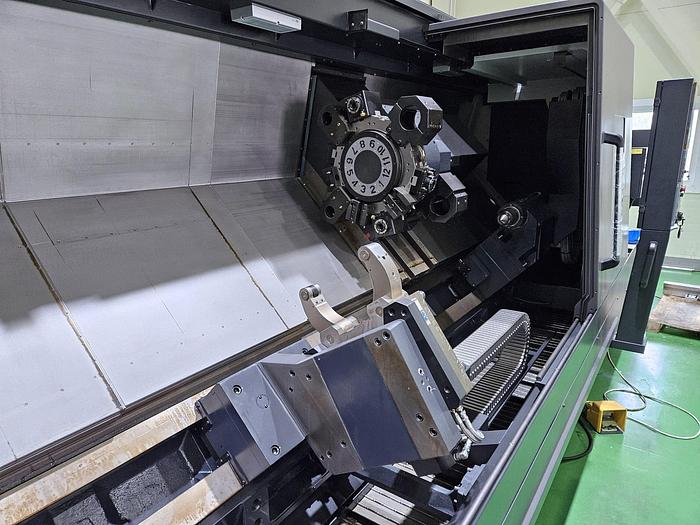

| Number of Turret Positions | 12 Position Turret |
| Tool Shank | BMT-75 |
| Rapid Traverse Rates X/Z | 630 IPM / 787 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 278" x 90" x 92" |
| Machine Weight | 29,106 lbs. |
