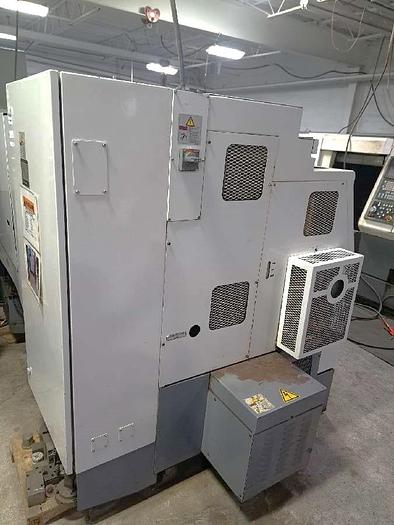

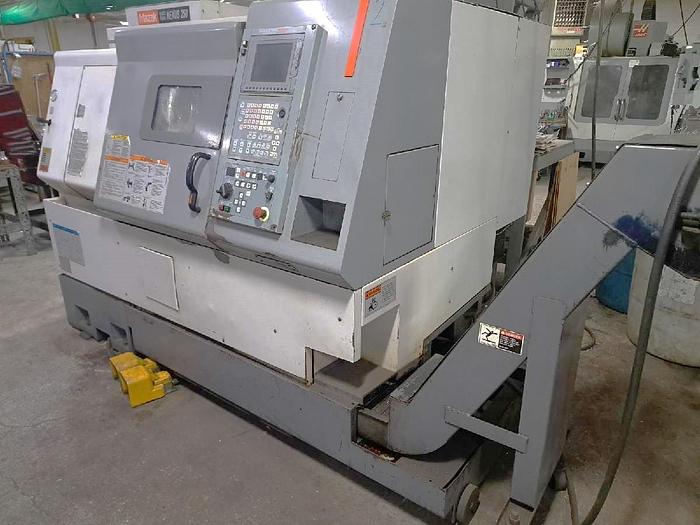

2003 Mazak Nexus QTN 250 Chucker
![Used 2003 Mazak Nexus QTN 250 Chucker](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/f226f6bbac0b2bbaa85226aec54efdbf/large-used-2003-mazak-nexus-qtn-250-chucker.jpg)
2003 Mazak Nexus QTN 250 Chucker
$18,950 (USD)
Location:Michigan
orCall (863) 439-6066
Description

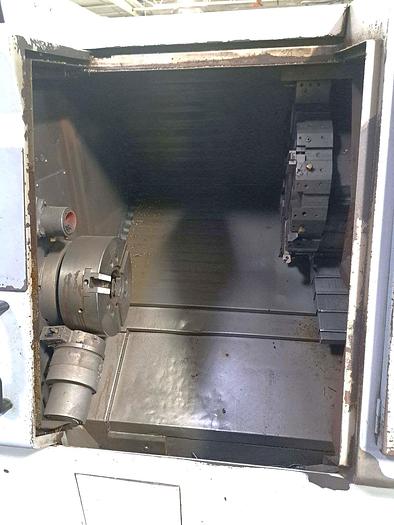

10" 3 Jaw Hydraulic Chuck
Chip Conveyor
IC Memory Card Interface
PCM CIA Interface (2 slots)
3.5" Floppy Disk Interface
RS232 Port Interface
Hydraulic Pressure Interlock
Door Interlock
Tool Path Solid Model Multi-Tap Transformer Coolant Tank with Pump All Available Tooling
**This machine is a chucker with NO tailstock**
**Machine will need a new chuck sooner than later, will work for roughing operations but would likely need to be replaced for more detailed operations**
Specifications
Manufacturer | Mazak |
Model | Nexus QTN 250 |
Year | 2003 |
Condition | Used |
Stock Number | 119234 |
Control | Mazatrol Fusion 640T Nexus |
Chuck Size | 10" 3-Jaw Hydraulic |
Maximum Swing | 24" |
Maximum Cutting Diameter | 14" |
Maximum Machining Length | 18.7" |
X-Axis Travel | 7.5" |
Z-Axis Travel | 20.25" |
Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
Spindle Speeds | 4,000 RPM |
Spindle Motor | 35 HP |

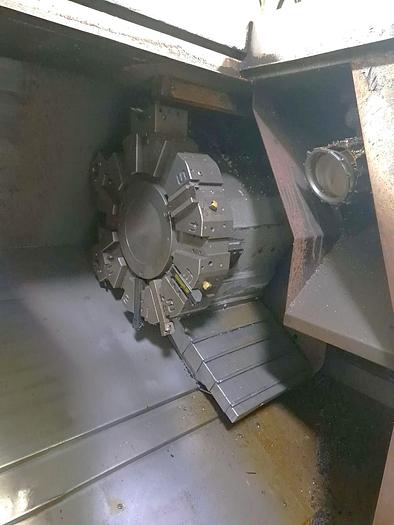

Number of Turret Positions | 12 Position Drum |
Rapid Traverse Rates X/Z | 1181 / 1299 IPM |
Tailstock Body Travel / Center | 20.625" / MT#5 |
Machine Dimensions LxWxH | 102" x 80" x 76" |
Machine Weight | 10,400 lbs. |
