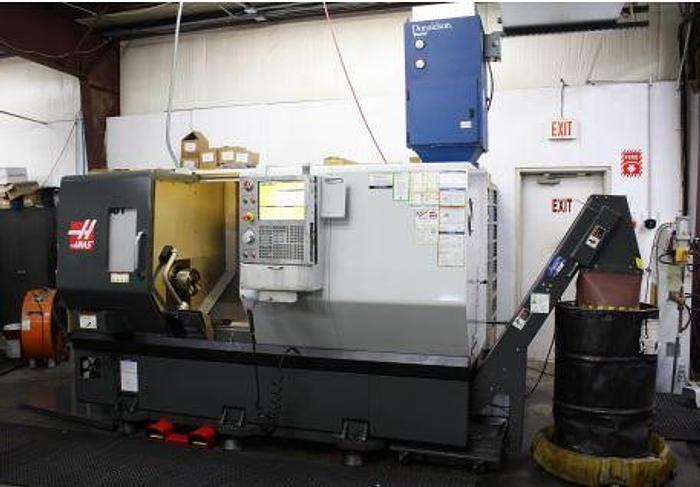

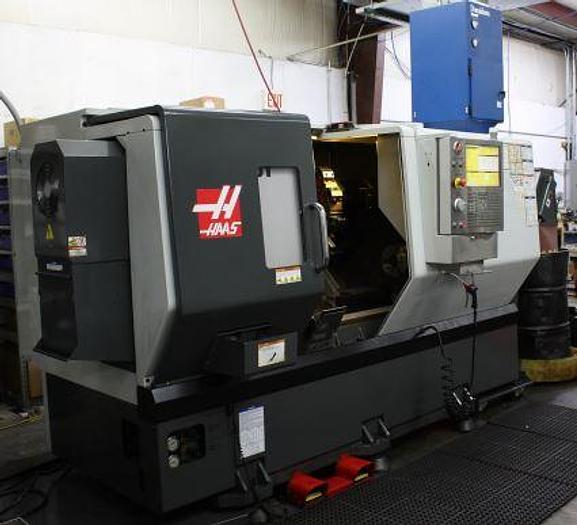

2011 Haas DS-30SSY w/Barfeed
![Used 2011 Haas DS-30SSY w/Barfeed](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/06d5ddeb90f8de7d259fb8d6c0ca7bb6/large-used-2011-haas-ds-30-ssy-w-barfeed.jpg)
No longer available
2011 Haas DS-30SSY w/Barfeed
Location:New York, NY
Description
Y-Axis Capability
Live Milling (6,000 RPM)
Full C Axis Spindle Rotation Main & Subspindle

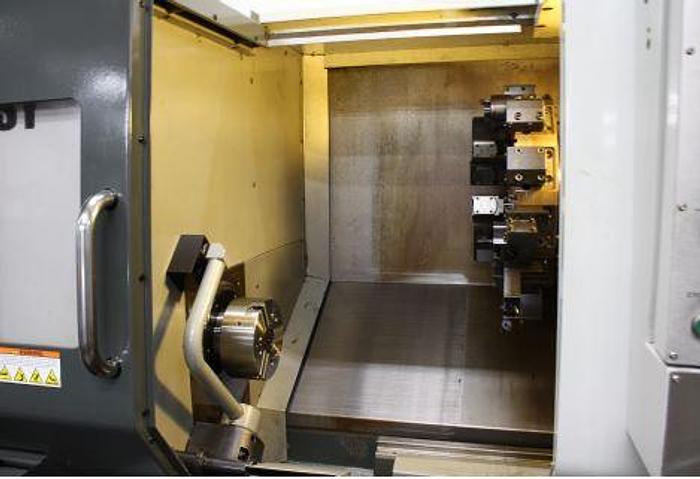

Subspindle

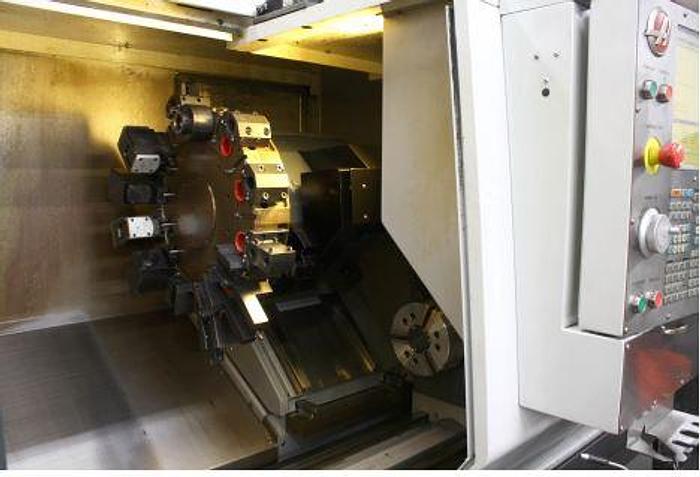

24-Station Hybrid VDI/Bolt-On Turret
Tool Presetter
Parts Catcher

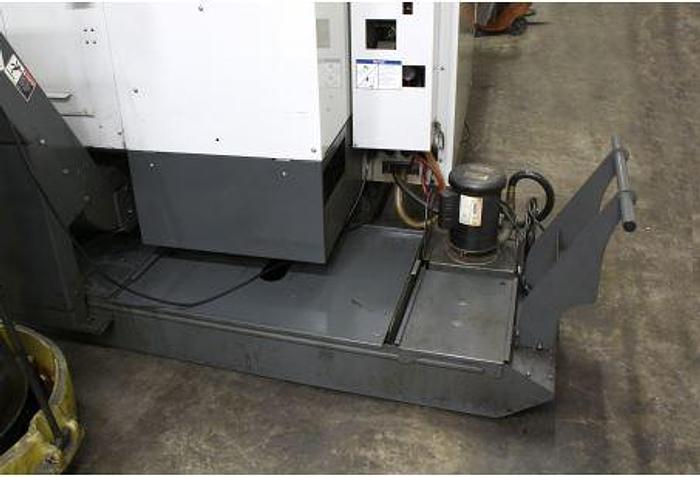

Chip Conveyor
Haas Servo 300 Barfeed

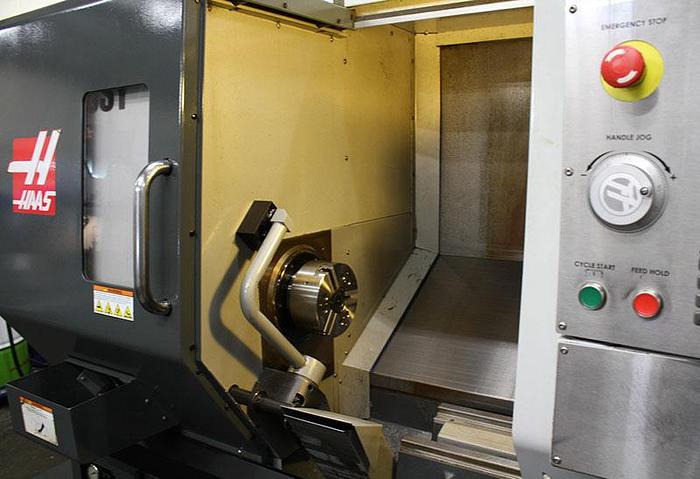

8.3" 3 Jaw Hydraulic Chucks on both Main & Subspindles
High Torque Live Tools with C Axis
Chuck Air Blast
Spindle Orientation
Rigid Tapping

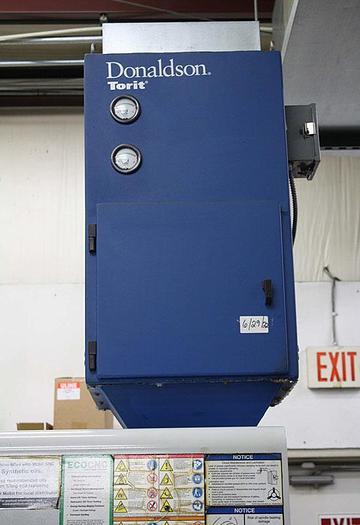

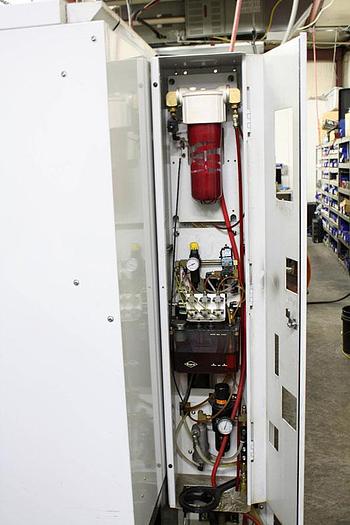

Donaldson Torit Mist Collector

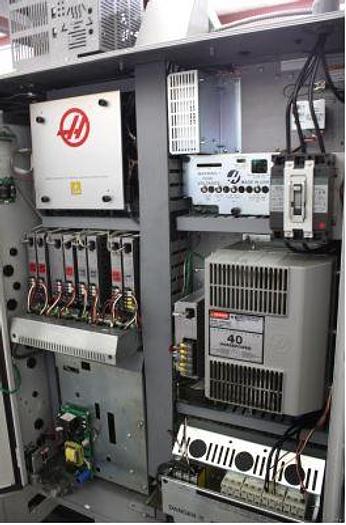

Wired 195-260V Electrics

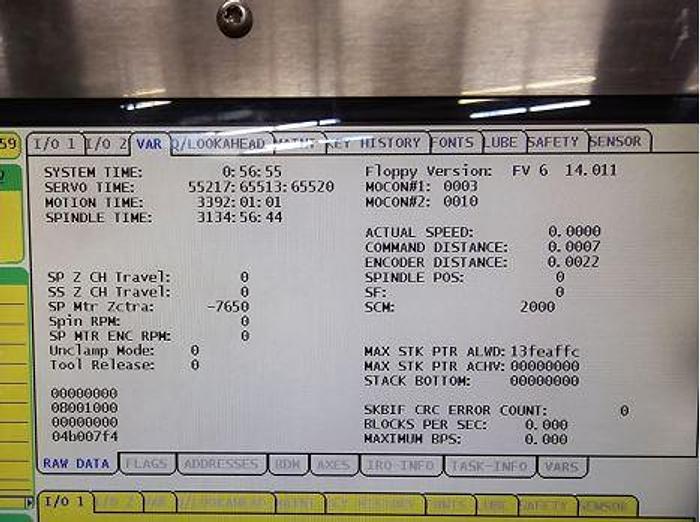

**ONLY 3,134 Spindle Run Hours**

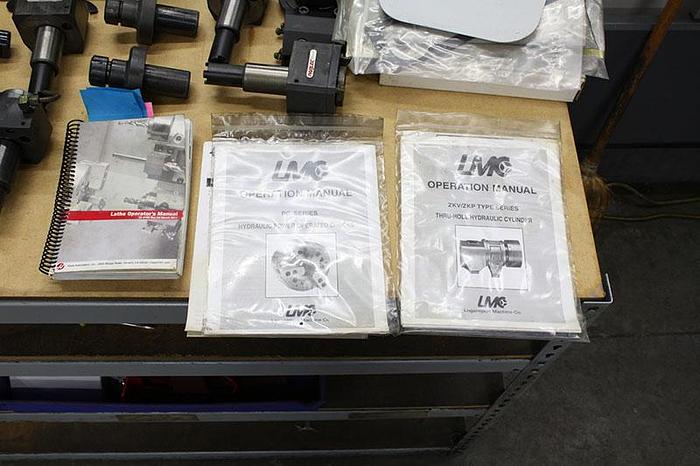

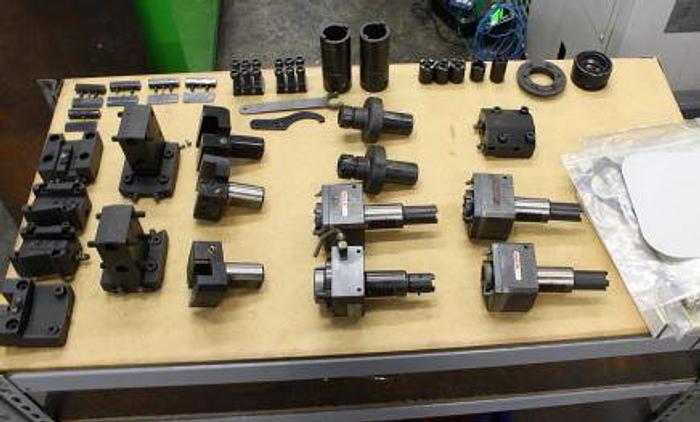

**Good assortment of tooling**
**Collet Chuck in pictures not included**
Specifications
Manufacturer | Haas |
Model | DS-30SSY w/Barfeed |
Year | 2011 |
Condition | Used |
Stock Number | 119223 |
Chuck Sizes Main / Subspindle | 8.3" / 8.3" 3 Jaw Hyd. Chucks |
Maximum Swing over Bed | 31.75" |
Maximum Cutting Diameter | 16" |
Maximum Cutting Length | 23" |
X-Axis Travel | 12.5" |
Y-Axis Travel | +/- 2" |
Z-Axis Travel | 23" |
C-Axis Rotation | Full C-Axis |
Spindle Nose / Bore / Bar Capacity | A2-6" / 2.6" / 2" |
Spindle Motor | 30 HP |
Spindle Speeds | 0 - 4,800 RPM |
Subspindle Nose / Bore / Bar Capcity | A2-5" / 2.44" / 2" |
Subspindle Motor | 20 HP |
Subspindle Speed | 4,800 RPM |
Turret Type | 24 Station VDI/Hybrid Turret |
Rotary Tool Speed / Rotary Motor | 6,000 rpm / 5 HP |
Rapid Traverse Rates X, Y / Z | 472 IPM / 1,200 IPM |
Machine Dimensions LxWxH | N/A |
Machine Weight | 14,600 lbs |
