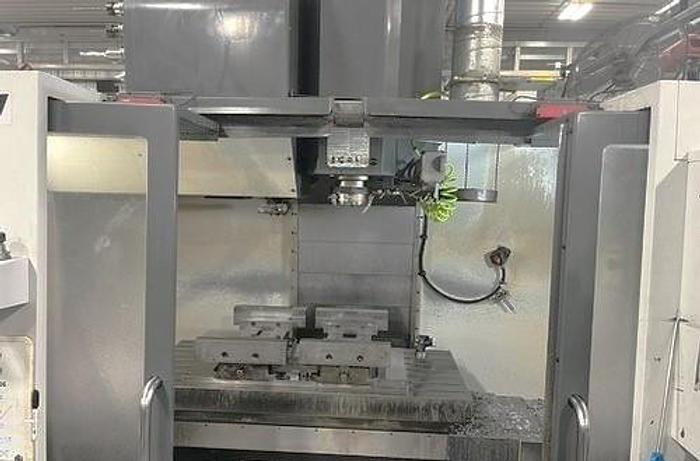

2011 Haas VF-3YT/40
2011 Haas VF-3YT/40
Contact us for price
Wisconsin
orCall (863) 439-6066
Description
Auger Style Chip Conveyor

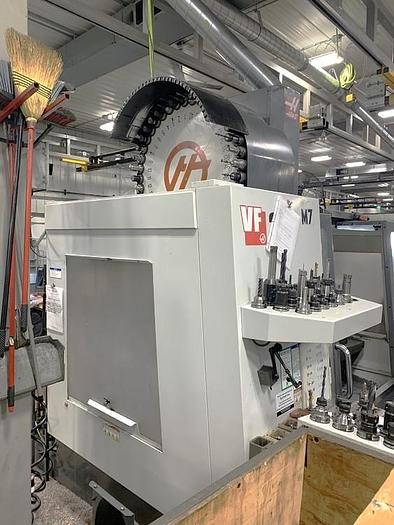

40 Station Side Mounted Tool Changer
Programmable Coolant Nozzle
Coolant Thru the Spindle

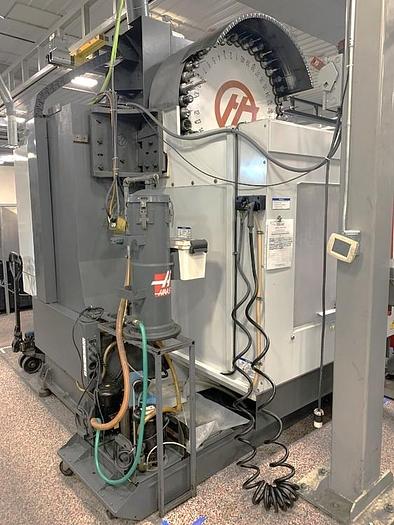

Auxiliary Coolant Filter System

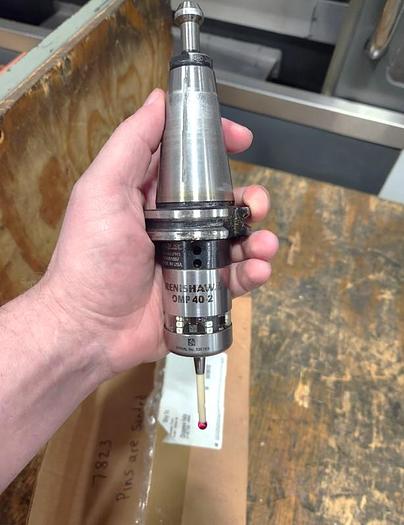

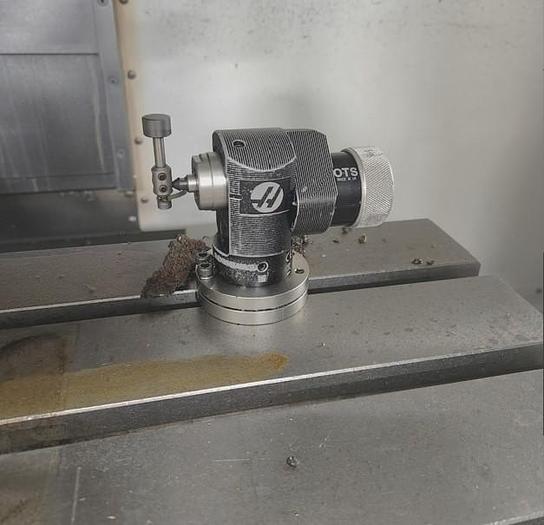

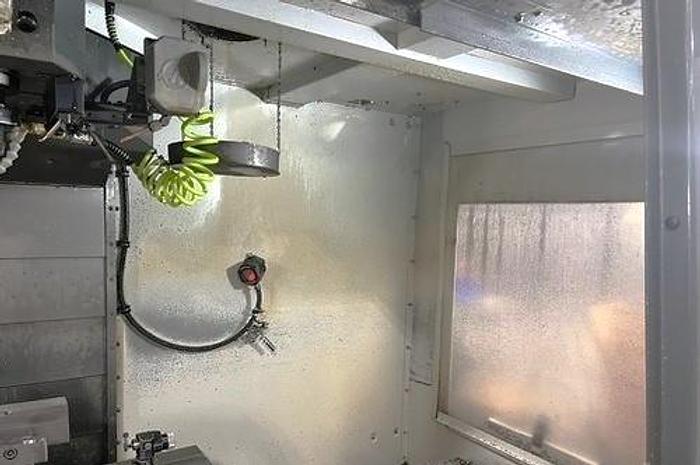

Haas Wireless Probing Package with Tool & Part Probe (WIPS)
Probe Riser Block
High-Intensity Lighting
Rigid Tapping Spindle Orientation Coordinate Rotation & Scaling User Definable Macros
Haas Intuitive Programming System
2 Speed Gearbox Vector Drive Spindle
Ethernet Interface
USB Port Interface RS 232 Port Interface Coolant System with Tank & Pump
220V Electrics

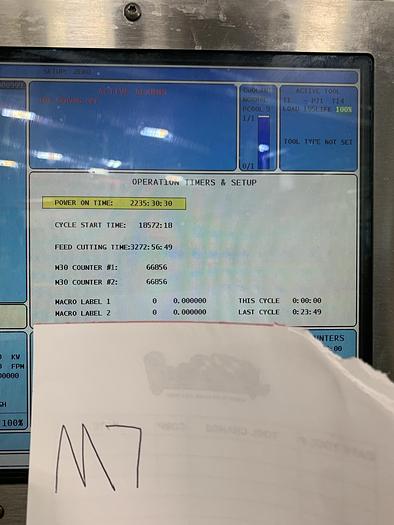

**Feed Cut Hours 3,272**
*Tooling and fixturing seen in photos is not included with machine*
Specifications
| Manufacturer | Haas |
| Model | VF-3YT/40 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119222 |

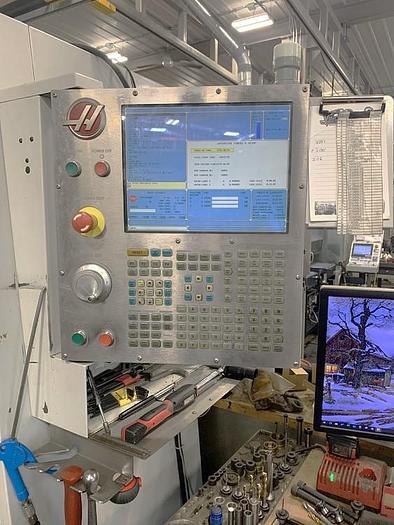

| Control | Haas CNC Control |

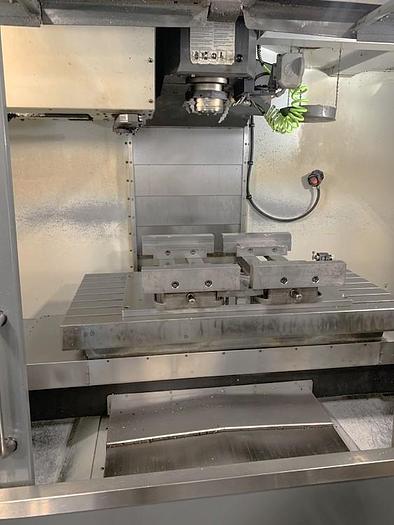

| Table Size | 52" x 23" |
| Maximum Weight on Table | 4,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 7,500 RPM - 2 Speed Gearbox |
| Spindle Motor | 30 HP |
| Number of Tool Positions | 40 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Tool Change Time Chip to Chip | 4.2 seconds |
| Rapid Traverse Rates | 710 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions | 158" x 135" |
| Machine Weight | 15,900 lbs. |
