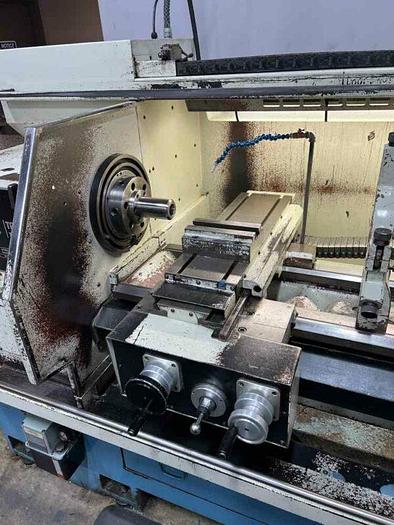

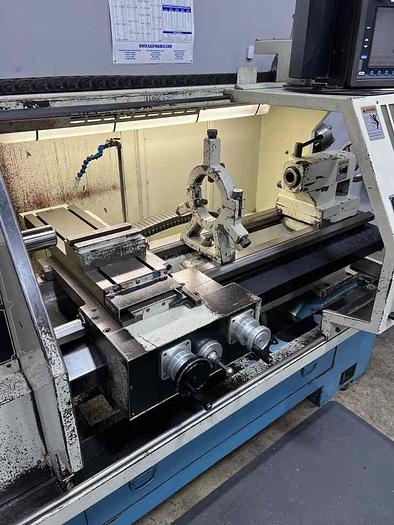

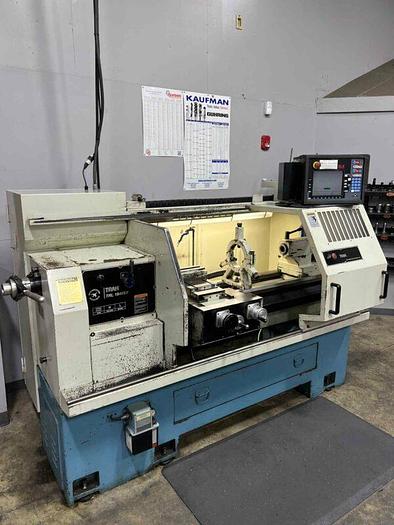

2008 Southwestern Industries TRAK TRL 1840SX
2008 Southwestern Industries TRAK TRL 1840SX
Contact us for price
Massachusetts
orCall (863) 439-6066
Description
Dynamic Braking
Dovetails on Cross Slide, V-Ways on Saddle
10.4" Color Active Matrix Screen
Industrial Grade Celeron Processor
Advanced Features
Network/Memory
Steady Rest
Specifications
| Manufacturer | Southwestern Industries |
| Model | TRAK TRL 1840SX |
| Year | 2008 |
| Condition | Used |
| Stock Number | 119215 |
| Machine Control | Prototrak SLX |
| Maximum Swing over Bed | 18.5" |
| Maximum Swing Over Cross Slide | 9" |
| Distance Between Centers | 40.25" |
| Spindle Nose / Spindle Bore | D1-6 / 2.36" |
| Spindle Speeds | 80-850 RPM / 250-2,500 RPM |
| Number of Tool Positions | 1 Tool Post Quick Change |
| Spindle Motor | 10 HP |
| Rapid Traverse Rates X/Z | 100 IPM / 150 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.96" / 7.125" / #5MT |
| Power Requirements | 220V / 3 Phase / 60Hz |
| Machine Dimensions LxWxH | 91"x53"x70" |
| Machine Weight | 4,500 lbs |
