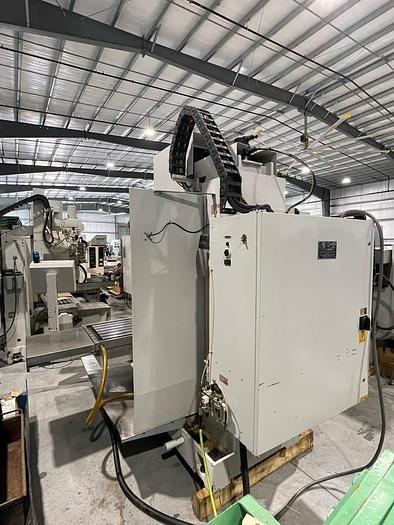

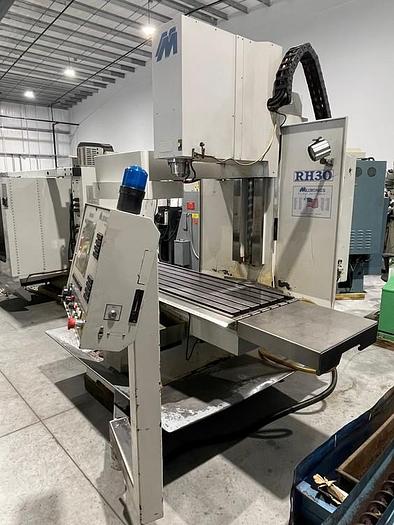

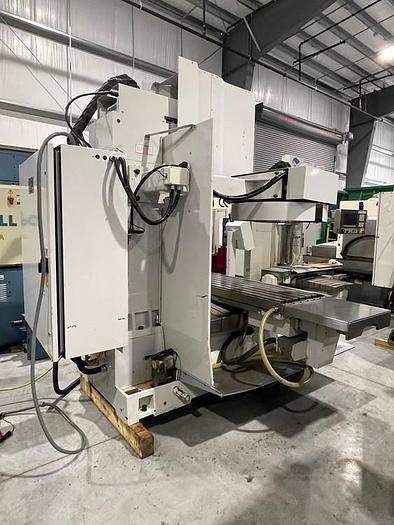

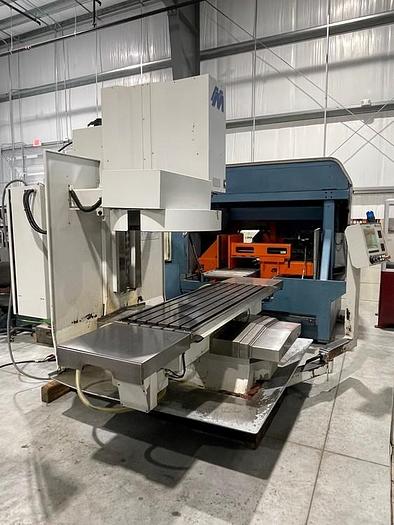

2004 Milltronics RH30

2004 Milltronics RH30

Contact us for price

Location:Florida

orCall (863) 439-6066

Description

24 Station Tool Changer

Spindle Load Meter

Flood Coolant

Coolant Tank with Pump

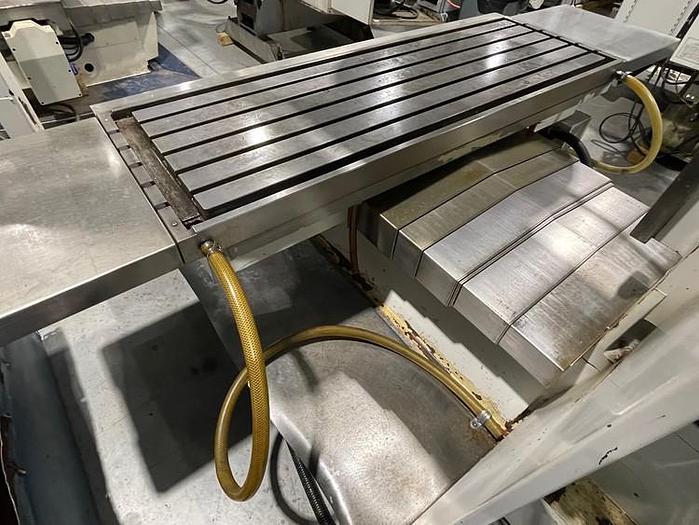

X & Y Axis Way Covers

Boxed Way Construction

Both Conversational & G Code Programming

3.5" Floppy Disk Interface

RS 232 Port Interface

Pedestal Mounted Control that rides on casters for operator flexibility

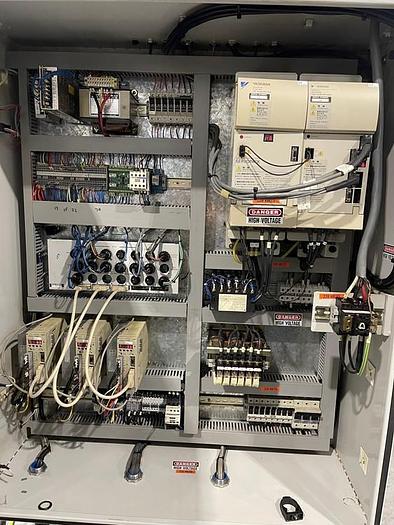

Wired 220V Electrics

All Available Manuals


Specifications

ManufacturerMilltronics
ModelRH30
Year2004
ConditionUsed
Stock Number119214

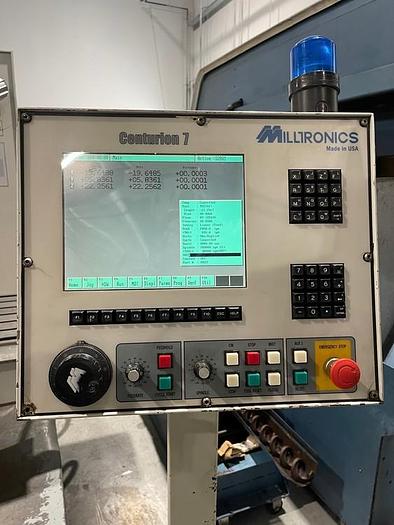

Machine ControlMilltronics Centurion 7 Control

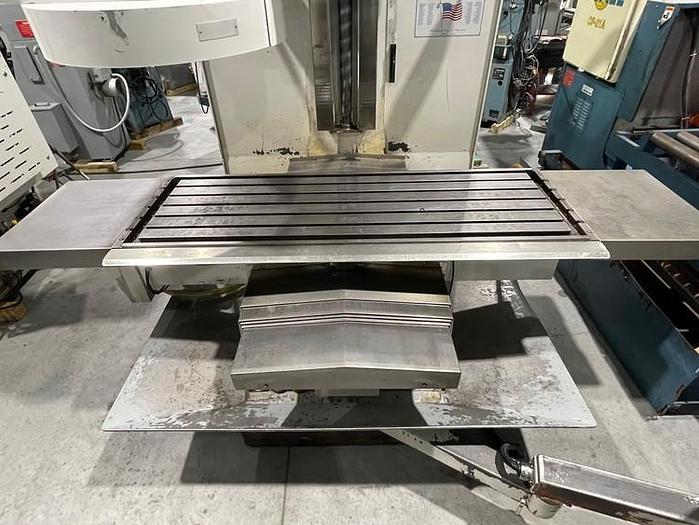

Table Size73" x 24"
Maximum Table Load3,000 lbs
X-Axis Travel60"
Y-Axis Travel30"
Z-Axis Travel28"
Spindle Speed50 - 8,000 RPM
Spindle TaperCAT 40
Spindle Motor15 HP
Spindle Nose to Table Top3.0" - 31.0"
Tool Magazine Capacity24 Position ATC
Maximum Tool Diameter / Length / Weight3.46" / 11.85" / 15 lbs
Rapid Traverse Rates X, Y / Z500 IPM / 400 IPM
Machine Dimensions LxWxH138" x 102" x 102"
Machine Weight12,000 lbs
