2019 Haas ST-10
No longer available
2019 Haas ST-10
Location:Massachusetts
Description
6.5" 3 Jaw Hydraulic Chuck
Automatic Tool Presetter
Belt Type Chip Conveyor
Tailstock
User Definable Macros
Visual Part Programming System
Rigid Tapping
220V 3-Phase Power
15" LCD Color Monitor
All Available Manuals
All Available Tool Holders

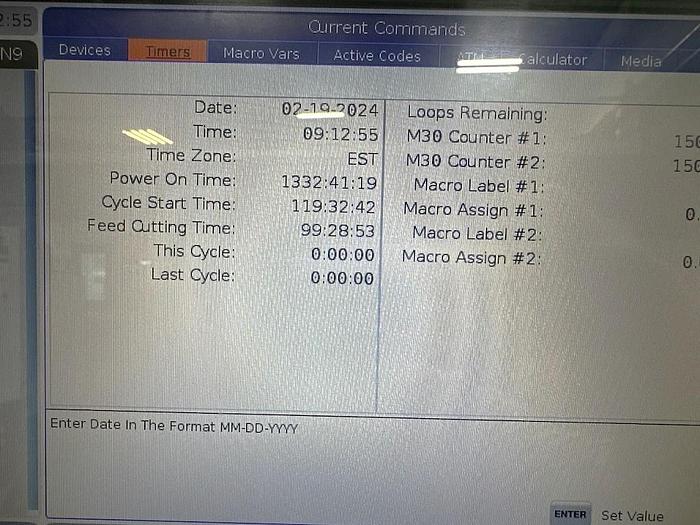

**Power On Hours 1,332**
**Cycle Start Hours 119**
**Feed Cutting Hours 99**
Specifications
| Manufacturer | Haas |
| Model | ST-10 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119212 |
| Machine Control | Haas CNC Control |
| Chuck Size | 6.5" / 1.75" Thru hole |
| Maximum Swing | 25.25" |
| Maximum Swing Over Cross Slide | 16.25" |
| Maximum Machining Diameter | 14" |
| Maximum Machining Length | 14" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 14" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 2.31" / 1.75" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 12 Bolt on Style Turret |
| Spindle Torque | 75 ft/lbs. |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions LxWxH | 92"x55"x69" |
| Machine Weight | 6,420 lbs |
