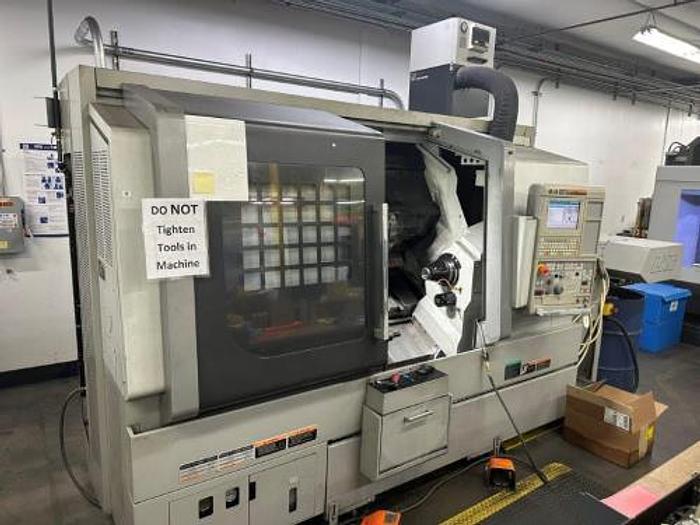

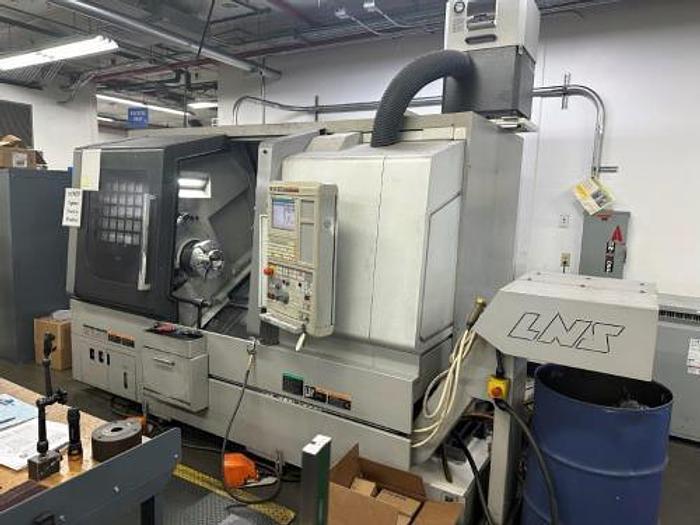

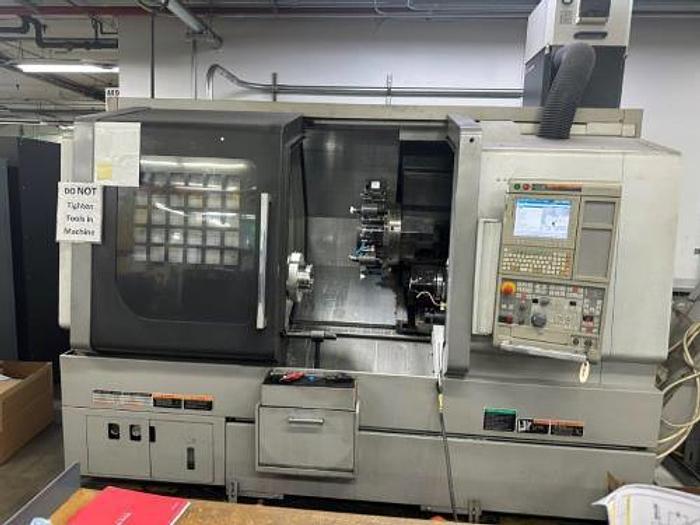

2012 Mori Seiki NLX2500SY Mitsubishi M730BM
No longer available
2012 Mori Seiki NLX2500SY Mitsubishi M730BM
$109,500 (USD)
Location:Arizona
Description

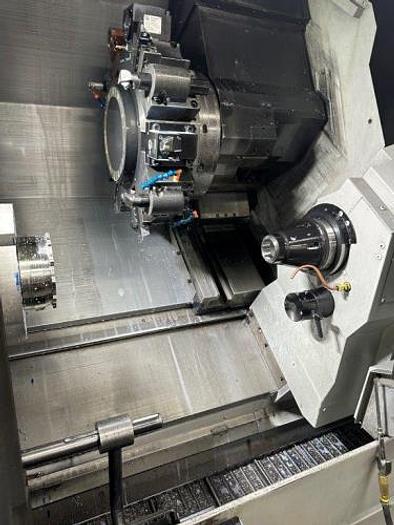

Subspindle

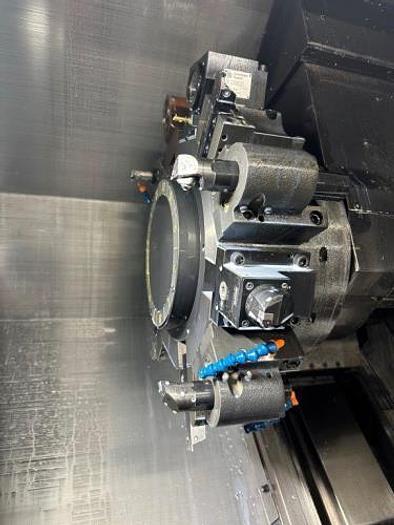

Live Milling/Drilling Capability
Y Axis Capability

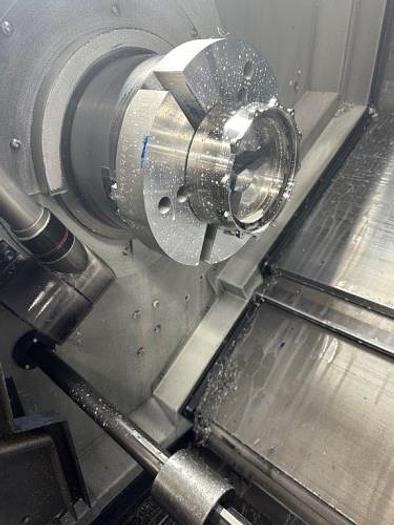

10" 3 Jaw Hydraulic Chuck on Main Spindle

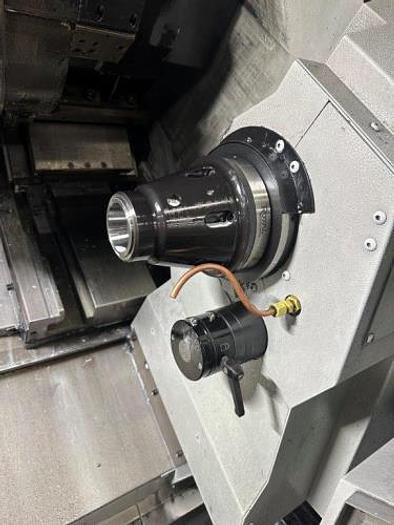

6" 3 Jaw Hydraulic Chuck on Subspindle

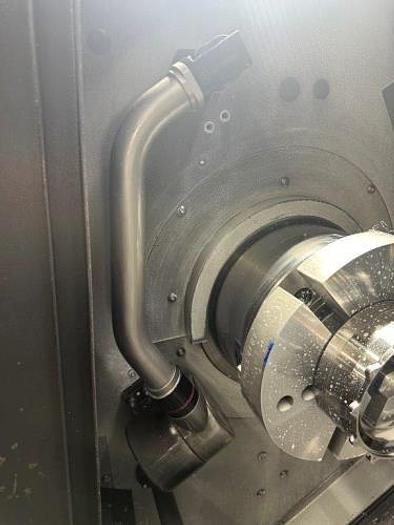

Tool Presetter
Parts Catcher

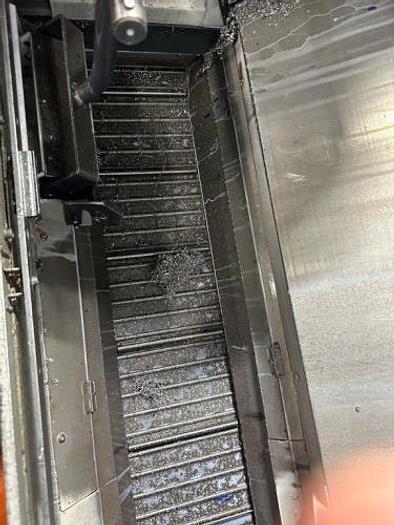

Chip Conveyor

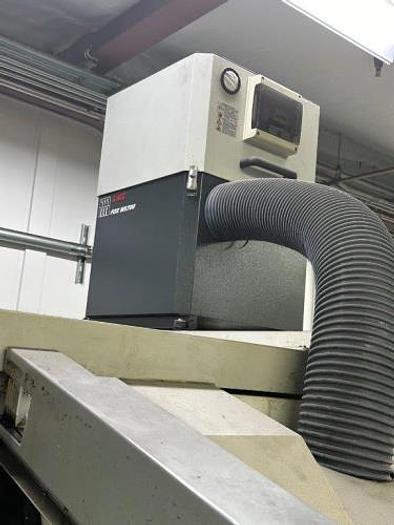

Mist Collector
Card Interface
RS 232 Port Interface

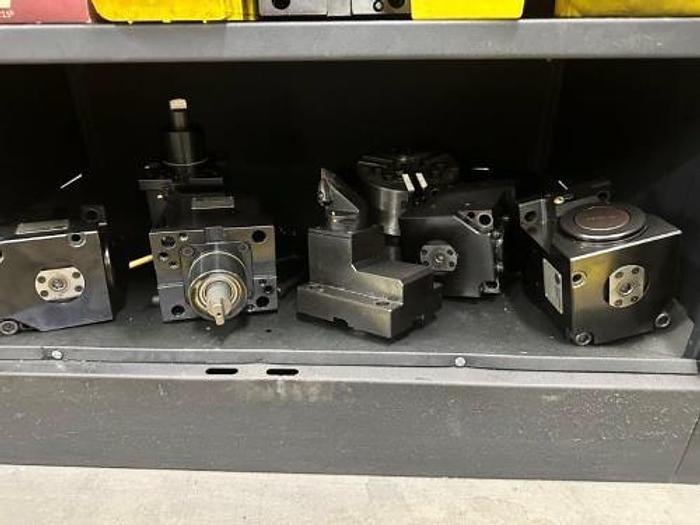

(3) Live Tool Holders (additional live holders & CAPTO holders available at extra cost)

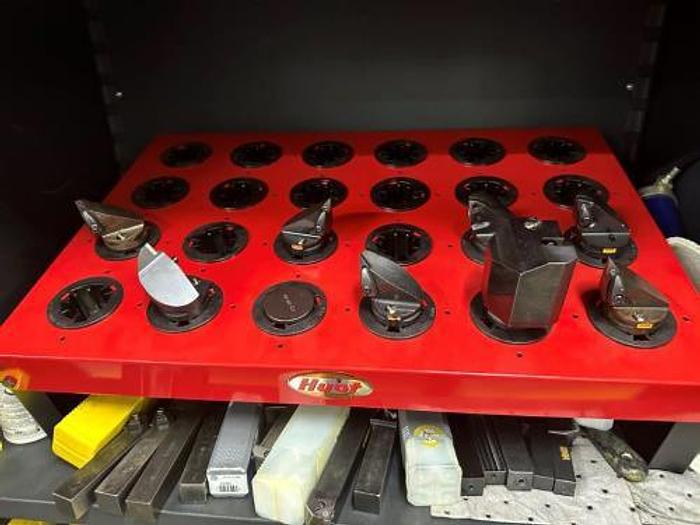

Miscellaneous Static Tooling
All Available Manuals

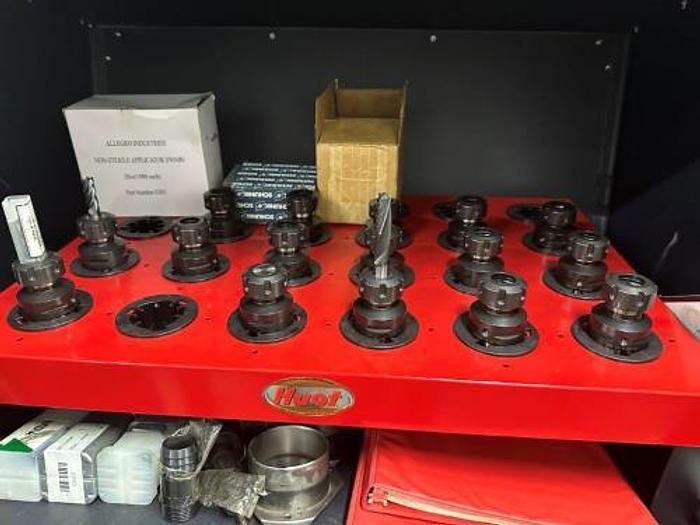

**Collet Chucks in Photos, Do Not Go With Machine**

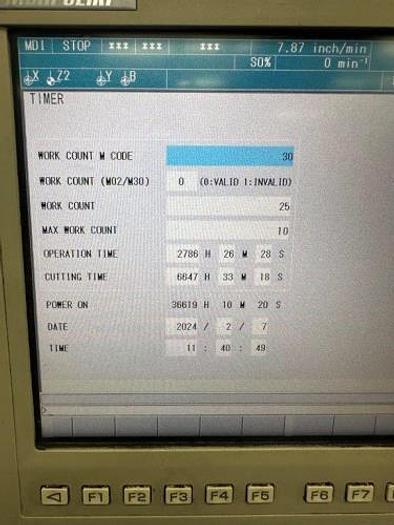

**Cutting Hours 6,647**
Specifications
| Manufacturer | Mori Seiki |
| Model | NLX2500SY Mitsubishi M730BM |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119198 |

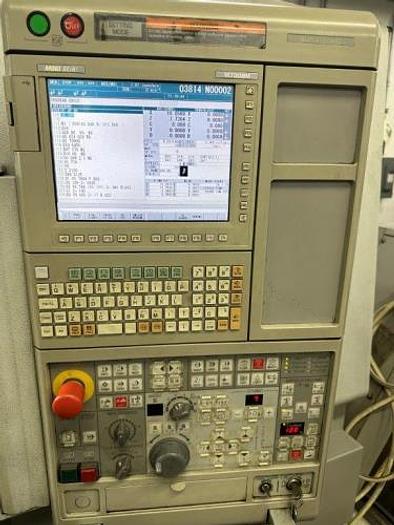

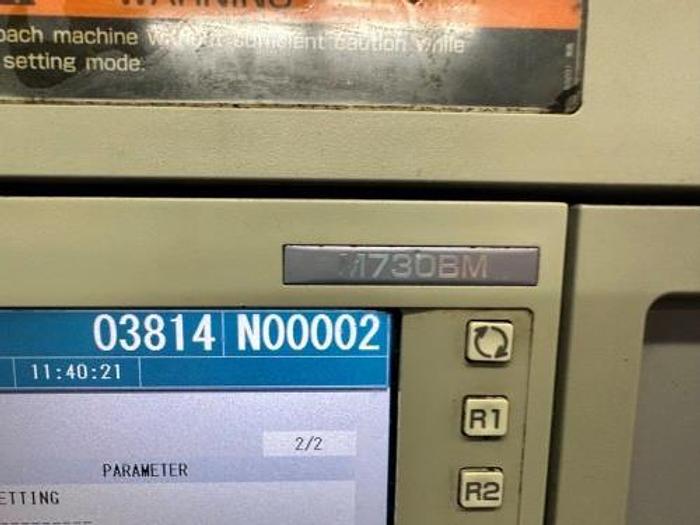

| Machine Control | Mori Mitsubishi M730BM MAPPS Control |
| Chuck size main & subspindle | 10" & 6" 3 Jaw Hydraulic Chucks |
| Maximum swing / over cross slide | 36.2" / 29.72" |
| Maximum turning diameter | 14.01" |
| Distance between spindles | 28.7" |
| Maximum turning length | 27.75" |
| X axis travel | 10.24" |
| Y axis travel | 3.97" (+/- 2") |
| Z axis travel | 31.3" |
| Main spindle nose / bore / bar capacity | A2-8"/3.58"/3.1" |
| Main spindle speed | 4,000 RPM |
| Main spindle motor | 25 HP |
| Subspindle nose/bore/bar capacity | A2-5"/2.8"/2.1" |
| Sub spindle speed | 6,000 RPM |
| Sub spindle motor | 15 HP |
| Rotary tool speed | 6,000 RPM |
| Rotary spindle motor | 15 HP |

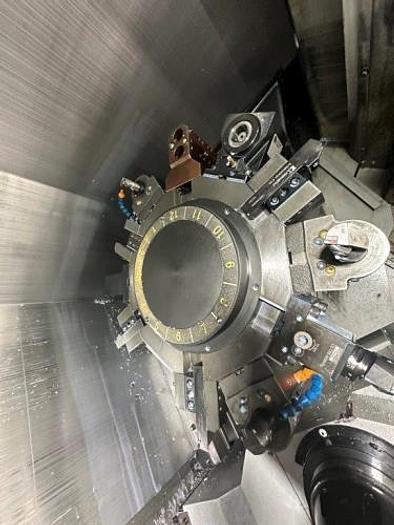

| Number of turret positions | 12 Positions |
| Rapid traverse rates | 1181 IPM |
| Feedrates | 787 IPM |
| Machine size | 122"x84"x84" |
| Machine weight | 13,992 lbs |
