1999 Haas SL-30T

1999 Haas SL-30T

Contact us for price

Location:Ohio

orCall (863) 439-6066

Description

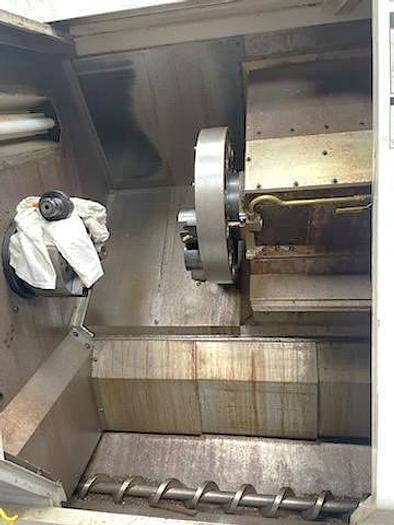

10" 3 Jaw Hydraulic Chuck

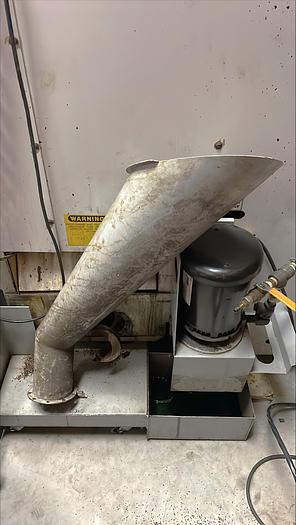

Auger Style Chip Conveyor

Programmable Tailstock

Rigid Tapping

RS 232 Port Interface

208/230V Electrics

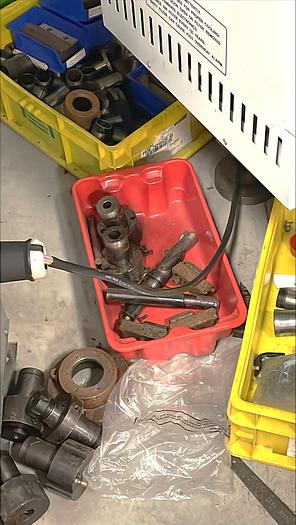

All Available Tool Blocks

Haas Manual


**New in August of 1999**

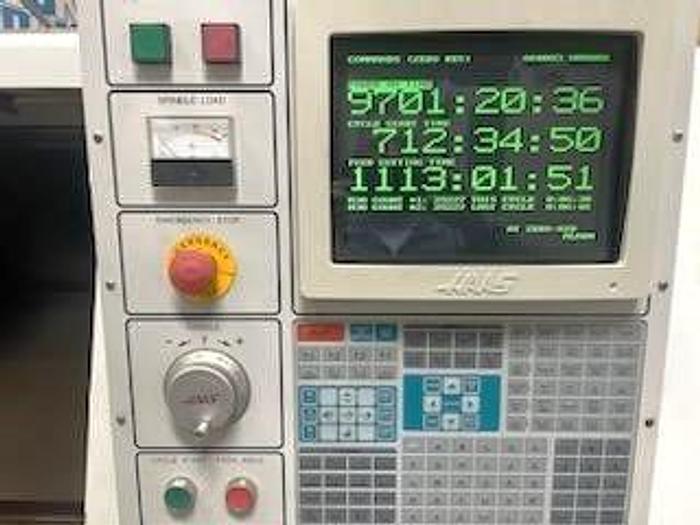

**Power On Hours 9,700**

**ONLY 1113 Feed Cutting Hours**

Specifications

ManufacturerHaas
ModelSL-30T
Year1999
ConditionUsed
Stock Number119197
Machine ControlHaas CNC Control
Chuck Size10" 3-Jaw Hydraulic
Maximum Swing30"
Maximum Swing Over Cross Slide14.5"
Maximum Cutting Diameter14.5"
Maximum Turning Length34"
Maximum Bar Capacity2.5"
Distance Between Centers39"
X-Axis Travel11.3"
Z-Axis Travel34"
Spindle Nose / Spindle BoreA2-6" / 3.00"
Spindle Speeds20 - 3,400 RPM
Spindle Motor30 HP
Number of Turret Positions10 Station Turret
Rapid Traverse Rates710 IPM
Tailstock Body Travel / Taper33.5" / MT #4
Machine Dimensions LxWxH129" x 66" x 74"
Machine Weight14,000 lbs
