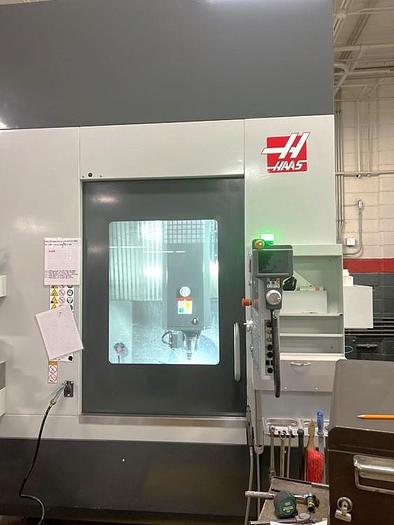

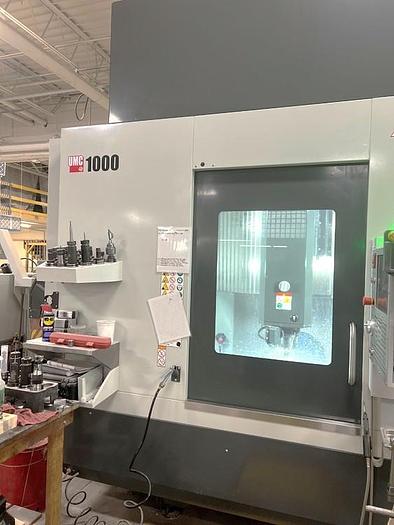

2022 Haas UMC-1000
2022 Haas UMC-1000
$219,500 (USD)
Location:Wisconsin
Description
Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI
15,000 RPM HSK-A63 Spindle Option
Auxiliary Coolant Filter System
Haas Wireless Probing Package - Tool & Part Probing
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System

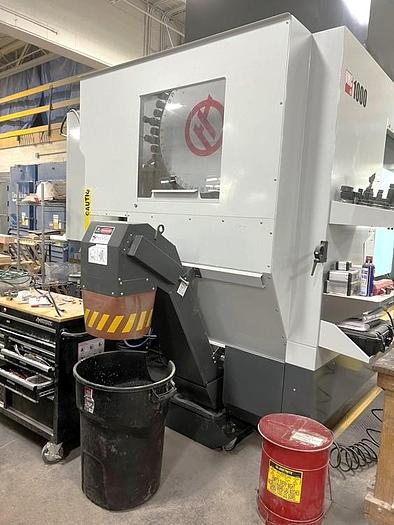

Chip Conveyor - Belt Type
Programmable Coolant Nozzle
50 Station Tool Changer - HSK-A63
Rigid Tapping
Remote Jog Handle
High Speed Machining
Through Tool Air Blast
Coolant System with Tank & Pump & Coolant Tank
Chip Tray Filter Kit
Early Power Failure Detection Module
Second Home Position
Ethernet Interface
USB Port Interface
RS 232 Port Interface

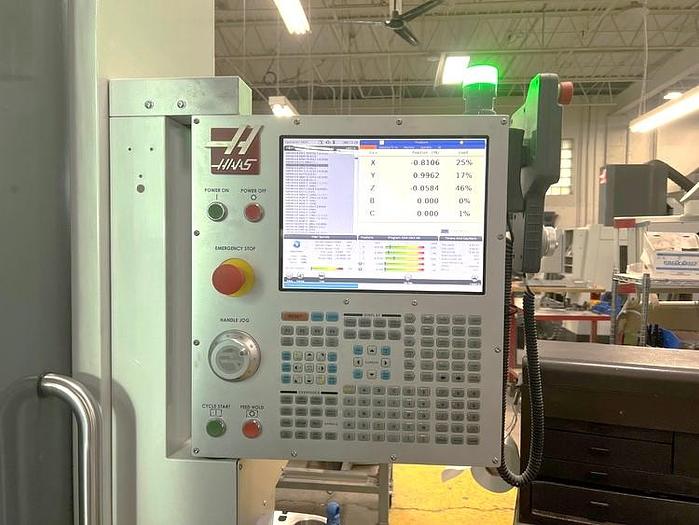

15" Color LCD Monitor w/ Touch Screen Control
Haas Connect
WiFi for Haas Machines
Media Display M-Code M130
Safe Run
Dynamic Work Offsets and Tool Center Point Control
HaasDrop
CNC Control Cabinet Cooler
Standard 1 GB Program Memory
Rotary Scales
Wired 220V Electrics

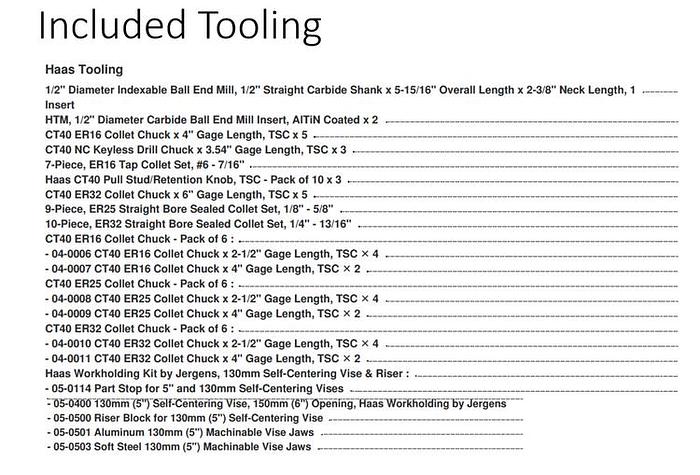

**See Tooling List in Photos for Inclusive Tooling**
**Manufactured new in April of 2022**

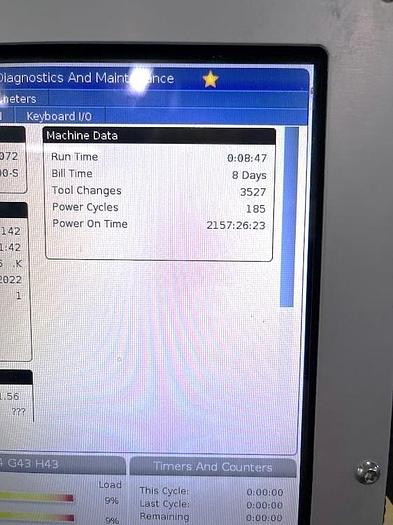

**Power On Hours ONLY 2,157**
**Estimated Spindle Hours 500**
** Price New as Equipped at $ 284,455**
Specifications
| Manufacturer | Haas |
| Model | UMC-1000 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119187 |
| Table size | 24.8" Diameter |
| Table load capacity | 1,000 lbs |
| X axis travel | 40" |
| Y axis travel | 25" |
| Z axis travel | 25" |
| B axis rotate of trunnion | -35 Degrees to 120 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | HSK A63 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 29" |
| Tool magazine | 50 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 900 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 168" x 94" x 116" |
| Machine weight | 19,100 lbs |
