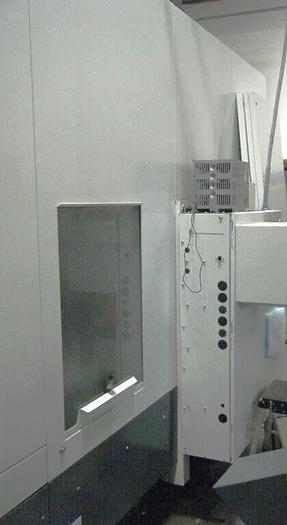

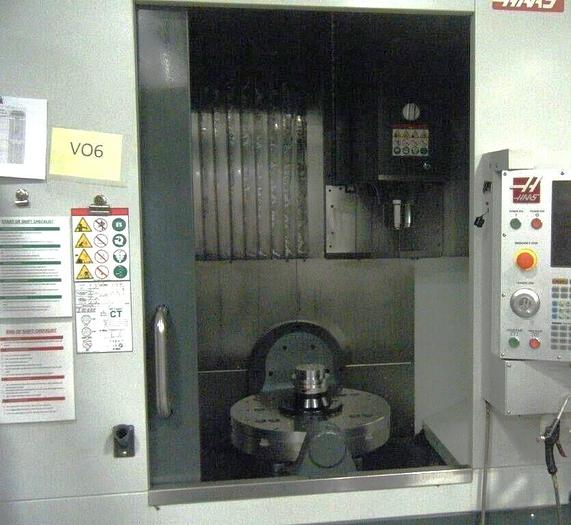

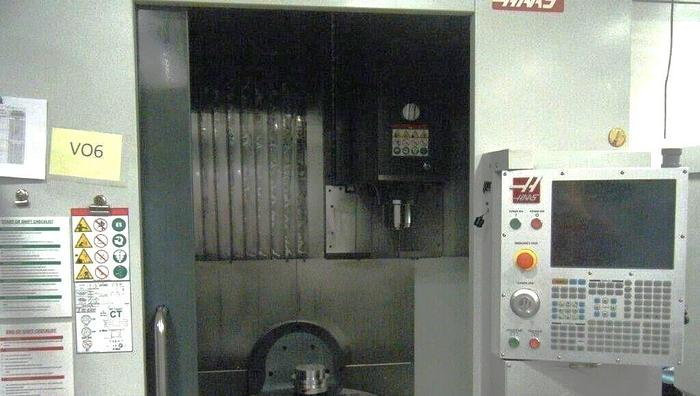

2019 Haas UMC-1000
No longer available
2019 Haas UMC-1000
$152,500 (USD)
Location:California
Description

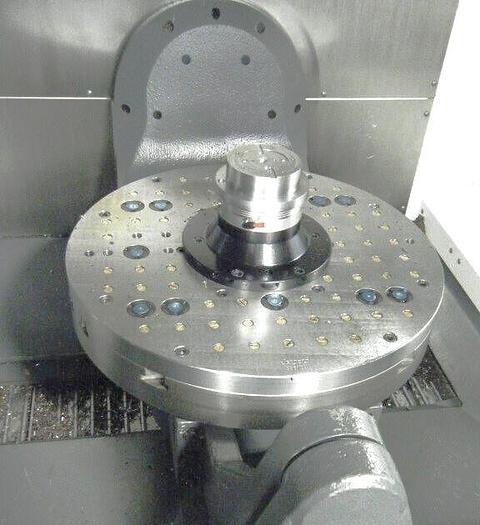

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI

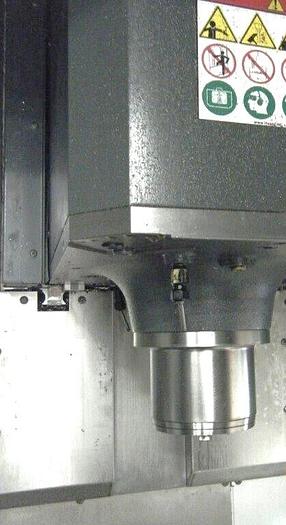

15,000 RPM Spindle Option
Haas Wireless Probing Package
High Speed Machining
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Chip Conveyor

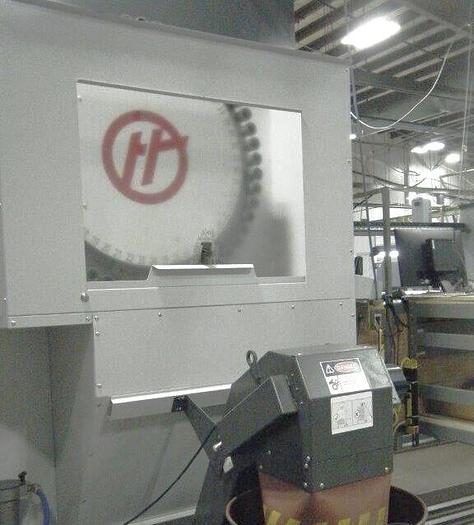

50 Station Tool Changer
Rigid Tapping
Remote Jog Handle
Coolant System with Tank & Pump & 95 Gallon Coolant Tank
Early Power Failure Detection Module
1 GB Programming Memory
Ethernet Interface
USB Port Interface
RS 232 Port Interface
15" Color LCD Monitor w/ Touch Screen Control
Haas Connect
WiFi for Haas Machines
Media Display
**Power On Hours 4,826:40**
**Cycle Start Hours 806:54**
**Feed Cutting Hours 665:09**
Specifications
| Manufacturer | Haas |
| Model | UMC-1000 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119186 |
| Machine Control | Haas NextGen Control |
| Table size | 24.8" Diameter |
| Table load capacity | 1,000 lbs |
| X axis travel | 40" |
| Y axis travel | 25" |
| Z axis travel | 25" |
| B axis rotate of trunnion | -35 Degrees to 120 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 Taper |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 29" |
| Tool magazine | 50 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 900 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 168" x 94" x 116" |
| Machine weight | 19,100 lbs |
