2005 Haas VF4B
No longer available
2005 Haas VF4B
Location:New York, NY
Description
10,000 RPM Spindle Option
4th Axis Drive & Wiring
24 Station Side Mounted Tool Changer
High Speed Machining
Haas Wireless Probing with both Tool and Part Probe
2 Speed Gearbox

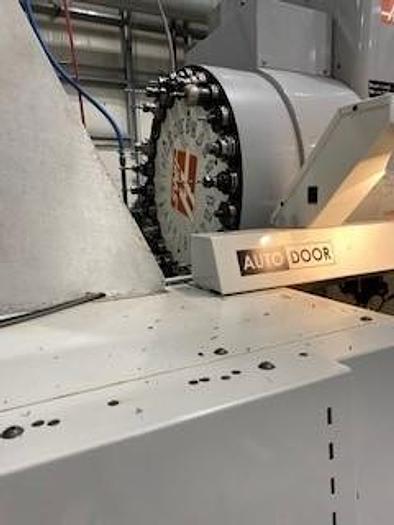

Auto Door
High Intensity Lighting
Auger Style Chip Conveyor
Visual Quick Code Programming
User Definable Macros
Coordinate Rotation & Scaling
1 MB Extended Program Memory
USB Port Interface
RS-232C Port Interface
Chip Pan with Coolant Pump
Wired 208/230V Electrics All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF4B |
| Year | 2005 |
| Condition | Used |
| Stock Number | 119184 |
| Control | Haas CNC Control |
| Table size | 52" x 18" |
| Maximum Weight on Table | 3,500 lbs. |
| X-Axis Travel | 50" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 0 - 10,000 RPM |
| Spindle Motor | 20 HP - 2 Speed Geared |
| Spindle Nose to Table Top | 4" - 29" |
| Number of Tool Positions | 24 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 5" / 13" / 12 lbs. |
| Rapid Traverse Rates | 1000 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions | 122" x 95" x 100" |
| Machine Weight | 13,300 lbs. |
