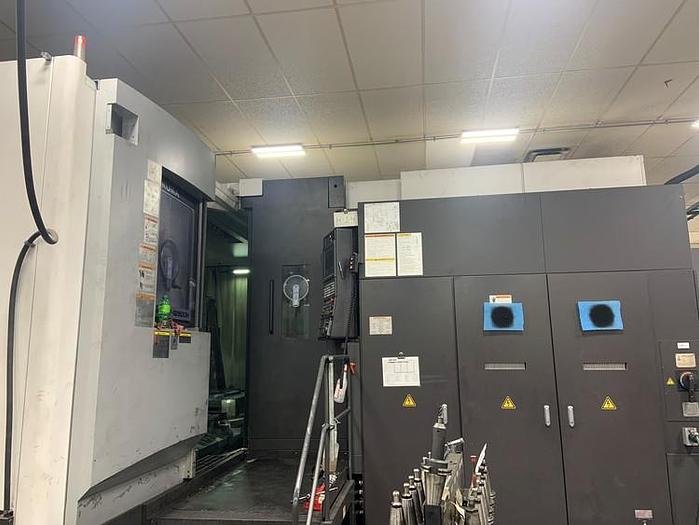

2014 Okuma MA-12500H
2014 Okuma MA-12500H
$479,500 (USD)
Location:Illinois
orCall (863) 439-6066
Description
2 Pallet Changer System
Hydraulic Clamping 174 Position Tool Changer Coolant Through the Spindle
Shower Coolant Full 4th Axis Rotary Table Renishaw RMP60 Part Probing System
Chip Conveyor
Chip Auger System ABSO Scales
Collision Avoidance System
Super Nurbs
Turn Cut Function RS-232 Port Interface
3.5" Floppy Disk Interface Rigid Tapping Hand Held Manual Pulse Generator All Available Manuals
**Delivered New in 2018**
**Power On Hours 19,165**
**Cycle Hours 9,066**
**Spindle Hours 5,899**
Specifications
| Manufacturer | Okuma |
| Model | MA-12500H |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119181 |

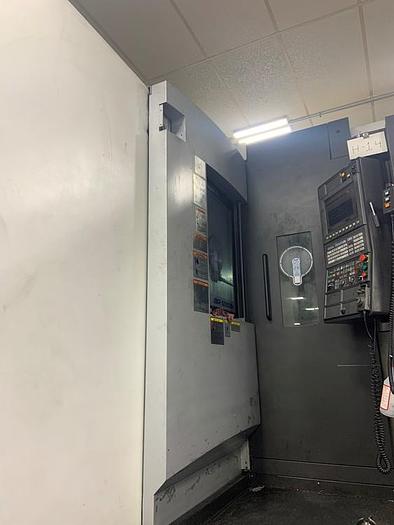

| Control | Okuma OSP-300M Touch Screen Control |

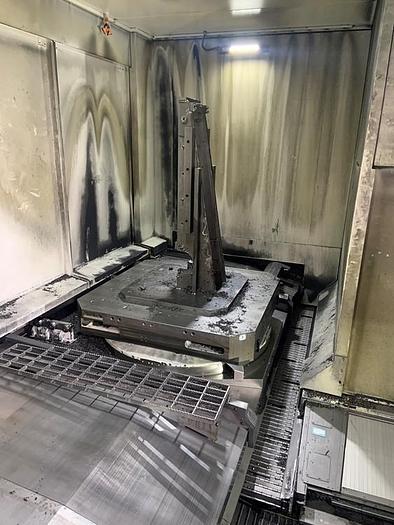

| Pallet size / number of pallets | 49" x 49" / 2 Pallets |
| Maximum load on pallet | 11,000 lbs. |
| Pallet indexing | .001 Degree Full 4th |
| Maximum Part Size D x H | 78.72" x 62.99" |
| X-axis travel | 86.61" |
| Y-axis travel | 62.99" |
| Z-axis travel | 64.96" |
| Maximum Distance Spindle Center to Pallet Surface | 64.96" |
| Maximum Distance Spindle End to Pallet Center | 73.82" |
| Spindle taper | CAT #50 Taper |
| Spindle speeds | 35 - 8,000 RPM |
| Spindle motor | 60 HP |

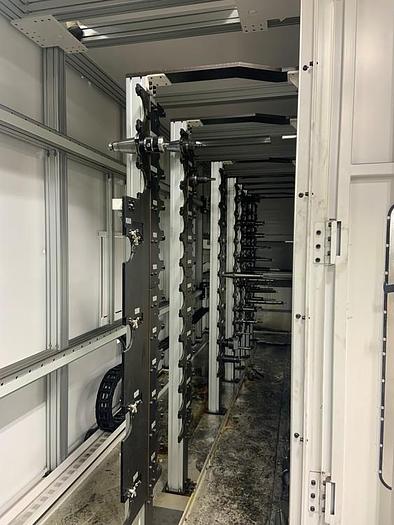

| Tool magazine capacity | 174 Position ATC |
| Maximum tool diam./length/weight | 4.925"/25.6"/66 lbs. |
| Tool change time (tool-to-tool / chip-to-chip | 3 Sec. / 7 Sec. |
| Rapid traverse rates (x,y,z) | 1,653 IPM |
| Machine dimensions | 194" x 345" x 150" approx. |
| Machine weight | 126,104 lbs. approx. |
